22

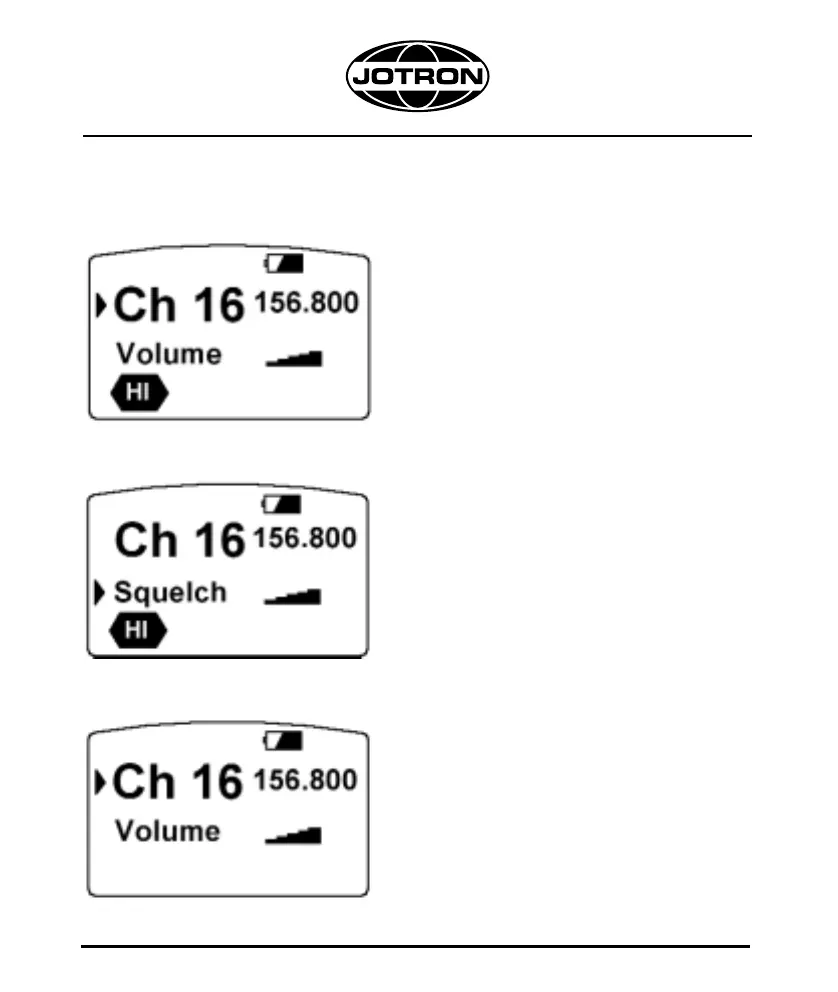

4.2 FUNCTION KEYS
Channel selection - CH
To select the working channel, press the
button «CH»(4). The channel is selected by
p pressing the arrow buttons (2&9).
Squelch - SQ
To adjust the squelch level, press the button
«SQ»(10). The level is adjusted by pressing
the arrow buttons (2&9), and the display
gives a graphical indication of the level.
High and low output - Hi/Lo
The «Hi/Lo»(5) button select between high
and low output. When high output is select
ed «HI» is indicated on the display. When
low output is selected there is no indication
on the display.
