Dear customer,
thank you for choosing our product. In the following, we will show you what
to pay attention to during commissioning and use. If you encounter any
unexpected problems, please feel free to contact us.
The new Joy-IT oscilloscope set DSO-138-Mini is the improved successor
of the DSO-138, which is the ideal complement to the multimeter and can
also be used mobile with the help of an optionally available battery. The
DSO-138-Mini is ideal for ambitious tinkerers, because it allows you to
measure and evaluate time-dependent signals without having to invest in
more expensive hardware. Our device has all the basic functions of a digital
storage oscilloscope, including: automatic/manual trigger mode, single-
shot recording with signal analysis and restoring stored signal waveforms.
1. GENERAL INFORMATION
2. OVERVIEW
Number of channels 1
Analog bandwith 0 - 200 kHz
Sensitivity range 10 mV/div - 5 V/div
Resolution 12 bit
Maximum input voltage 50 VPk
Coupling DC, AC, GND
Max. real-time sampling rate 1 MSa/s
Trigger types Rising/falling edge
Sensitivity deviation <5 %
Input impedance 1 MΩ
Timebase 10 µs/Div - 500 s/Div
Record length 1024 Points
Trigger modes Auto, Normal, Single
Trigger position 1/2
Display 2,4" TFT LCD - 320x240
Voltage & power supply 3.5 V - 6 V DC, 120 mA @5 V

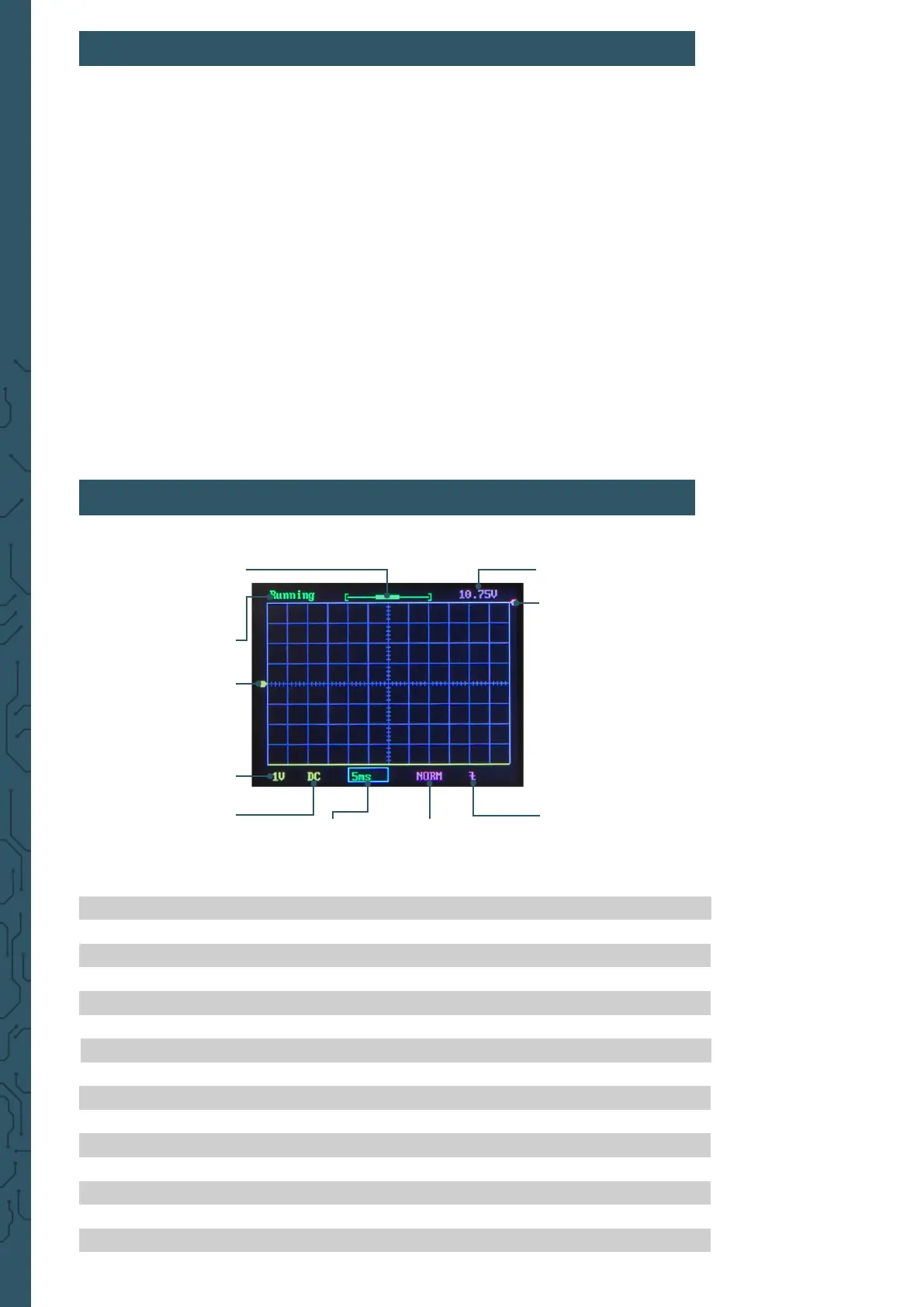

Trigger status
Trigger indicator
Rising/falling edge
Trigger modeTimebase
Coupling
Sensitivity
Vertical indicator
Active mode
Horizontal indicator
