As soon as the device is supplied with voltage, it starts up automatically.

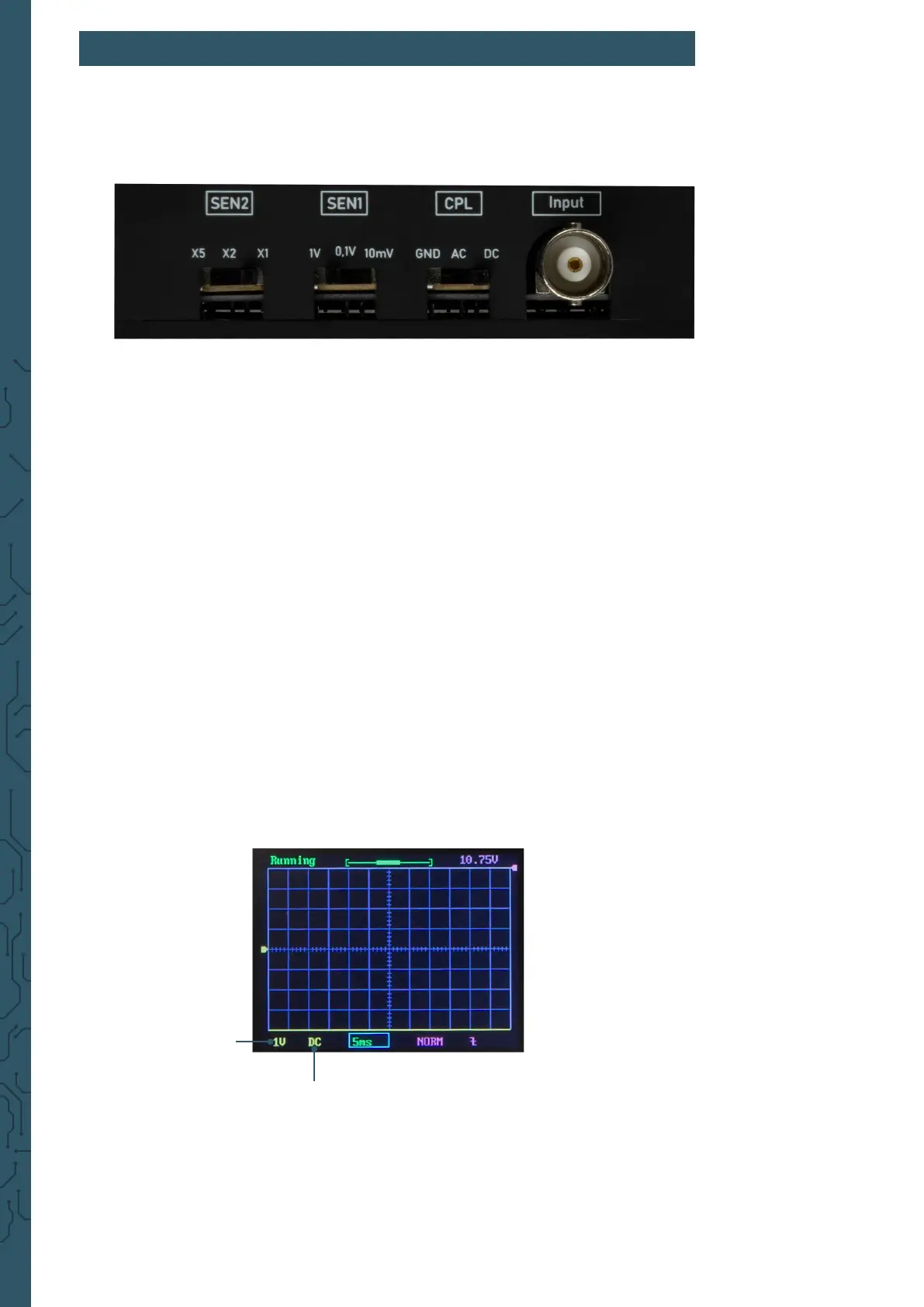

The sensitivity and the coupling can be adjusted via the switches next to
the signal input:
CPL: INPUT COUPLING
Here the coupling mode can be set to DC, AC or ground. With DC coupling,
all components of the input signal are displayed. With AC coupling, the DC
portion of the signal is suppressed and the signal is displayed centered at
the vertical ground reference.
With GND coupling, all components are ltered to display the zero line.
SEN1: SENSITIVITY
The sensitivity can be set between 10 mV, 0.1 V and 1 V. The sensitivity here
indicates the vertical scale.
SEN2: SENSITIVITY (MULTIPLICATOR)
An additional multiplier for the sensitivity between X1, X2 and X5 can be set
here. The multiplier can be used to reduce the signal in order to display a
larger section on the screen.
The coupling and the sensitivity are additionally also shown on the display:
4. CONFIGURATION
Coupling
Sensitivity
(SEN1 x SEN2)
