• RELEASE THE GEAR WITH THE KEY (SEE MANUAL OPERATION) AND PUSH
THE SLIDING GATE MANUALLY TO PRE-DETERMINE THE POSITION.

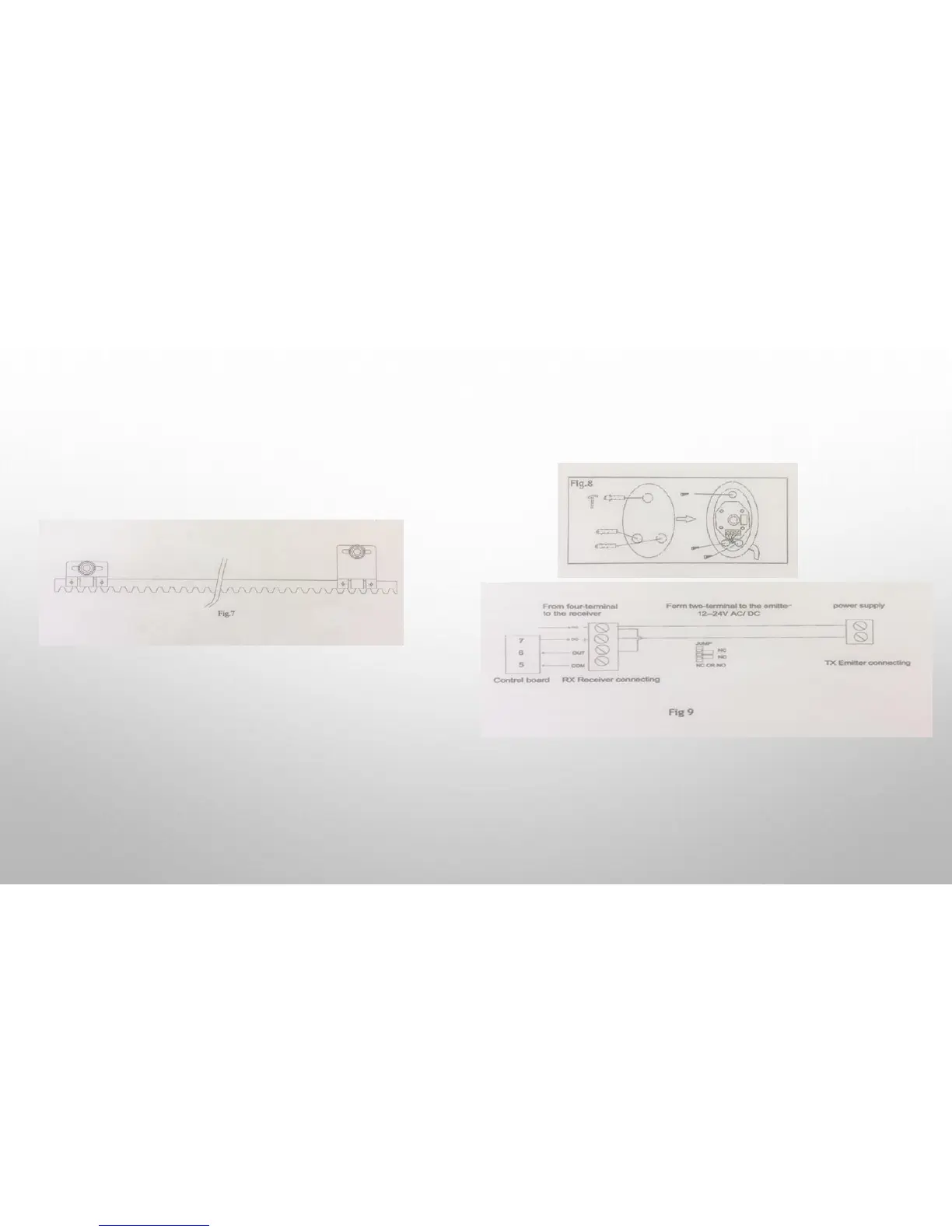

• ATTACH THE BLOCK WITH THE RAIL AT THE SIDES WITH SCREW (3) (FIG
7) AND LOCK THE GEAR AGAIN.
• MOVE THE GATE ELECTRICALLY, ADJUST THE BLOCK TO THE PROPER
POSITION UNTIL THE POSITION OF THE OPENING AND CLOSING ARE
AS YOU WISHED.
INSTALLATION OF THE INFRARED SENSOR
THE INFRARED SENSOR IS USED TO CHECK FOR ANY MOVEMENT AROUND
THE GATE WHEN OPENING AND CLOSING. IF INFRARED RAY IS INTERRUPTED,
THE GATE OPERATOR WILL IMMEDIATELY REVERSE AND RUN THE OTHER
DIRECTION. THIS FEATURE DOES NOT WORK IF THE GATE IS FULLY OPENED
AND CLOSED.
• THE INSTALLATION HEIGHT SHOULD BE 20CM AND THE DISTANCE SHOULD
NOT BE SMALLER THAN 2 METERS.
• AT FIRST, ATTACH THE RECEIVER OF THE INFRARED SENSOR PERPENDICULAR
TO THE WALL WITH SCREWS. THE CONNECTION KNOW SHOULD BELOW
(FIG 8).
• THEN ATTACH THE EMITTER OF THE INFRARED SENSOR ON THE OTHER SIDE.
THE CONNECTION KNOW SHOULD ALSO BE BELOW.
• MAKE SURE THE RECEIVED AND THE EMITTER ARE ON THE SAME LEVEL.
• CONNECT THE RECEIVER AND THE EMITTER WITH CABLES ACCORDING TO
FIG 9.
WARNING
1. THE INFRARED SENSOR DOES NOT WORK IF THE DISTANCE BETWEEN
RECEIVER AND THE EMITTER IS SMALLER THAN 2 METERS.
2. DUST WILL AFFECT THE RECEPTION OF INFRARED SENSOR. PLEASE
REGULARLY CLEAN THE INFRARED SENSOR.
