WARNING
MAKE SURE THAT THE POWER IS OFF BEFORE MAKING ANY ELECTRICAL
CONNECTIONS. REMOVE THE COVER OF OPERATOR AND OPEN THE
CONTROL BOARD.

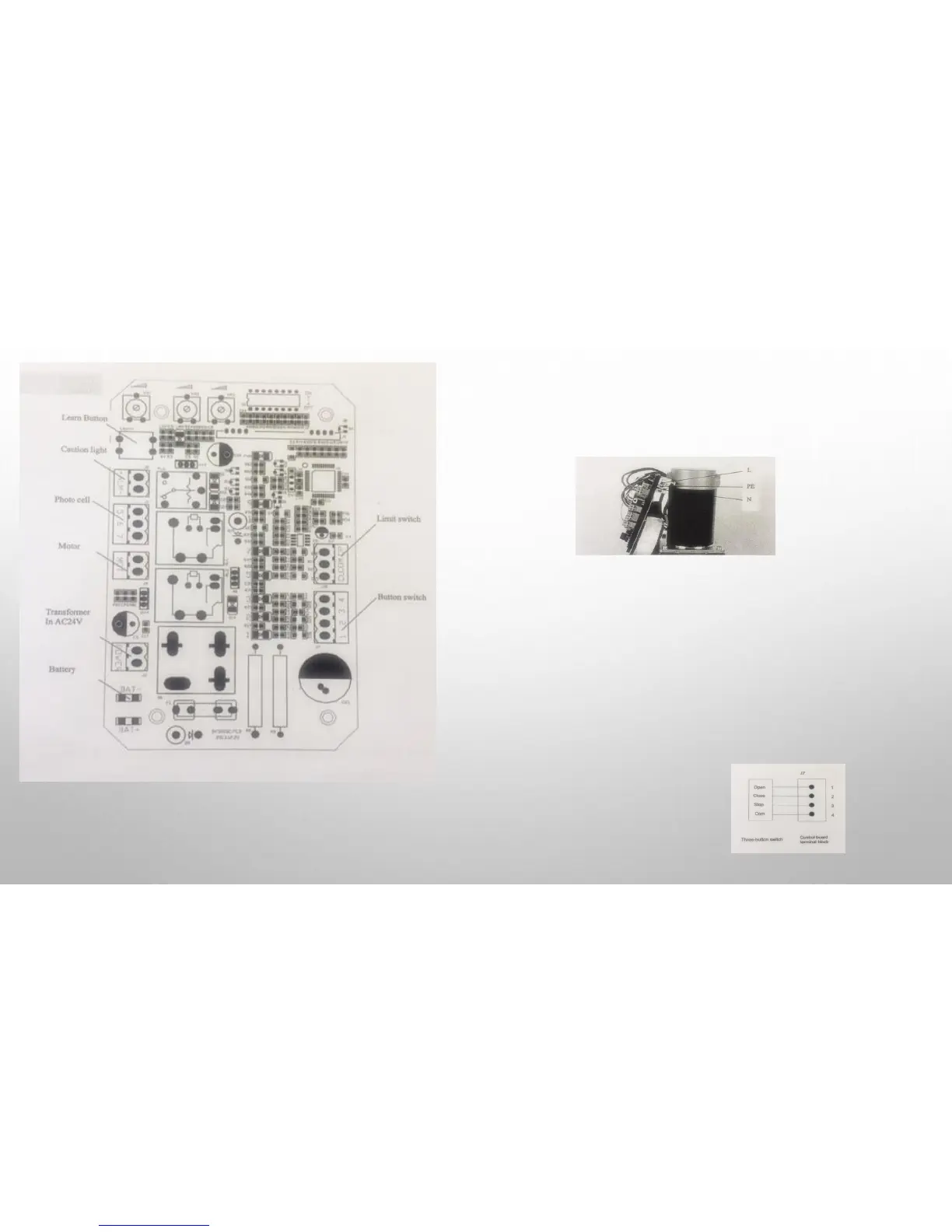

POWER INPUT CONNECTION
POWER INPUT: L (LIVE), N (NEUTRAL) (AC220V) SEE THE FOLLOWING PICTURE.
THE GATE OPENER MUST BE GROUNDED. YOU WILL FIND THE EARTH
CONNECTOR ON THE BASE PLATE.
INFRARED SENSOR CONNECTION
THE INFRARED SENSOR CONNECTION PLEASE SEE FIG 9.
VERIFY THE OPENING DIRECTION
IF THE GATE DOES NOT MOVE IN THE DESIRED DIRECTION, THEN YOU WILL NEED TO REVERSE THE
MOTOR OPERATING DIRECTION BY EXCHANGE RED AND BLACK WIRES AND MOT TERMINAL J4, AND
EXCHANGE OP AND CL OF TERMINAL J10
CAUTION LIGHT CONNECTION
CONNECT CAUTION LIGHT WIRE TO ‘ALM’ IN TERMINAL J8
SINGLE BUTTON SWITCH / THREE BUTTON SWITCH CONNECTION
CONNECT OPEN WIRE OF THREE-BUTTON SWITCH TO TERMINAL J7, THE OPEN WIRE OF THE SWITCH
TO 1 OF J7, THE CLOSE WIRE OF THE SWITCH TO 2 OF J7, THE STOP WIRE OF THE SWITCH TO 3 OF J7,
AND THE COMMON WIRE OF THE SWITCH TO 4 OF J7.
