FAA Approved Installation Manual for the Report No 908
EDM-900 and EDM-930 Page 27 of 55 Rev I
Primary Engine Data Management System Date 1-18-2013
1 and 2 again until the display (5 sec.) changes and you see FACTORY . At this point you will see MAIN = XX.,
adjust with the “Plus and Minus buttons. Tap next for AUX=XX and adjust. Tap button twice to finish and save.
34. GPS Interface
Use the J4 connector harness 790708 labeled RS232 OUT TO GPS (white) and RS232 IN FROM GPS (gray).
Refer to the Manufactures GPS manual for the required pin connections on the GPS.

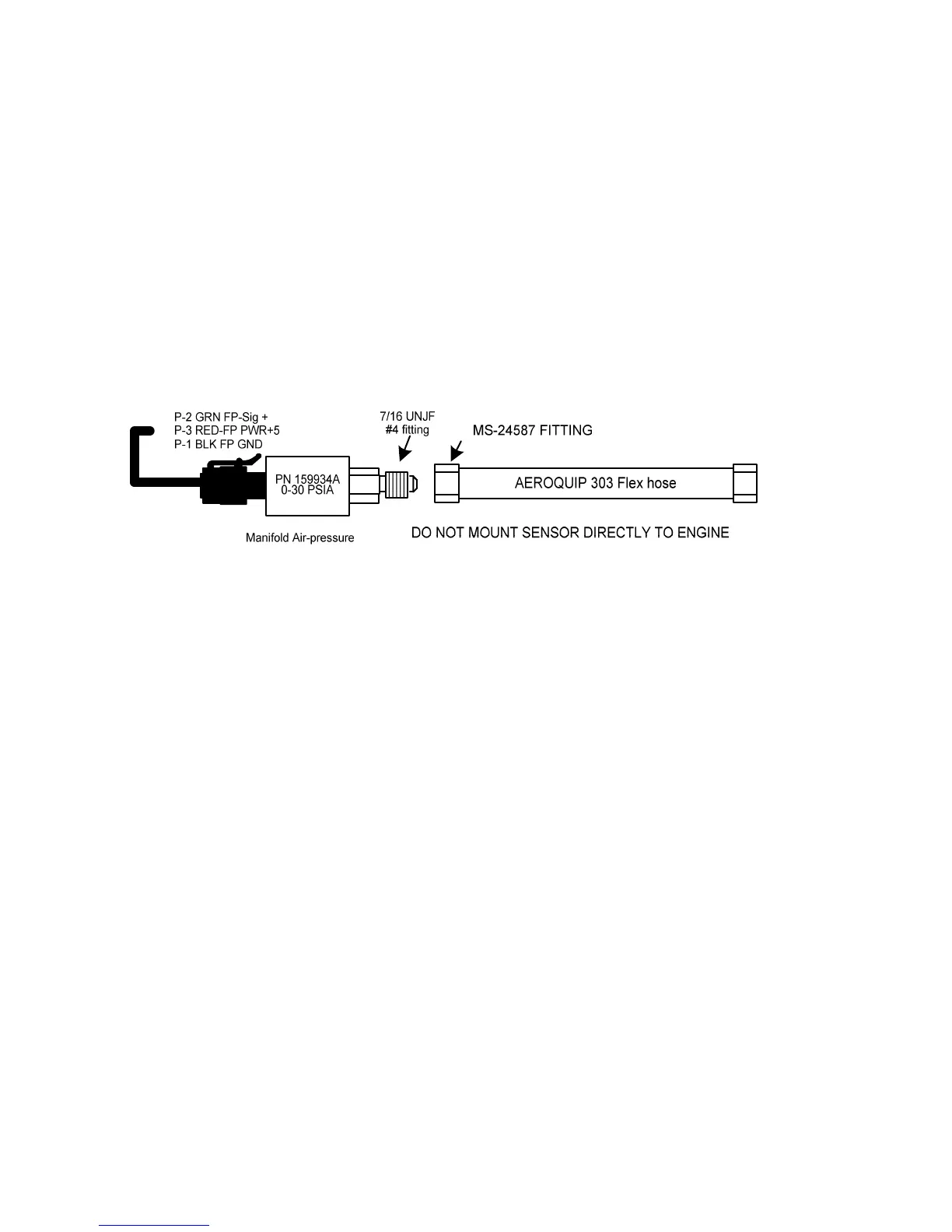

35. Manifold Pressure (MAP) Sensor
