FAA Approved Installation Manual for the Report No 908
EDM-900 and EDM-930 Page 40 of 55 Rev I
Primary Engine Data Management System Date 1-18-2013
49. Connector Pin Assignments on EDM, J1 through J5

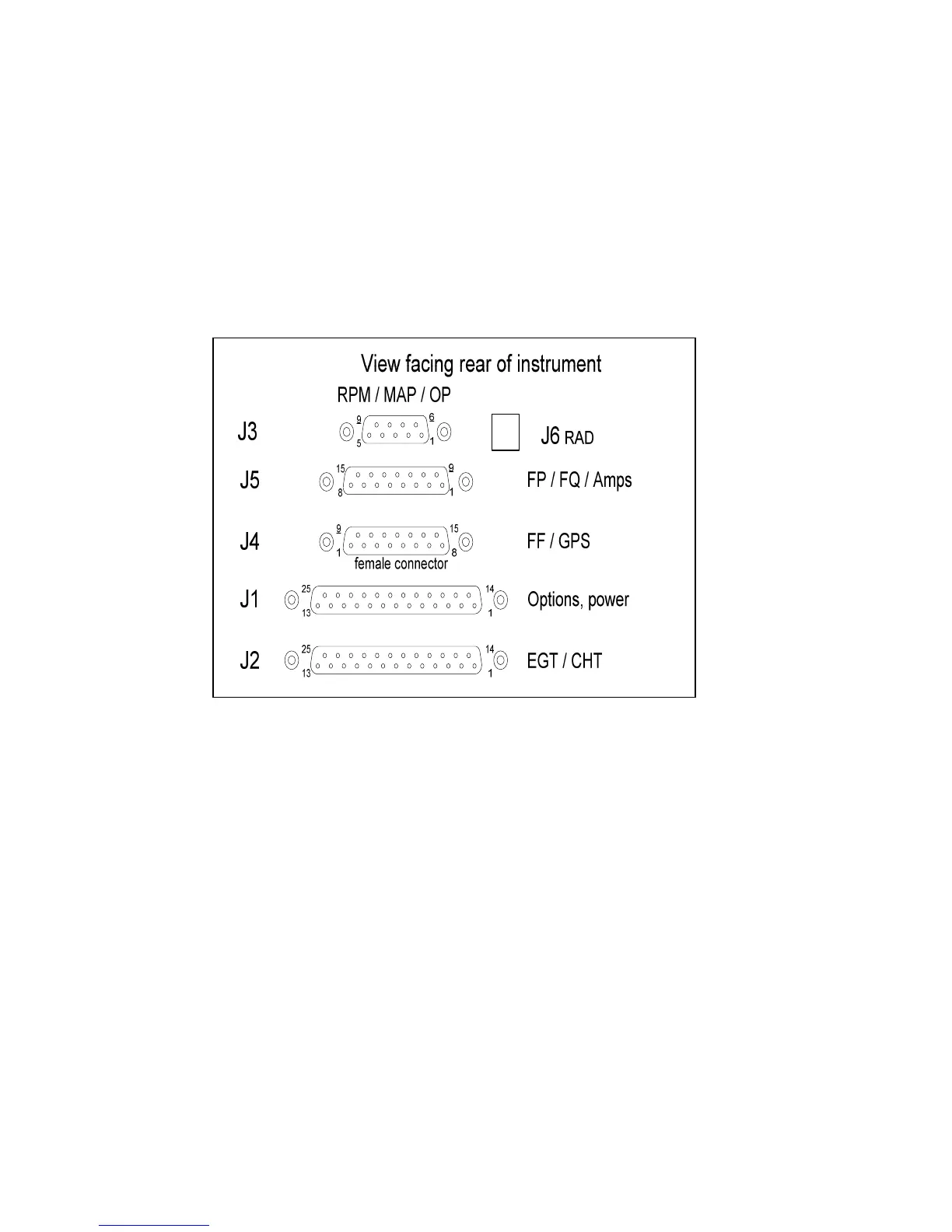

Rear view of EDM 930 Showing Connector Locations
