YDFLP-E-20/30-M7 User Manual
File Number: J-SI-0036
10
3. Laser Interface
3.1 Power Supply Connector
The length of standard power cord for laser is around 1250mm. Please refer to Figure 12 &
Table 6 in below to install the power cable to the 24V DC power supply，and ensure the DC
power supply can provide enough output power. Please also note the polarity of the cable when
connecting.

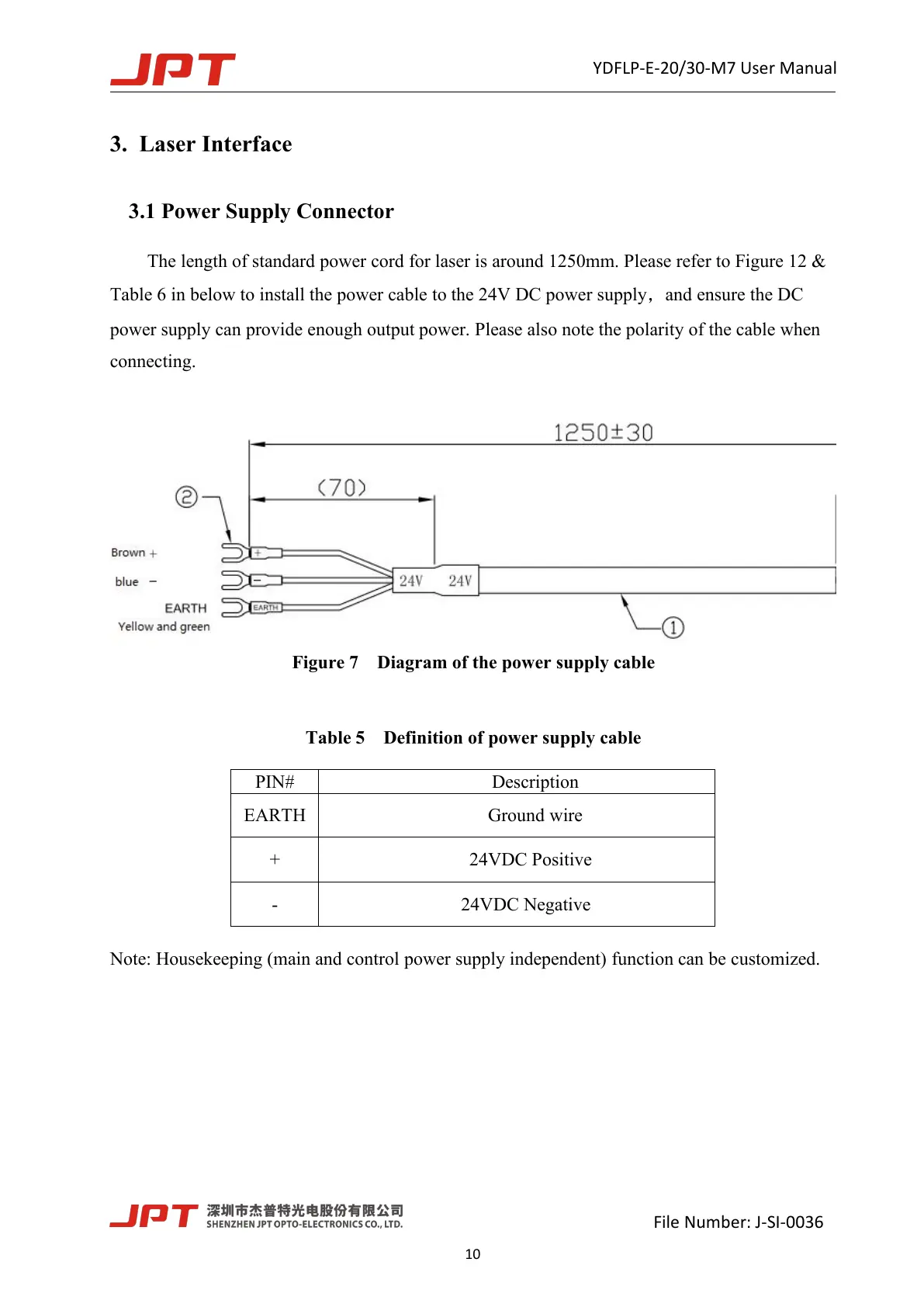

Figure 7 Diagram of the power supply cable
Table 5 Definition of power supply cable
PIN#
Description
EARTH
Ground wire
+
24VDC Positive
-
24VDC Negative
Note: Housekeeping (main and control power supply independent) function can be customized.
