1. Product Introduction
1.1 Product Description
JPT M7 Series fiber laser control with standard DB25 interface and powered with 24V DC.
It is designed for high-speed and precise marking application. The pulse response and
performance are much better comparing to similar products. Significantly compact size is ideal
for small marking system.
Photographs of typical M7 type fiber lasers are shown in Fig.2 ( For the specific appearance,
please refer to the appearance of the product shipped):

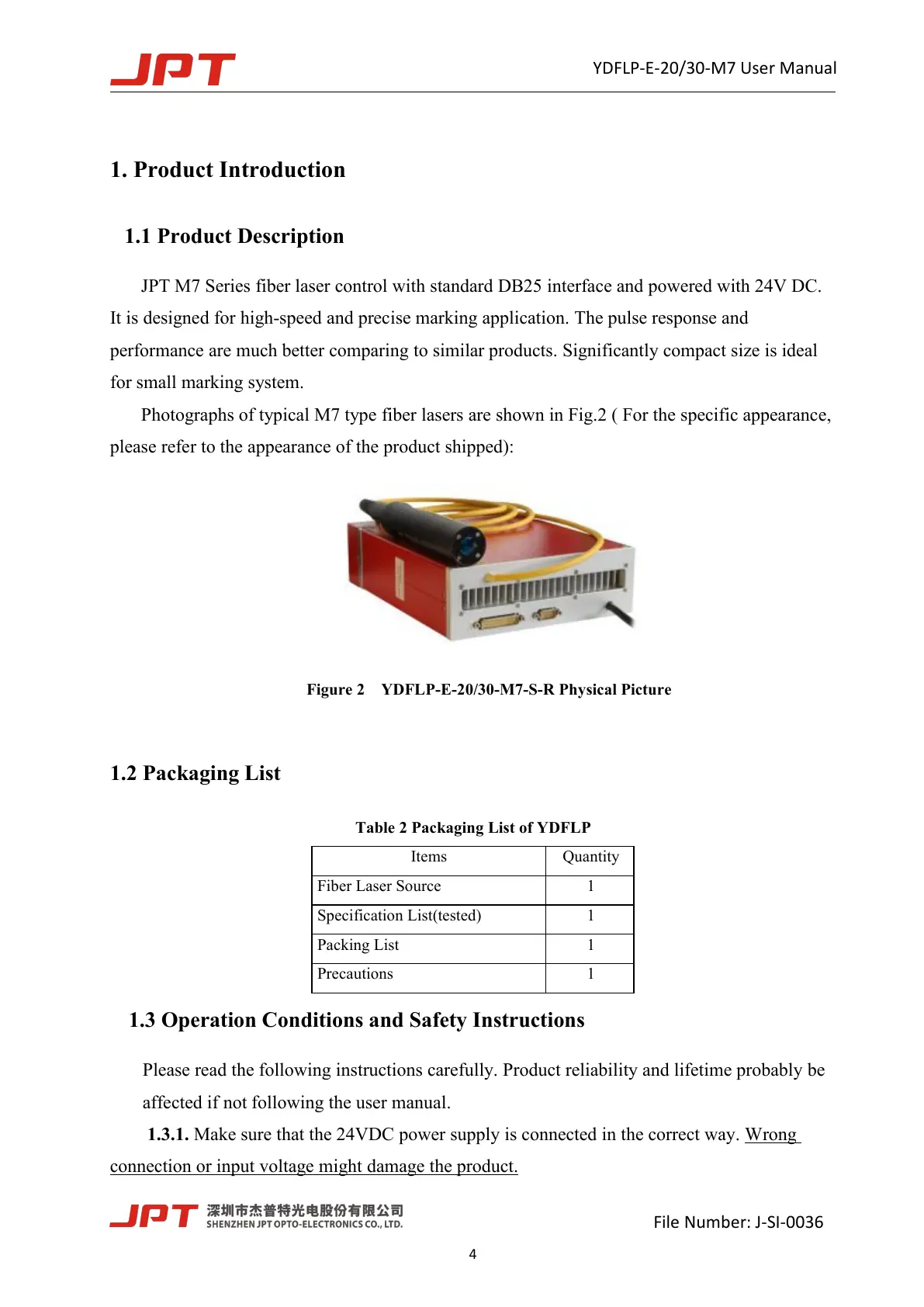

Figure 2 YDFLP-E-20/30-M7-S-R Physical Picture
1.2 Packaging List
Table 2 Packaging List of YDFLP
Items
Quantity
Fiber Laser Source
1
Specification List(tested)
1
Packing List
1
Precautions
1
1.3 Operation Conditions and Safety Instructions
Please read the following instructions carefully. Product reliability and lifetime probably be
affected if not following the user manual.
1.3.1. Make sure that the 24VDC power supply is connected in the correct way. Wrong
connection or input voltage might damage the product.

JPT YDFLP-E-20-M7-S-R Specifications

General

Brand	JPT
Model	YDFLP-E-20-M7-S-R
Category	Measuring Instruments
Language	English
