JPT YDFLP-E-20-M7-S-R User Manual

YDFLP-E-20/30-M7 User Manual
File Number: J-SI-0036
6
R: Built-in red pilot laser
Examples
：
YDFLP-200-M7-H-R: Customized M7, using high mode type of optical fiber with the nominal
output power 200W, built-in red pilot laser.
1.5 Technical Specifications

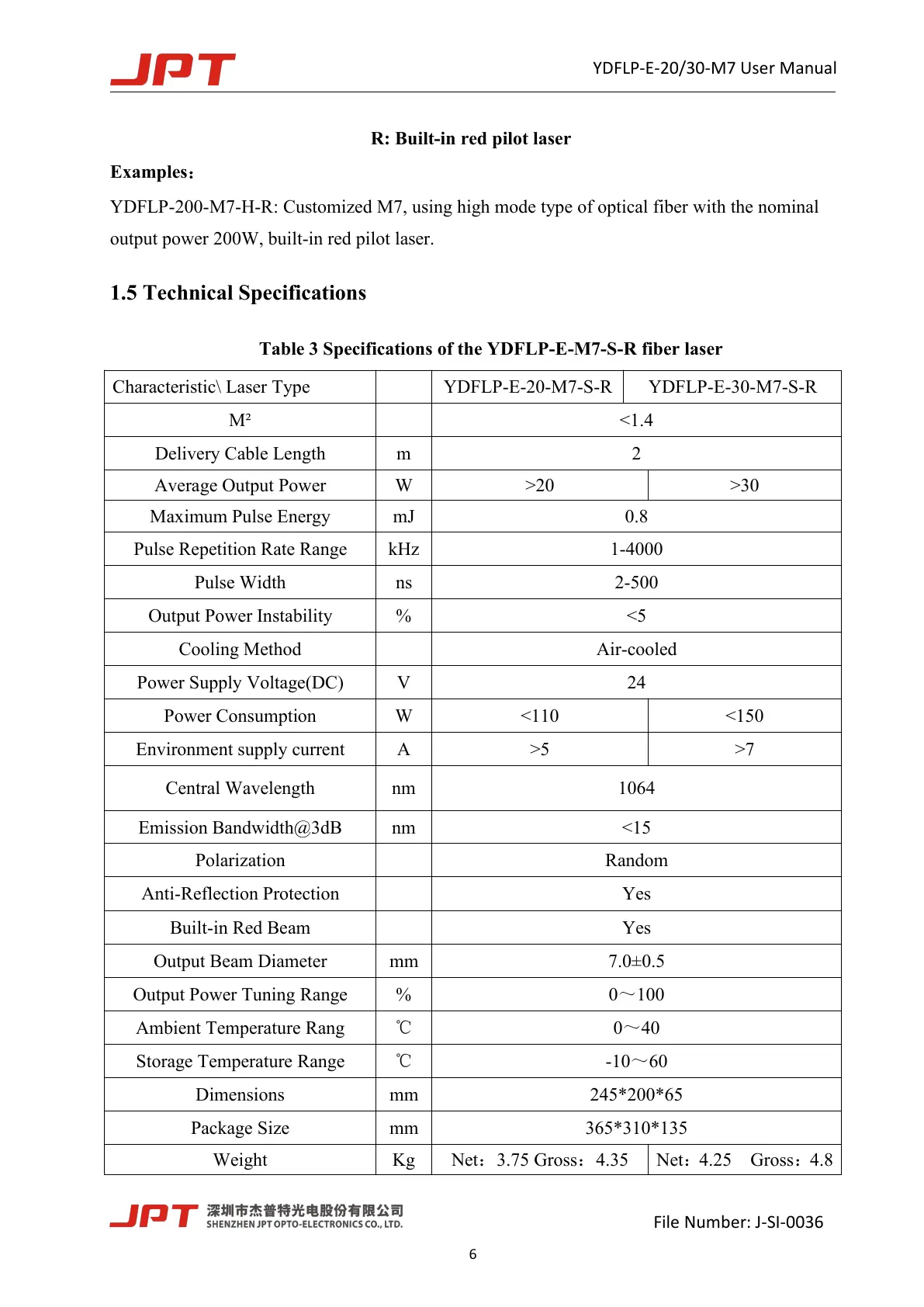

Table 3 Specifications of the YDFLP-E-M7-S-R fiber laser
Characteristic\ Laser Type
YDFLP-E-20-M7-S-R
YDFLP-E-30-M7-S-R
M²
<1.4
Delivery Cable Length
m
2
Average Output Power
W
>20
>30
Maximum Pulse Energy
mJ
0.8
Pulse Repetition Rate Range
kHz
1-4000
Pulse Width
ns
2-500
Output Power Instability
%
<5
Cooling Method
Air-cooled
Power Supply Voltage(DC)
V
24
Power Consumption
W
<110
<150
Environment supply current
A
>5
>7
Central Wavelength
nm
1064
Emission Bandwidth@3dB
nm
<15
Polarization
Random
Anti-Reflection Protection
Yes
Built-in Red Beam
Yes
Output Beam Diameter
mm
7.0±0.5
Output Power Tuning Range
%
0～100
Ambient Temperature Rang
℃
0～40
Storage Temperature Range
℃
-10
～
60
Dimensions
mm
245*200*65
Package Size
mm
365*310*135
Weight
Kg
Net
：
3.75 Gross
：
4.35
Net
：
4.25 Gross
：
4.8
