YDFLP-E-60-M7-M-R User Manual

7 File Number: S-PI-0035

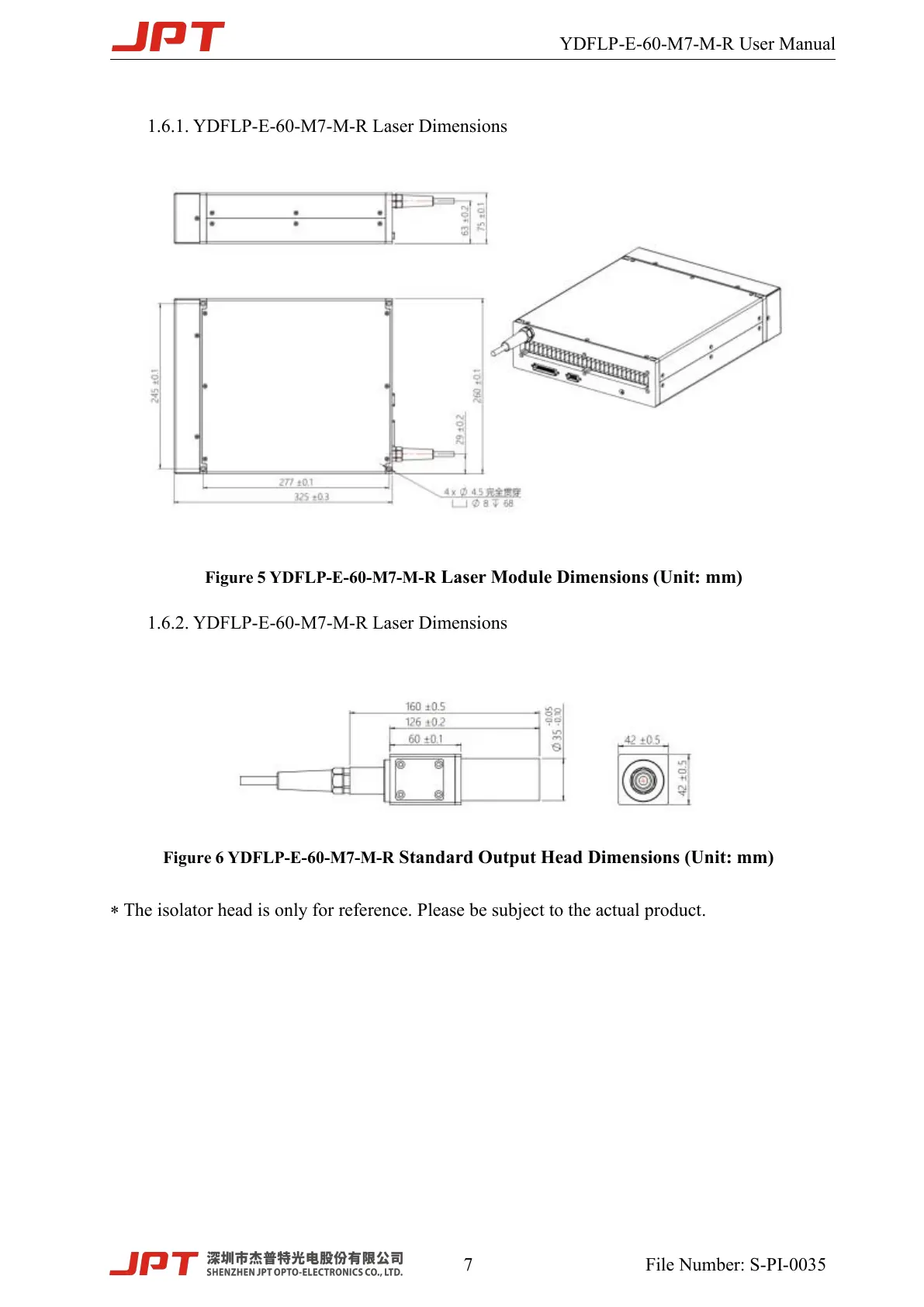

1.6.1. YDFLP-E-60-M7-M-R Laser Dimensions

Figure 5 YDFLP-E-60-M7-M-R Laser Module Dimensions (Unit: mm)

1.6.2. YDFLP-E-60-M7-M-R Laser Dimensions

Figure 6 YDFLP-E-60-M7-M-R Standard Output Head Dimensions (Unit: mm)

 The isolator head is only for reference. Please be subject to the actual product.
