2. Laser Interface
2.1 Power Supply Connector

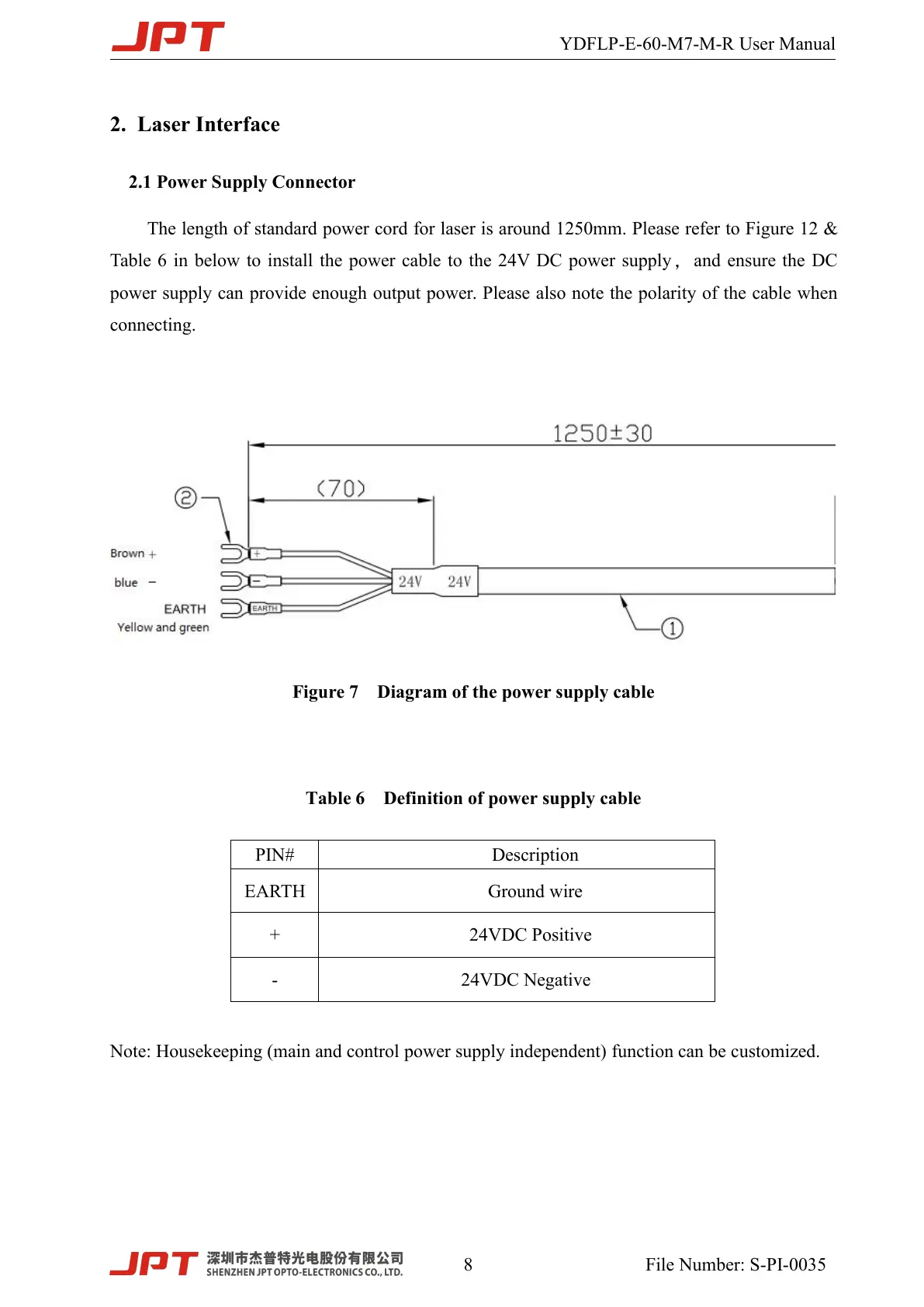

The length of standard power cord for laser is around 1250mm. Please refer to Figure 12 &
Table 6 in below to install the power cable to the 24V DC power supply
，
and ensure the DC
power supply can provide enough output power. Please also note the polarity of the cable when
connecting.
Figure 7 Diagram of the power supply cable
Table 6 Definition of power supply cable
PIN#
Description
EARTH
Ground wire
+
24VDC Positive
-
24VDC Negative
Note: Housekeeping (main and control power supply independent) function can be customized.
