YDFLP-E-60-M7-M-R User Manual
1 File Number: S-PI-0034

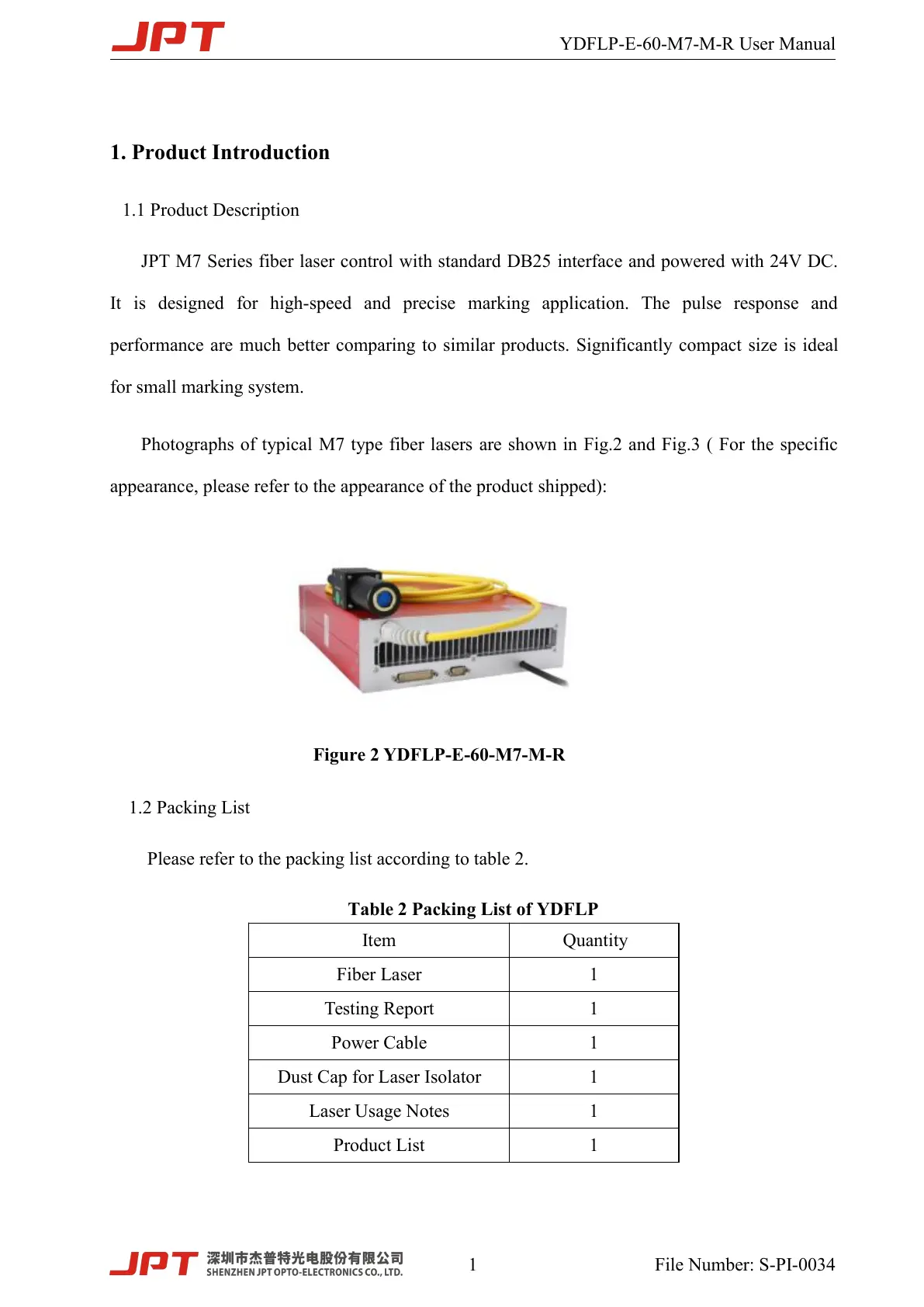

1. Product Introduction
1.1 Product Description
JPT M7 Series fiber laser control with standard DB25 interface and powered with 24V DC.
It is designed for high-speed and precise marking application. The pulse response and
performance are much better comparing to similar products. Significantly compact size is ideal
for small marking system.
Photographs of typical M7 type fiber lasers are shown in Fig.2 and Fig.3 ( For the specific
appearance, please refer to the appearance of the product shipped):
Figure 2 YDFLP-E-60-M7-M-R
1.2 Packing List
Please refer to the packing list according to table 2.
Table 2 Packing List of YDFLP
Item
Quantity
Fiber Laser
1
Testing Report
1
Power Cable
1
Dust Cap for Laser Isolator
1
Laser Usage Notes
1
Product List
1
