JPT YDFLP-E-60-M7-M-R User Manual

YDFLP-E-60-M7-M-R User Manual
4 File Number: S-PI-0035

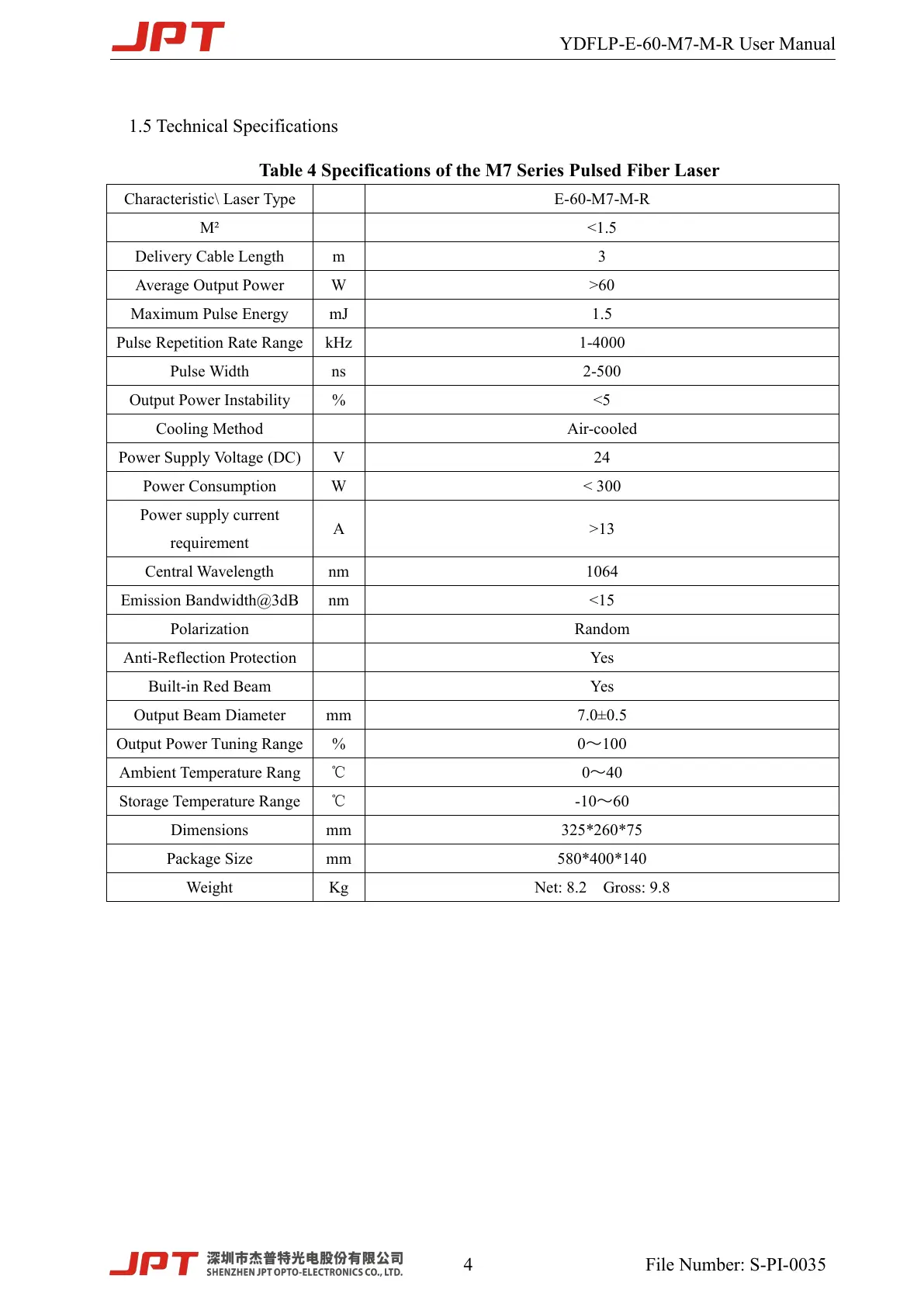

1.5 Technical Specifications
Table 4 Specifications of the M7 Series Pulsed Fiber Laser
Characteristic\ Laser Type
E-60-M7-M-R
M²
<1.5
Delivery Cable Length
m
3
Average Output Power
W
>60
Maximum Pulse Energy
mJ
1.5
Pulse Repetition Rate Range
kHz
1-4000
Pulse Width
ns
2-500
Output Power Instability
%
<5
Cooling Method
Air-cooled
Power Supply Voltage (DC)
V
24
Power Consumption
W
< 300
Power supply current
requirement
A
>13
Central Wavelength
nm
1064
Emission Bandwidth@3dB
nm
<15
Polarization
Random
Anti-Reflection Protection
Yes
Built-in Red Beam
Yes
Output Beam Diameter
mm
7.0±0.5
Output Power Tuning Range
%
0～100
Ambient Temperature Rang
℃
0～40
Storage Temperature Range
℃
-10～60
Dimensions
mm
325*260*75
Package Size
mm
580*400*140
Weight
Kg
Net: 8.2 Gross: 9.8
