21 General Section
Transfer a model to the PCM9X II – (Transfer function)
1. Hold the ENT button while plugging the trainer cord
into the back of the transmitter to obtain the SYSTEM
Menu. Plug the other end of the trainer cord into
another PCM9X II transmitter while holding the ENT
button and prepare that transmitter for Transmit as
described above. Or, plug the other end of the trainer
cord into a DataSafe unit and prepare the DataSafe
to transmit.

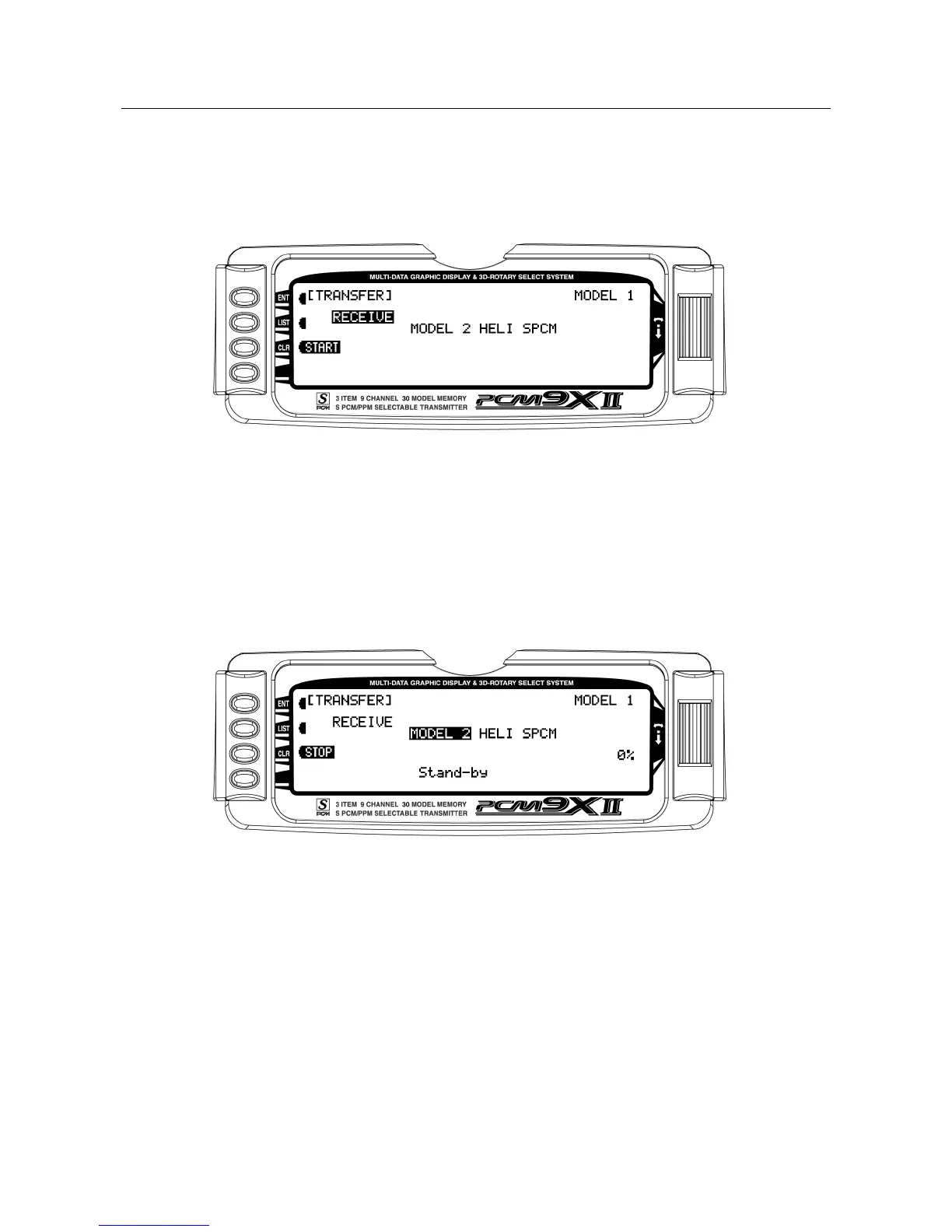

2. Highlight and select TRANSFER in the SYSTEM
Menu to obtain the Transfer display.
3. If RECEIVE is already displayed, continue with the
next step. If TRANSMIT is displayed, highlight and
select TRANSMIT, changing it to RECEIVE.
4. Select the model memory to receive the data by
highlighting and selecting the model name/memory
number and then scrolling to and selecting the model
memory that is to receive the data. Be careful to
select an unused model memory or a memory that
contains data for a model no longer needed because
the data in this model memory is going to be
replaced by what is transmitted and will be
permanently lost.
5. Press the CLR button next to START on the left side
of the display. Stand-by appears at the bottom of the
display indicating that the PCM9X II is ready to
receive data. Press start on the transmitting
PCM9X II or DataSafe unit to begin the data transfer
to the PCM9X II.
