2.Installation of Scanner Unit > 2.1 Equipment Cable
2-9
2) 2695110056, 2695111153

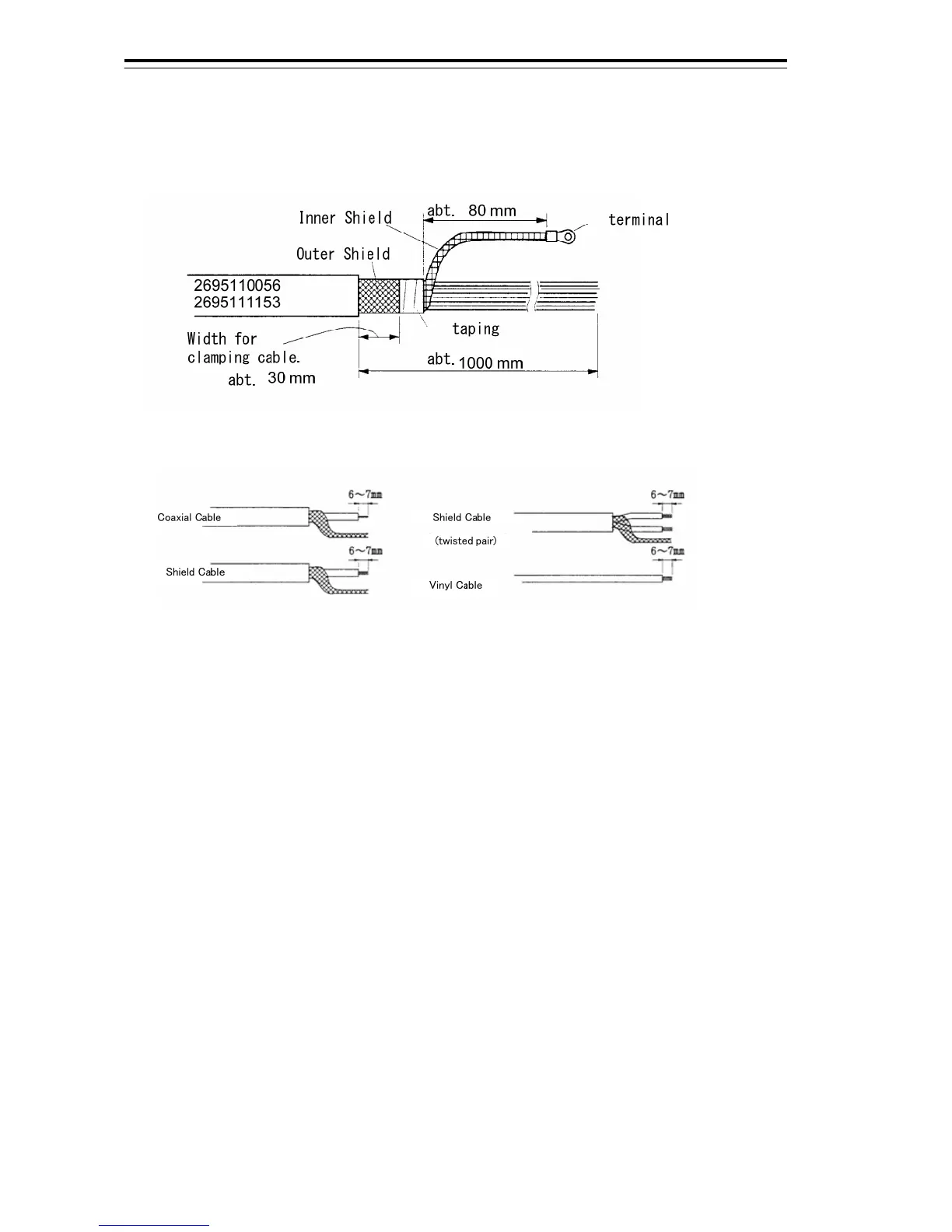

Remove about one meter of the outer skin, and then process the double braided shield according to the
procedures shown below.
Processing of braided shield (269511056, 2695111153)
End processing of each wire (269511056, 2695111153)
