2.Installation of Scanner Unit > 2.1 Equipment Cable
2-7
2.1.4 Cable end processing method
Allow for sufficient cable length so that maintenance, inspection, and repair work can be easily executed.
Ensure a place to store the cable.
1) CFQ-6912
Cut off the metal shell connector.

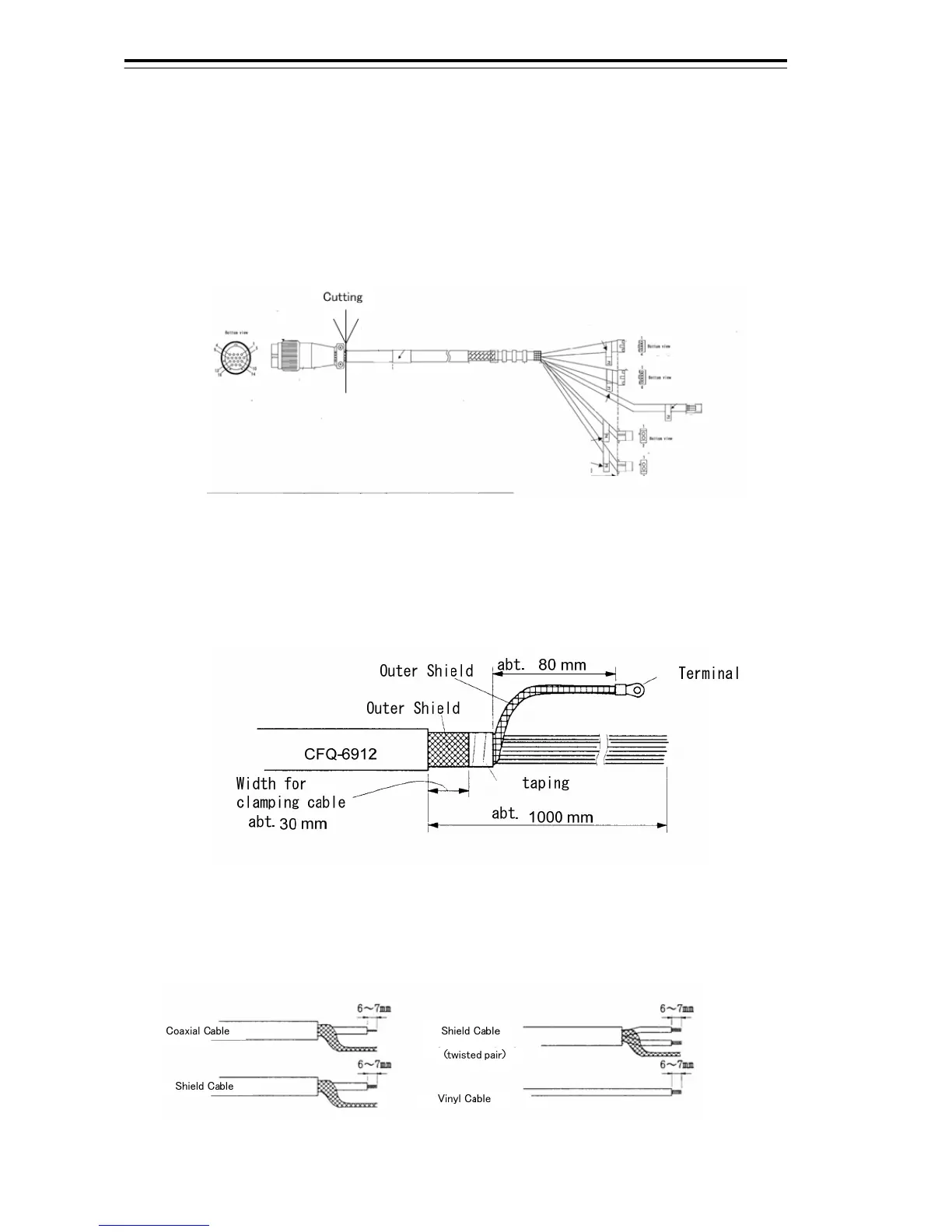

CFQ-6912 Cutting position
Remove about one meter of the outer skin, and then process the double braided shield according to the
procedures shown below.
CFQ-6912 Processing of braided shield
Process each cable end according to the procedures shown below.
CFQ-6912
End processing of each wire
