REMOTE DISPLAY NWW-58

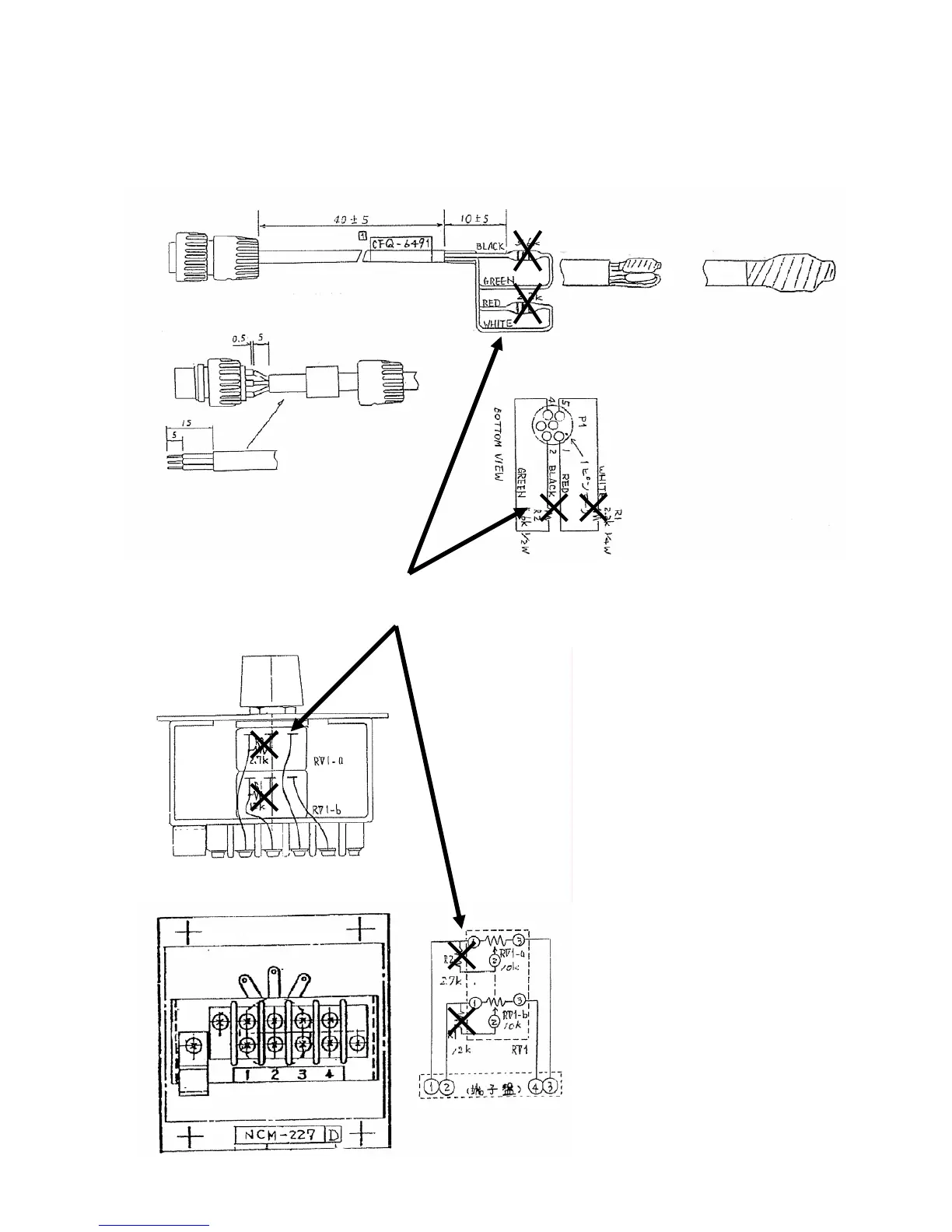

In case of panel and LCD dimmer are dark.

1. Internal dimmer



Cut and short the resistor.

2. External dimmr


