3.5 GENERAL OPERATIONS
3ņ60
3
y
y y
3.5.17 Operate EBL Maneuver Function (EBL Maneuver)
[I] Initial Setting (Reach,Turn Mode, Turn Set)
Procedure 1 Press [RADAR MENU] key.
Press [3] key.
Press [7] key.

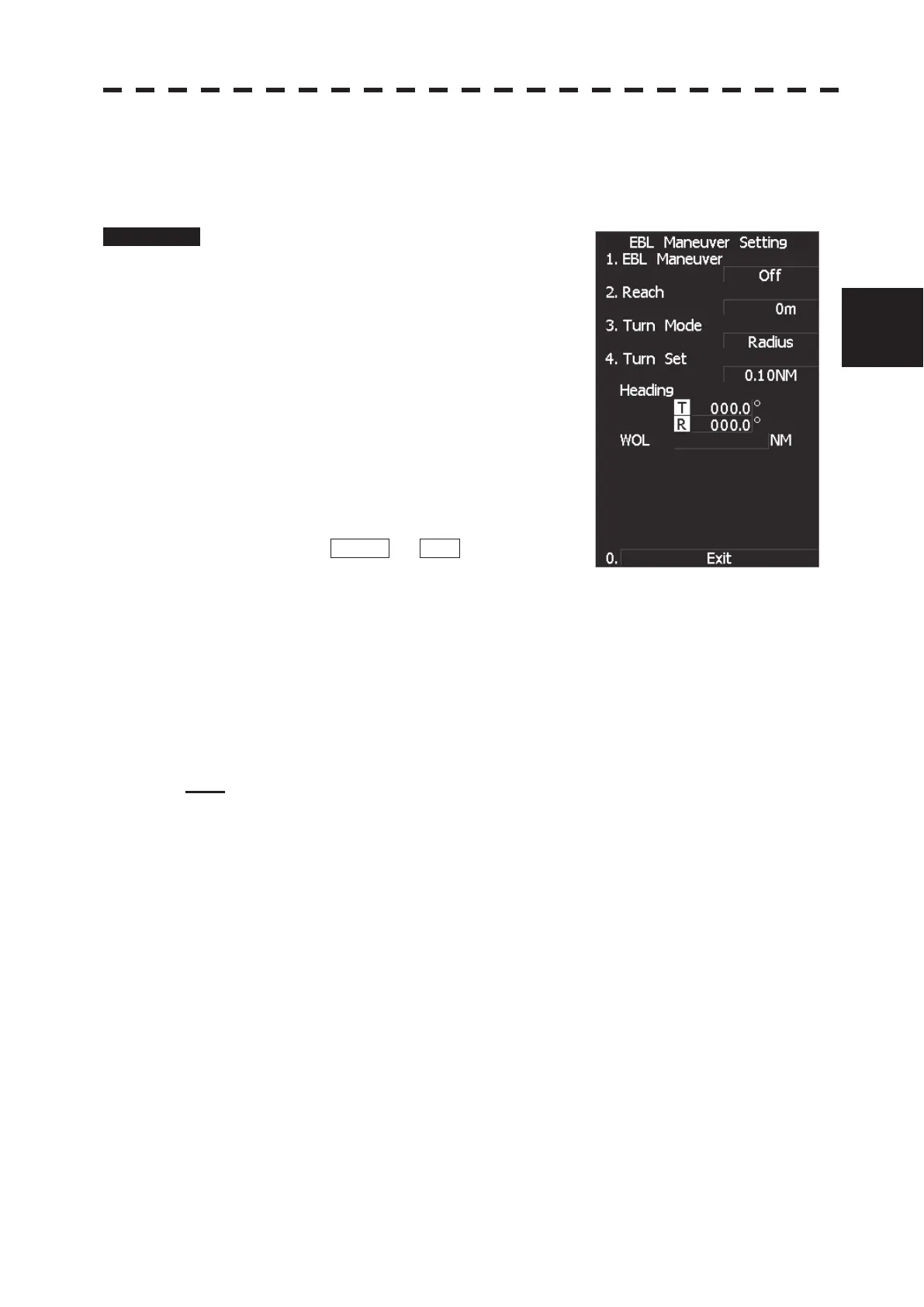

The EBL Maneuver Setting Menu will appear.
2 Press [2] key.
The CODE INPUT Menu will appear.
Enter the Reach value and select the software
button ENT.
3 Press [3] to select Turn Mode.
The setting of turn mode will be switched
between RADIUS and RATE.
RADIUS: Constant turn diameter (NM)
RATE: Constant turn speed (deg/min)
4 Press [4] key.
The CODE INPUT Menu will appear.
Enter the Turn Set value and select the software button ENT.
Note: If the initial setting is not correct, the maneuver curve is affected.
