7.1.6 Setting of CCRP/Antenna/GPS Antenna Position (CCRP Setting)
Set the own ship's CCRP location, radar antenna installation location, and GPS installation location.
GPS : Up to 4 locations can be inputted (select one through the receiving port setting when using the
GPS).
Radar antenna : 1 location can be inputted (one master and one slave).
CCRP : 1 location can be inputted (another location is reserved as an antenna location).
Procedure 1 Measure the CCRP, radar antenna, and
GPS antenna positions beforehand.
2 Hold down [RADAR MENU] key.
The Code Input Menu will appear.
3 Press [0] key.
4 Move the cursor onto the “ENT” button
in the Code Input menu, and press
[ENT] key.
The Adjust Menu will appear.

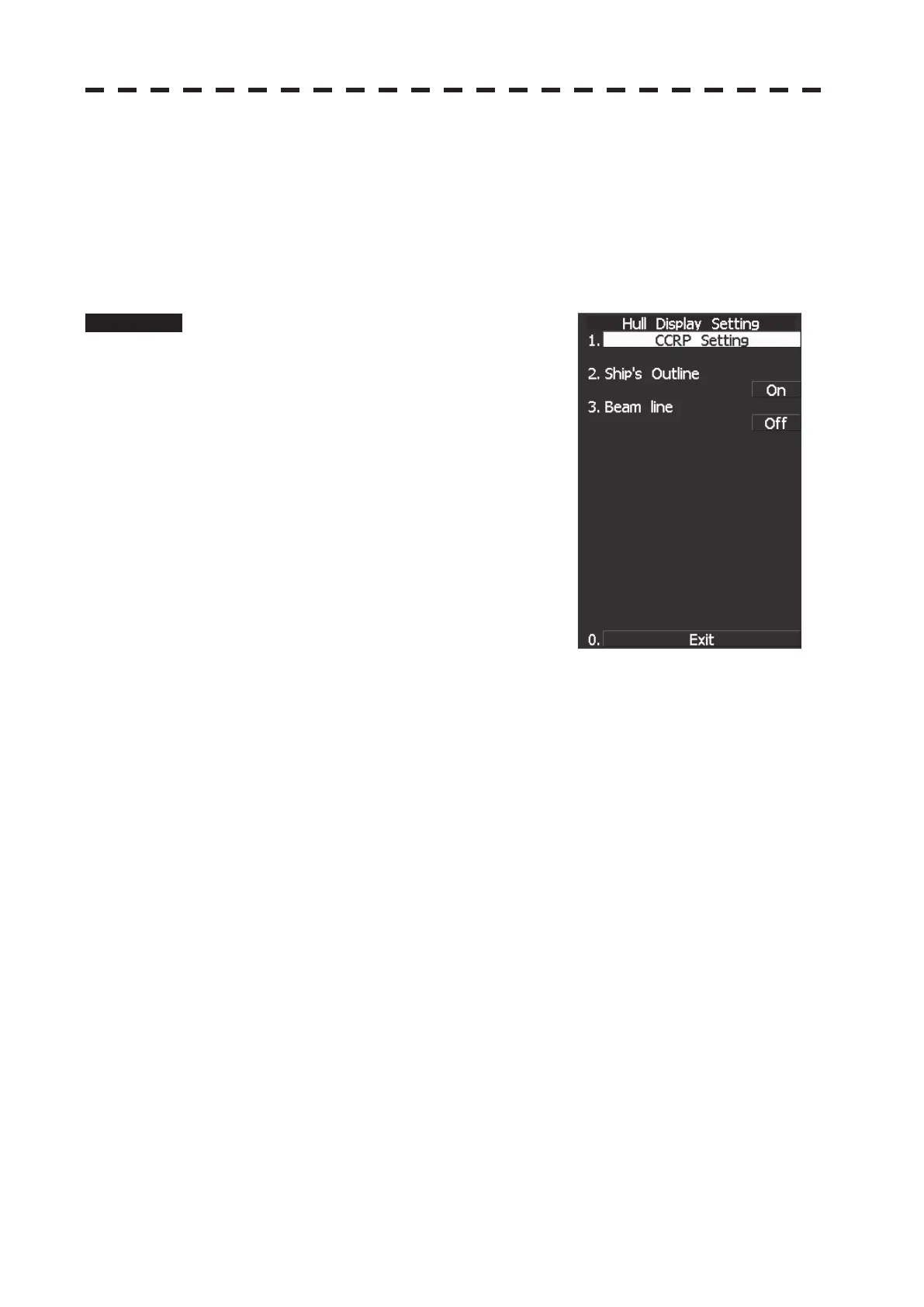

5 Press the following keys.
7 Hull Display Setting
1 CCRP Setting
6 Input the vessel length in the Length field and the vessel width in the
Beam field at the top right corner of the CCRP Setting screen.
7 Move the cursor to the X and Y values of CCRP1. Press the ENT key
and input the CCRP1 position.
CCRP is on the starboard side of the ship when X>0 and is on the port side of the ship
when X<0.
8 In the same manner, input the GPS antenna and radar antenna positions.
9 Press [0] key and exit the CCRP setting screen.
