8.4 REPLACEMENT OF MAJOR PARTS
ņ28
8
yyyy
yyyy
How to replace a 4kW antenna magnetron
Make sure that all radars are turned off before replacing the magnetron (if there are multiple radar devices, turn
them all off). It is also recommended that the breaker be turned off for safety.

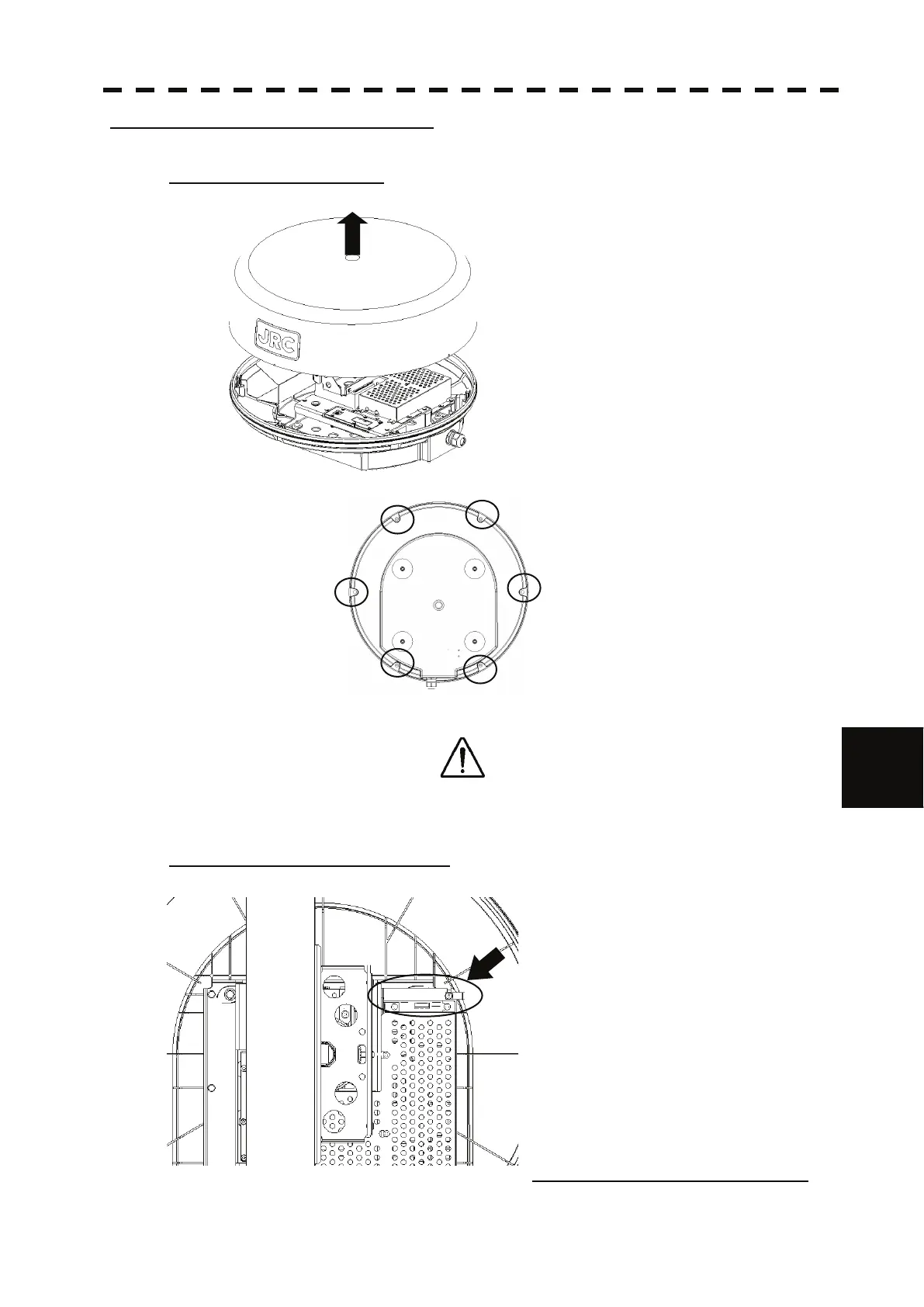

Step 1: Remove the radome.
The radome is fixed with 6 hexagonal bolts.
The figure below shows the positions for 6 bolts.
Place the removed radome in a safe place.
Be sure not to be blown off by the wind.
Step 2: Remove the equipment cable.
Remove the connectors of the equipment cable connected to the transceiver unit.
Remove the cable clamp fixing the
equipment cable.
(You do not need to remove the equipment
cable from the scanner unit.)
Step3 Remove the motor cable, the
Bottom view
To Next Page
