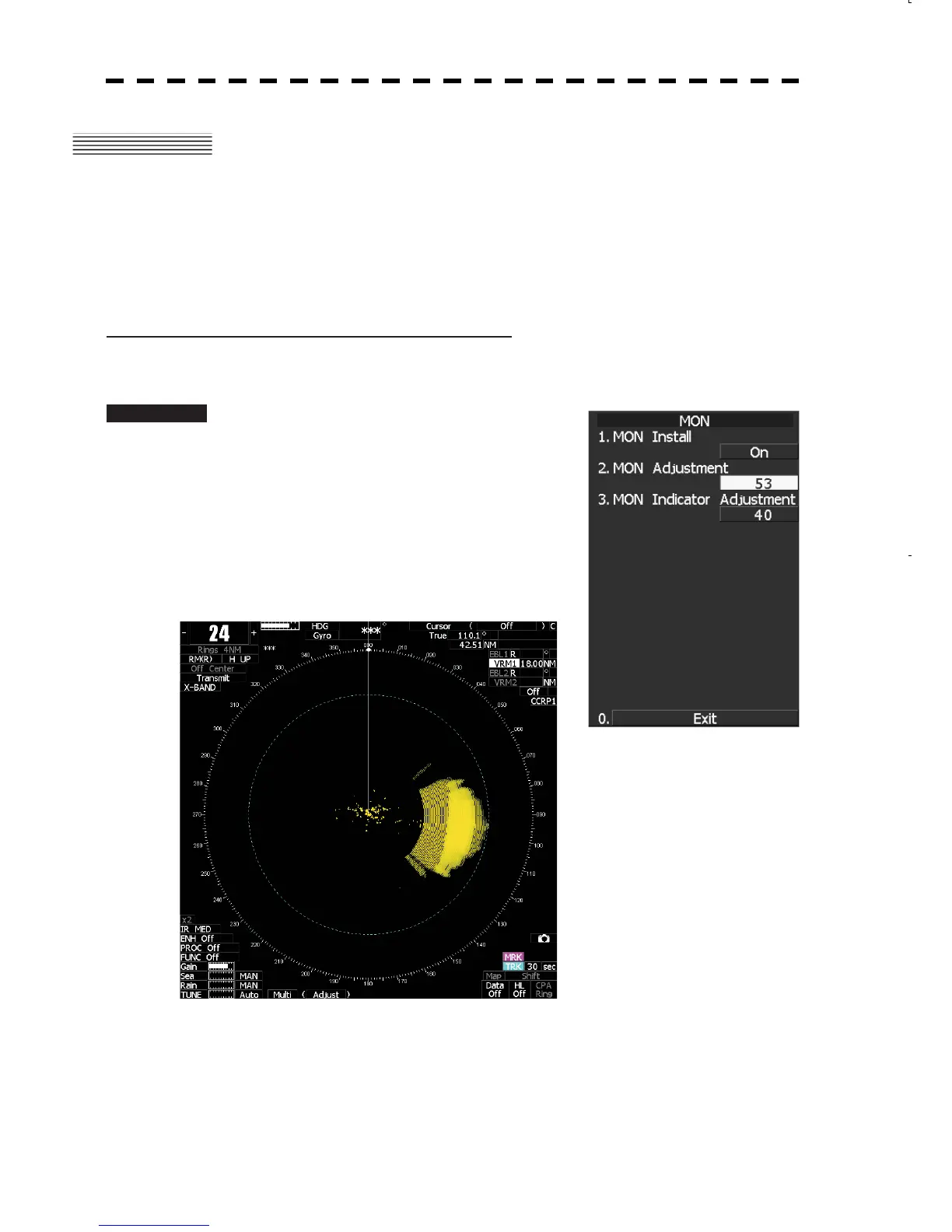

4.15 ADJUSTMENT OF PERFORMANCE
MONITOR (MON)
After replacement of either of the following units, adjust the performance monitor according to the procedures in
this section:
x Performance monitor
x Antenna unit
[I] Transmission Monitor Adjustment (MON Adjustment)
Adjust the circuit for monitoring the transmission performance of the radar equipment.
Procedures 1. Open Adjust Menu.
4. TXRX Setting
4. MON
2. MON Adjustment
2. Increase or decrease the adjustment
value so that the farthest point of the
performance monitor pattern touches the
18.0 nm line.Adjustment menu.
To Next Page
