3-54
3

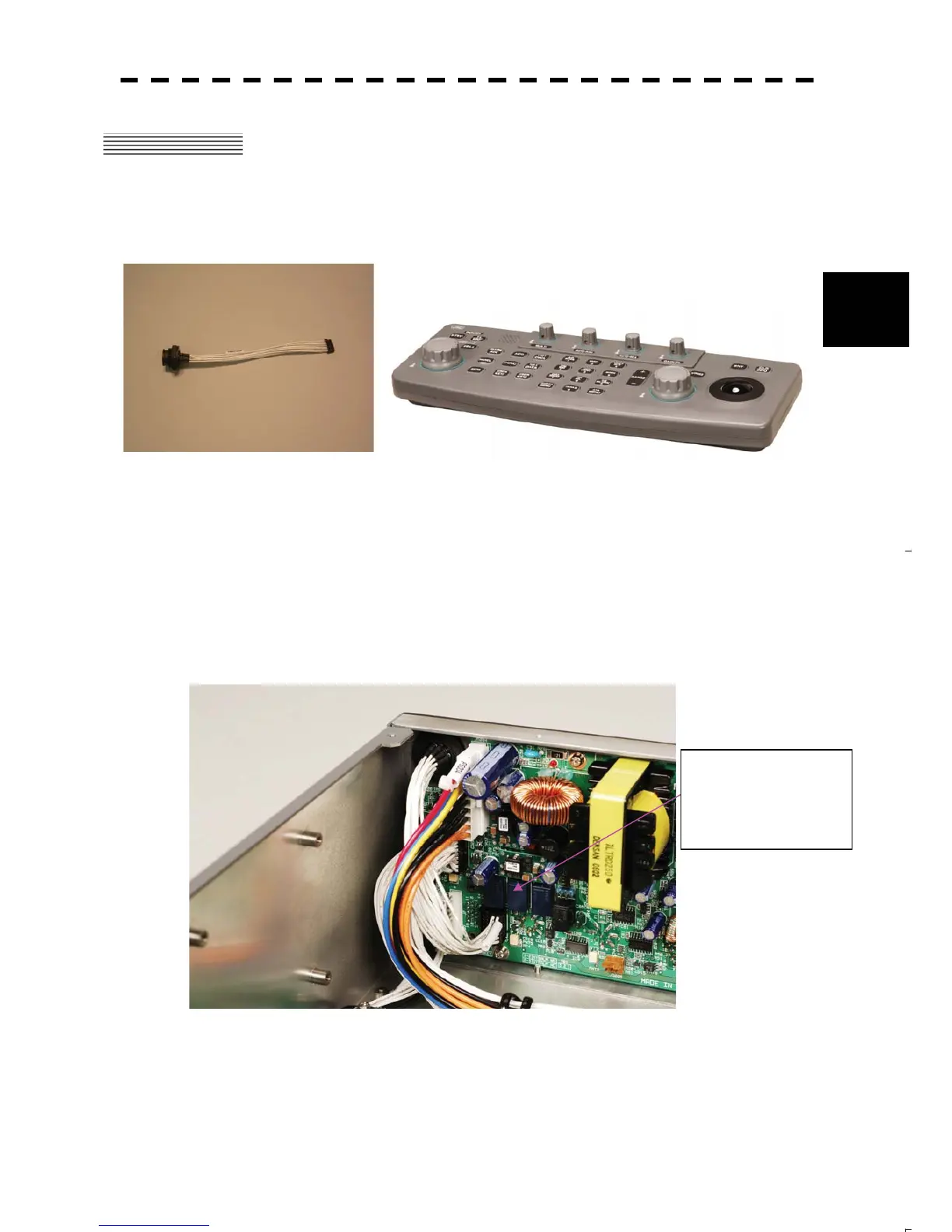

3.20 SUB KEY-BOARD INSTALLATION
One of the two optional key-boards, NCE-7699A standard key-board and
NCE-7729A multi-function key-board is available.
Inter-connection cable CFQ-5351 and one of the optional key-board are required.
CFQ-5351 NCE-7699A
1) Connection
Sub key-board installation procedures.
(1) Remove the processing unit cabinet cover form the unit cabinet.
(2) Connect CFQ-5351 to the J5007 on the CBD-1702A.
(3) Attach 14 pin circular connector of the CFQ-5351 to the cabinet as shown above.
Two identical 14 pin
connectors are on
CBD-1702A side by
side and the J5007 is one
on the right.
