3-50
3
3.18 CONNECT SLAVE MONITOR / VDR

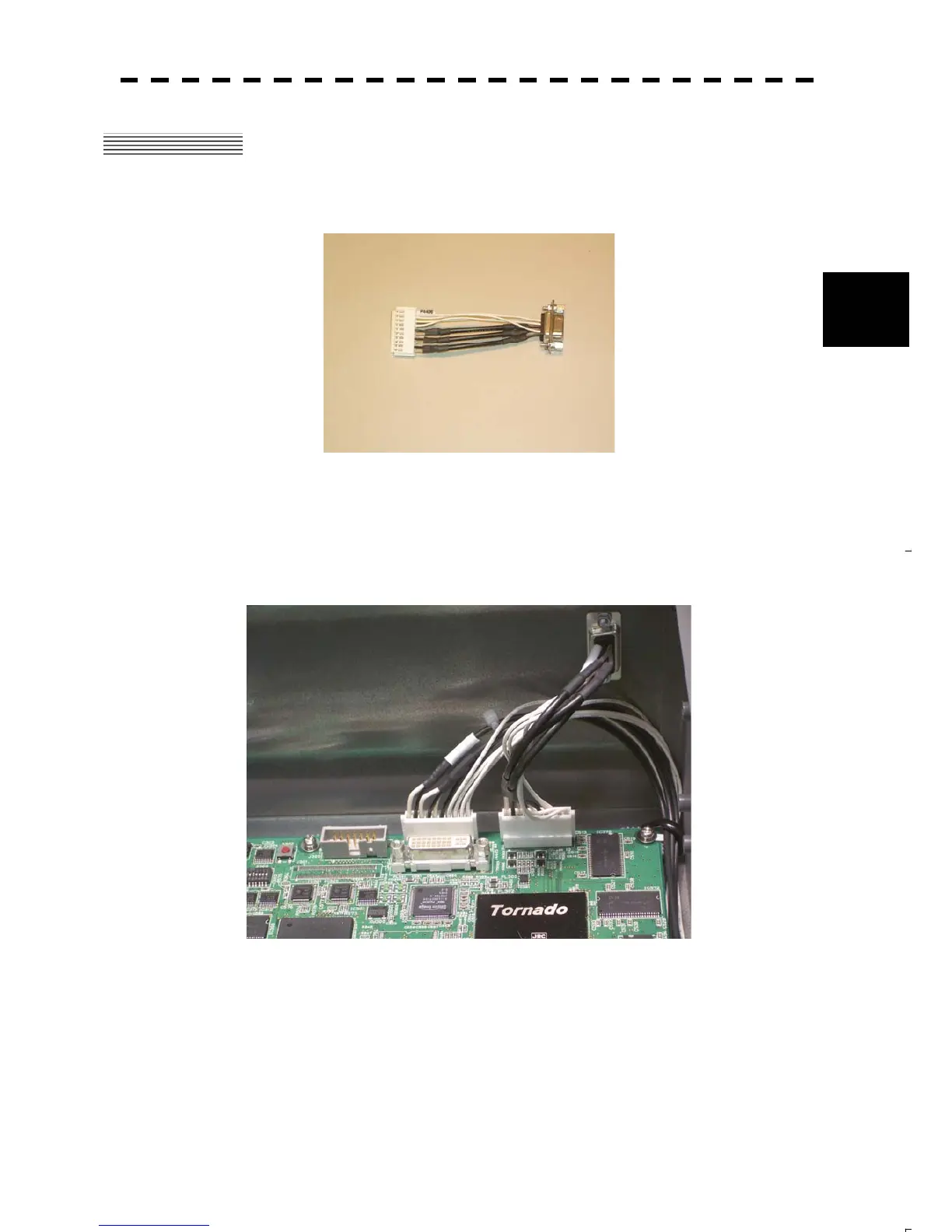

To connect the slave monitor/VDR, the following optional internal cable, CFQ-5350, is necessary.
Install the optional cable, CFQ-5350, in the processing unit according to the following procedure.
1) Connection
(1) Remove the processing unit cabinet cover form the unit cabinet.
(2) Connect CFQ-5350 to J4406 on CDC-1350 and attach the cable on unit cabinet.
(3) Fix D-sub connector of the CFQ-5350 to the chassis.
To Next Page
