3-11
3.6.2 When using other maker's GPS receiver or an NMEA data
output device
1) Connection
When receiving NMEA data from a NMEA data output device of JRC other than those indicated above
or other maker's GPS, connect the required signal lines to the attached NMEA data connector P3 (for J3)
LTWBD06BFFA-LL7001 using the following diagram as the reference.
JMA-5200MK2 side GPS receiver side
(3) NAVCOM Data return
(4) NAVRX Data output from the receiver

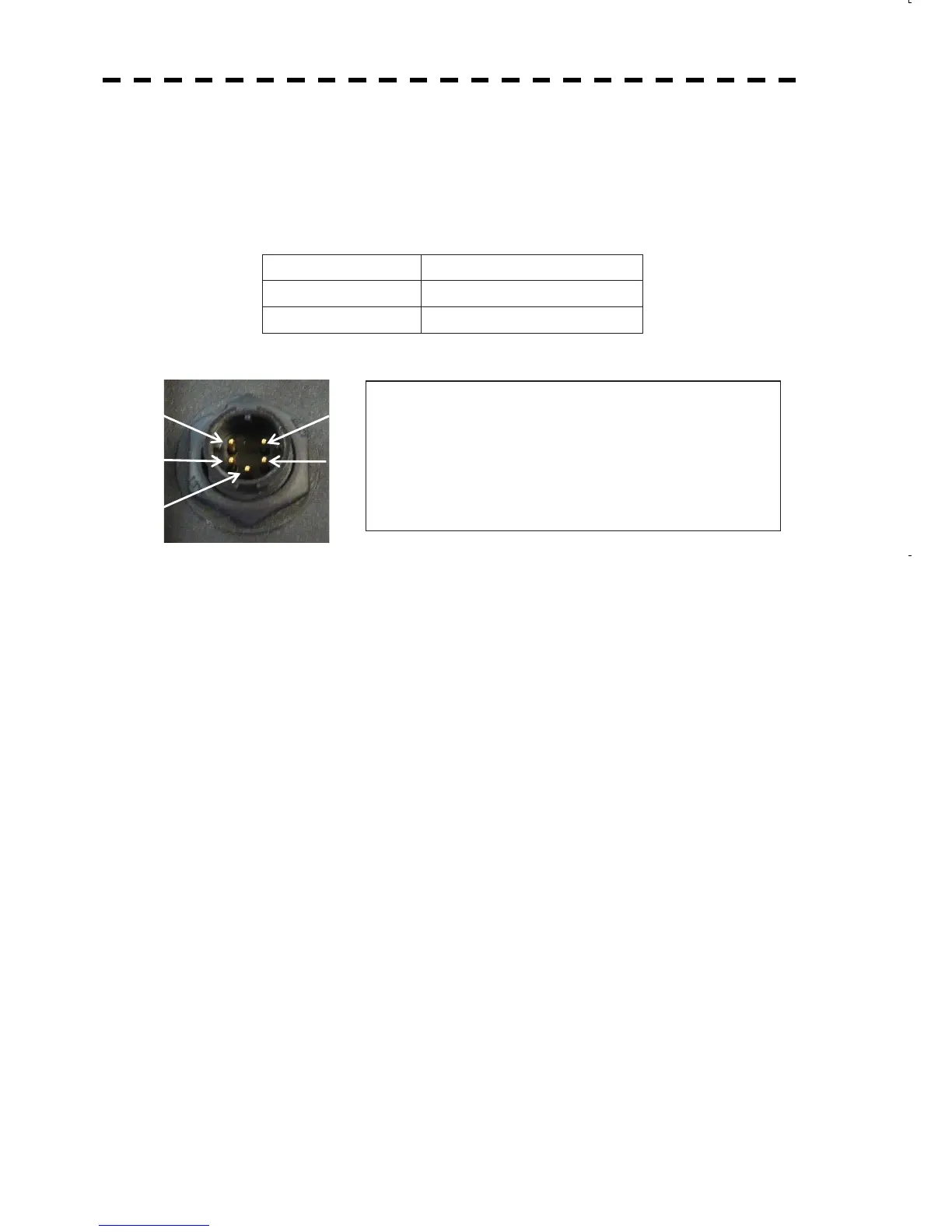

GPS connector (J3)
To GPS or NMEA equipment
(1) +12V : Power for GPS receiver
(2) GND : Power GND for GPS receiver
(3) NAVCOM : Signal GND
(4) NAVRX : Input from receiving signals from GPS
(5) NAVTX : Output of transmitting signals to GPS
(1)
(2)
(3)
(4)
(5)
To Next Page
