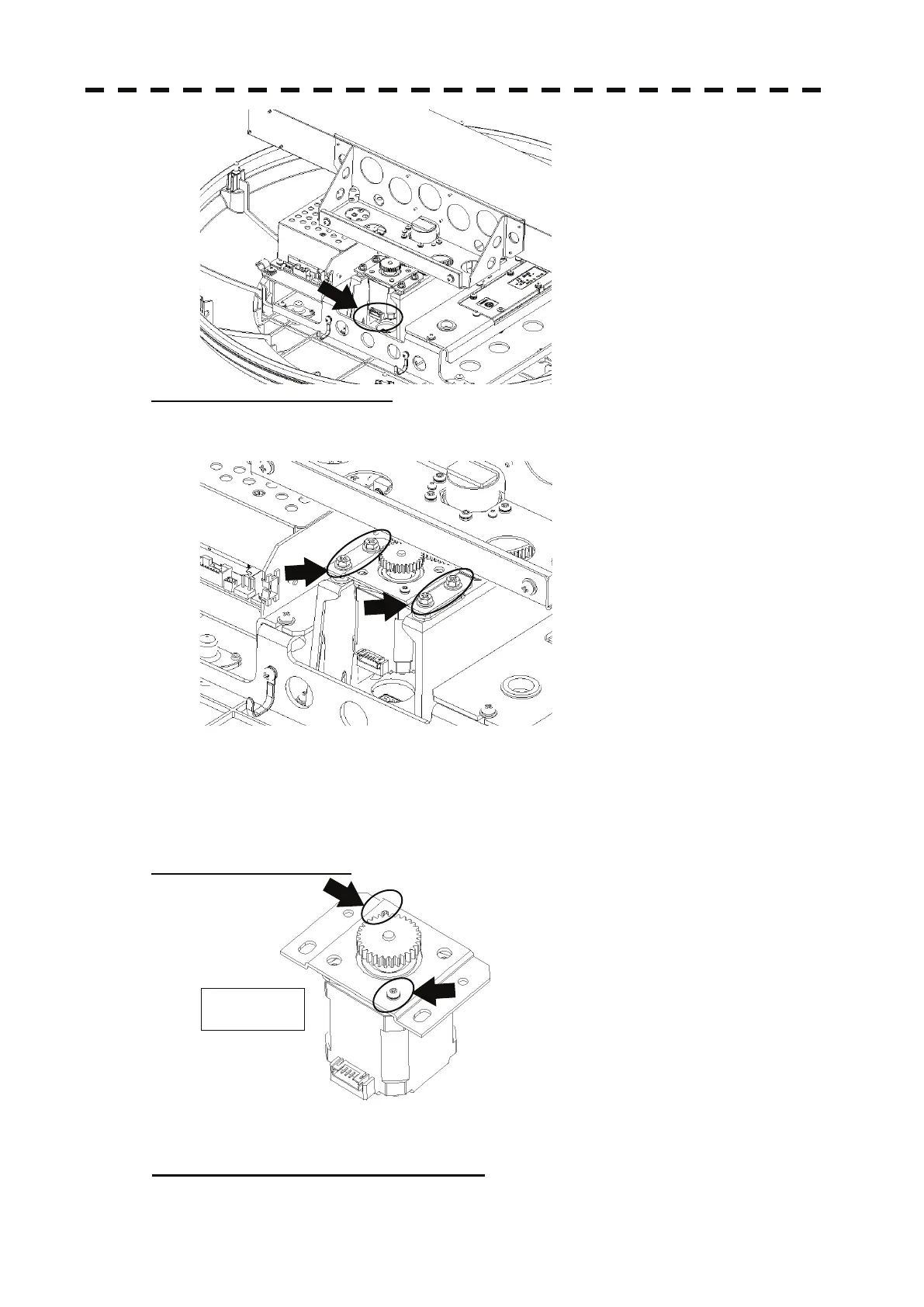

Step 3: Remove the motor unit.
The motor unit is fixed with
4 upset head bolts with washer (M4X12SUS_SW_W).
Remove the upset head bolts to remove the motor unit.
1 Replace the motor.
The motor is fixed with 2 screws with washer (M3X6Bs_SW).
Step 4: Remove 2 screws.
Step 5: Remove the motor for replacement.
Motor Assy.
To Next Page
