SETTING OF PULSE OUTPUT SELECTION
(BEARING PULSES FROM
ANTENNA)
Set the output value of bearing pulses from the antenna. The
system can set 2048 pulses
or 4096 pulses. This setting is
enabled only when an antenna
of
25 or 30 kW is used.
Procedures
1.
Open the Adjust Menu.
2.
Press [4] key
.

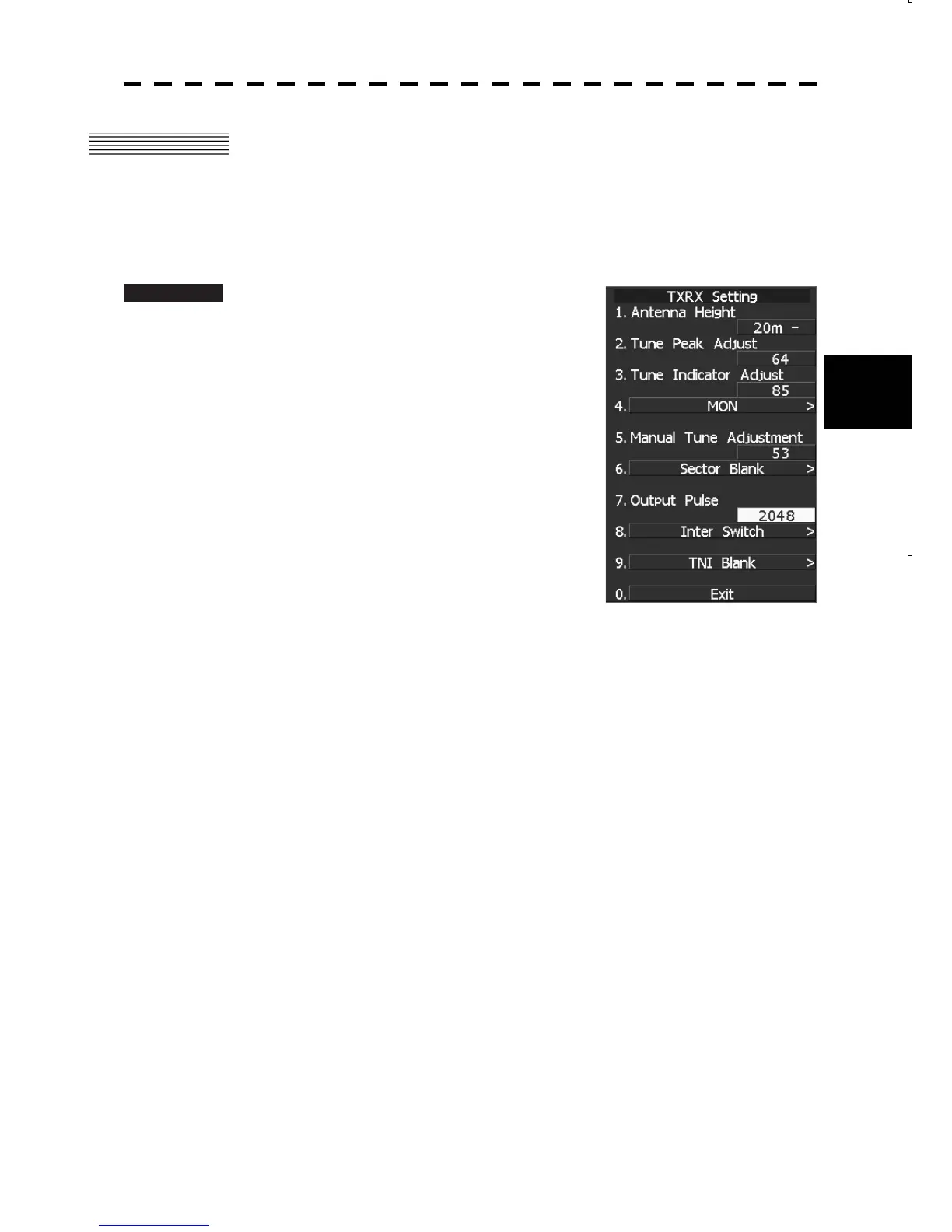

The TXRX Set
ting Menu will appear
.
3.
Press [7] key
.
4.
Select a set
value to be used.
