3-41

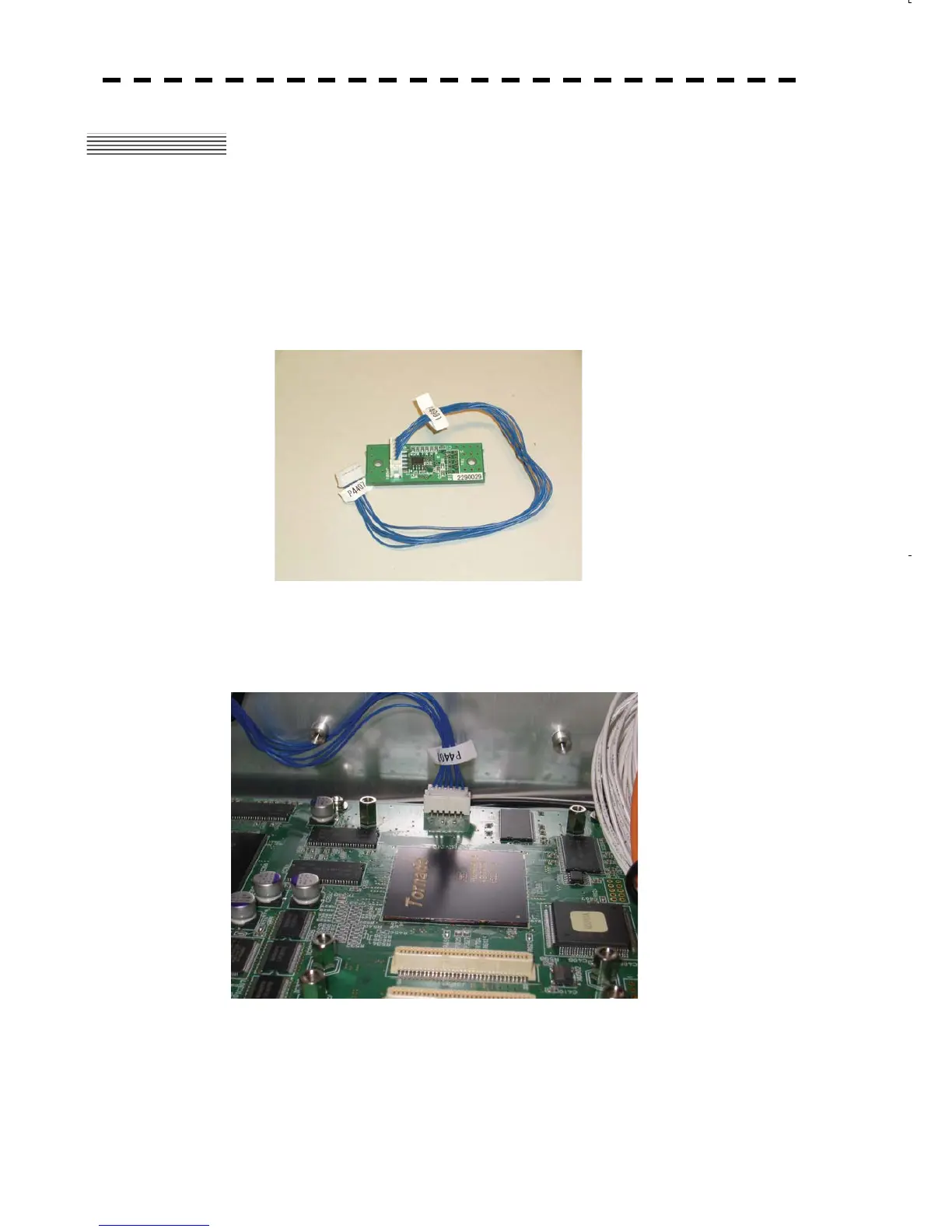

3.15 PLOTTER CIRCUIT (NDB-44) (OPTION)
Install the plotter circuit in the processing unit according to the procedures below:
1) Equipment/connection
(1) Remove the processing unit cabinet cover.
(2) Connect the P4901 side of the cable (H-7ZCRD0934) attached to the plotter circuit to the plotter circuit's
connector J4901.
(3) Connect the P4407 side of the cable (H-7ZCRD0934) attached to the plotter circuit to the processing
unit's radar processing board J4407.
To Next Page
