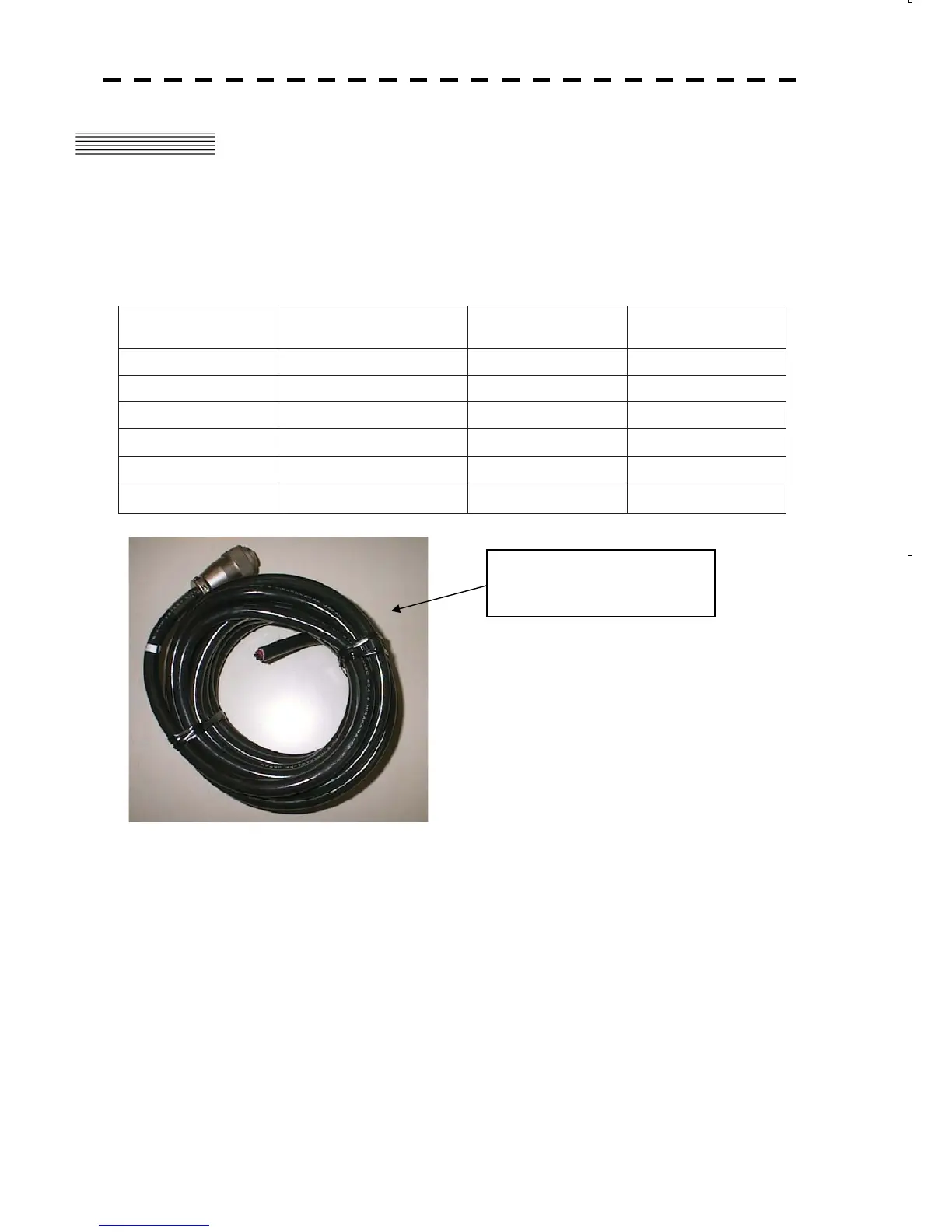

3.4 INSTALLATION OF THE POWER CABLE
(CFQ-5436)
This radar equipment comes with 5-m-long cables with a connector.


Wiring table of the cable CFQ-5436
Color Number of
wires/diameter(mm)
Cross-sectional
area(mm)
Polarity
Red 50/0.18 1.25 +
Red 50/0.18 1.25 +
Red 50/0.18 1.25 +
Black 50/0.18 1.25
㧙
Black 50/0.18 1.25
㧙
Black 50/0.18 1.25
㧙
CFQ-5436-5 cable
Cable length 5m
