JRC JMA-5212-6 Installation Manual

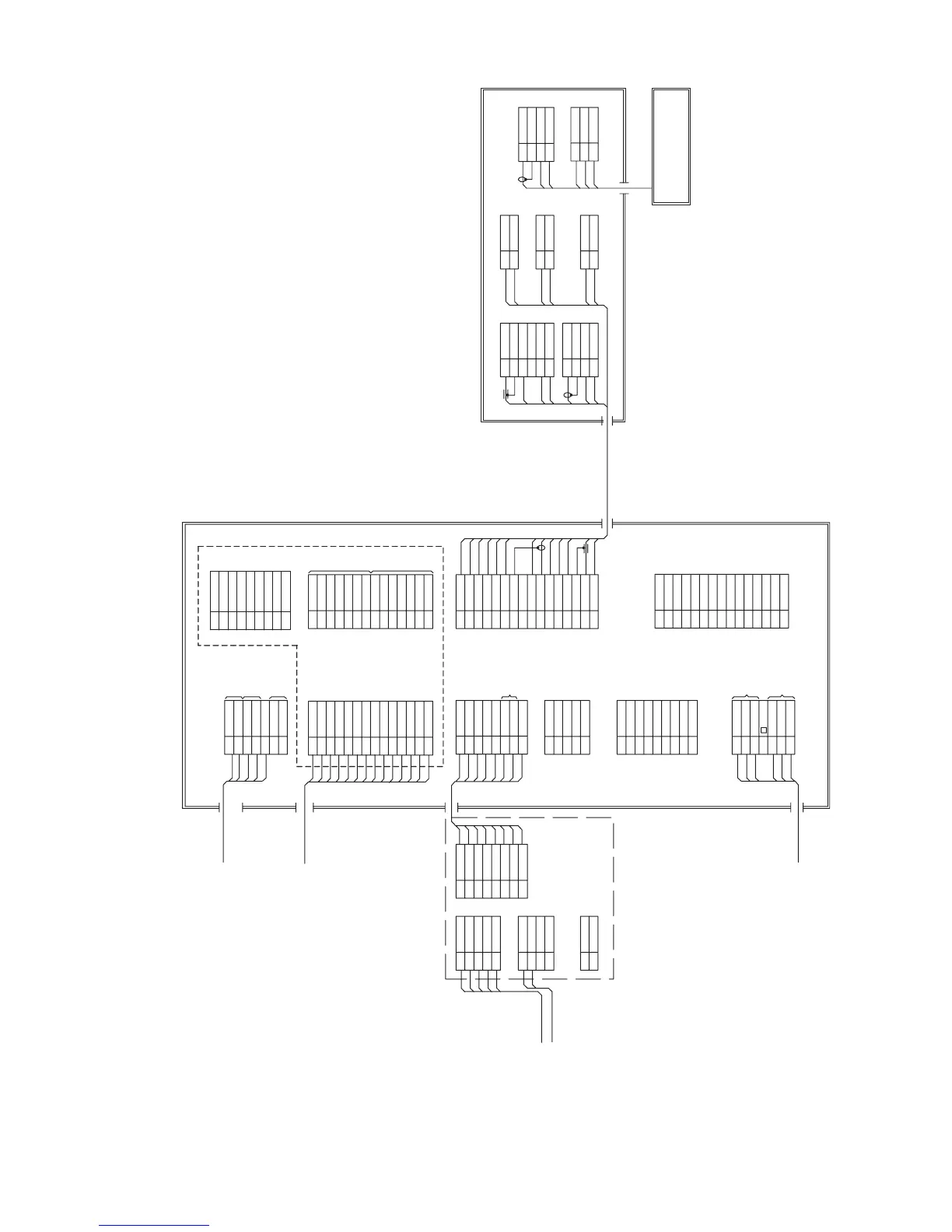

Fig.17 JMA-5222-7/9 Interconnection Diagram
11/R1 22/S1 33/S2 4S3 55/R2
TB10 GYRO SYNC/STEP TB20
1LOGP+ 2LOGP- 3LOGS+ 4LOGS-
LOG SYNC/PULSE TB40
1BUZZ+ 2BUZZ-
BUZZER OUTPUT
250V-MPYCYS-7
250V-DPYCYS-1.5
LOG(200P)
GYRO
1 NSKTXD- 2 NSKTXD+ 3 NSKRXD+ 4 NSKRXD- 5GND 6ALM+ 7ALM- 8+5V
NCT-4106A NSK UNIT
(OPTION)
SUB KEYBOARD
AIS
250V-TTYCS-4
1 NMEA RXD+ 2 NMEA RXD- 3NMEA TXD+ 4NMEA TXD- 5GND 6 EVENT+ 7 EVENT-
J6 RS-422 PORT
OUTPUT INPUT EVENT INPUT
1+ 1- 2+ 2- 3+, 3-
NCD-4380 DISPLAY UNIT
CBD-1702A I/O POWER SUPPLY BOARD
1P12V 2P12VE 3FG 4PS 5CONT1 6CONT2 7 KEYTXD- 8 KEYTXD+ 9 KEYRXD+
10 KEYRXD- 11 +12V 12 +12V 13 GND 14 GND
to GPS
CFQ-6998
1NSKTXD- 2NSKTXD+ 3 NSKRXD+ 4 NSKRXD- 5GND 6ALM+ 7ALM- 8+5V
J5
1+12V
J3
2GND 3NAVCOM 4GPSRXD+ 5GPSTXD+ 1NC
J8 RS232C PORT
2PCRXD 3PCTXD 4NC 5GND 6NC 7PCRTS 8PCCTS 9NC 11A
J1 POWER INPUT
21A 31A 52A 62A 72A 4
+ -
RED RED RED BLK BLK BLK
SHIPS MAINS
DC24V
300Wmax
CFQ-5436-5 (5m JRC SUPPLY)
1RED 2GRN 3BLU 4NC 5NC 6RED-GND 7GRN-GND 8BLU-GND 9NC
10 HSYNC-GND 11 VSYNC-GND 12 NC 13 HSYNC 14 VSYNC 15 NC
SLAVE RGB OUTPUT
1M-
J2
SUB KEY-BOARD
2M- 3M+ 4M+ 52A 6GND 7VDE 8+12V 91A
10 VD 11 MTR+ 12 BZ 13 MTR- 14 TRGE 15 TRG 16 BP
BLU.T/GRY.T PUR.T/BRN.T WHT.T/ORN.T RED.T/GRN.T BLK.T/SKY.T BLK YEL.T/PNK.T YEL GRN WHT ORN
1EVDO 2EVDOE 3FG 4ETRGO 5EBPO 6EBZO 7 ETRGOE 8EVDI 9EVDIE
10 ETRGI 11 +12V 12 EBPI 13 EBZI 14 ETRGIE
SIMPLYFIED ISW
OUTPUT INPUT
19-CORES CABLE CFQ-6912-20/30 (JRC SUPPLY)
NKE-2254-7/9 SCANNER UNIT
ORN GRN BLK YEL WHT
1ETIY
J1
2AGND 3 EXBP 4AGND 5 EXBZ 6AGND 9VD
J2
10 VDE 11 MTR+ 12 MTR-
BLK.T/SKY.T YEL.T/PNK.T BLU.T/GRY.T WHT.T/ORN.T PUR.T/BRN.T RED.T/GRN.T
12A
J3
21A 12A
J4
21A 12A
J5
21A
RED BLK BLU WHT BRN BLK WHT
1LVR
J82
2PMS 3E
1PTI
J81
2PTE 3LVR 4PMS
To PM
NJU-85 PM UNIT (OPTION)
PM UNIT must be fitted on ships compliant to IMO.
J9 (J5007) option
to JLR-10 / 20 / 30 / NCT-4106A
(J4406)
J9 (J5009) option
to NMEA equipments
BUZZER OUTPUT
1 NAV2 RXD- 2 NAV2 RXD+ 3 4 NAV2 RXD+ 5 NAV2 TXD- 6 RS232C RXD- 7 RS232C RXD+ 8RS232C TXD+ 9RS232C TXD-
J9 (J5012)
