(4) Remove the connector at J4311 on the CBD-1702A.
(5) Connect the trident ends of the cable (H-7ZCRD0908) attached to the AIS interface circuit to the AIS
interface circuit's connectors as shown in the following table:
Cable side AIS interface side
P1 J1
P400 J400
P510 J510

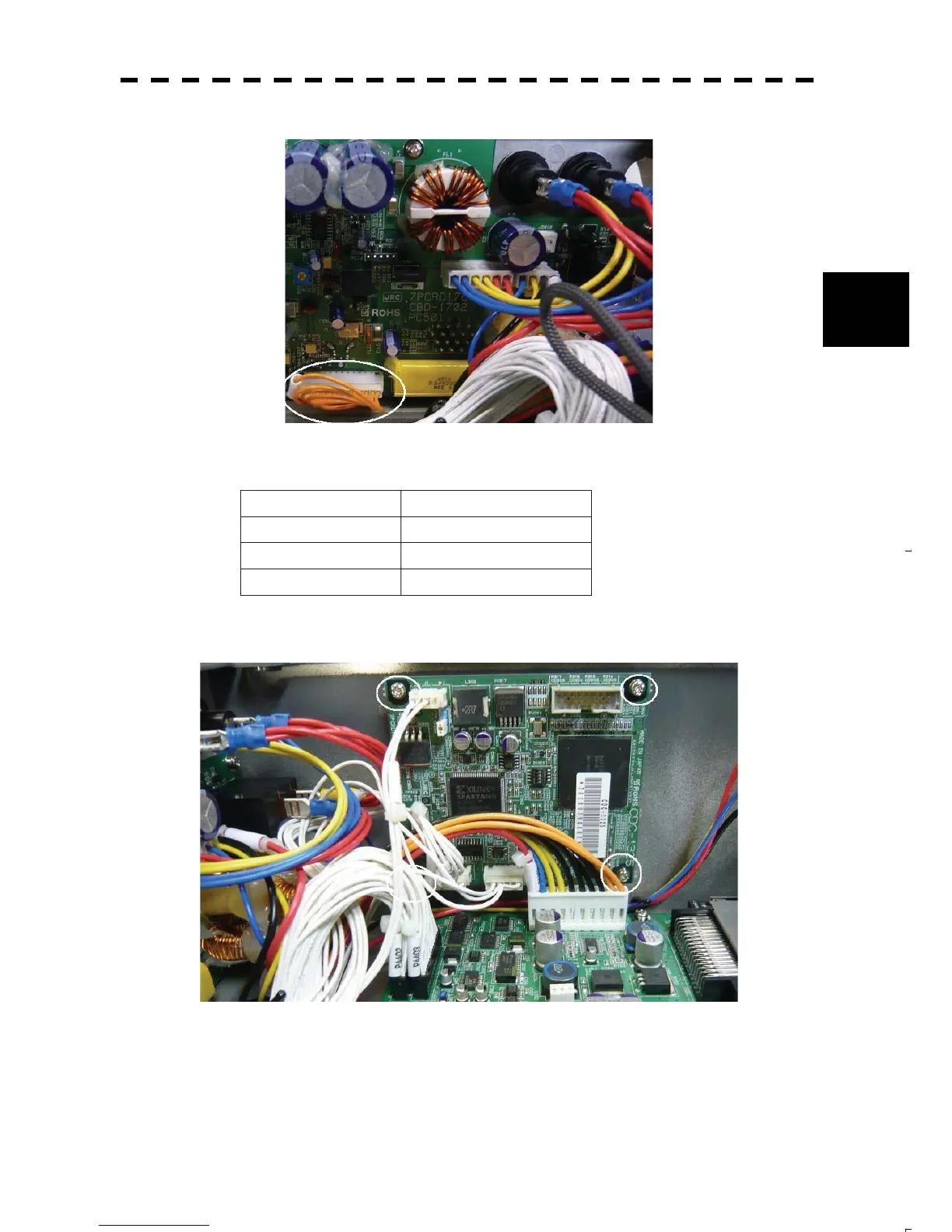

(6) Securely fix the AIS interface circuit at the location in the processing unit a shown in the following
photograph.
