4.8 CCRP SETTING
Set the CCRP position of own ship and the installation position of the radar
scanner and the GPS.
Procedures
1) Measure the CCRP position, radar antenna position, and the GPS antenna
position in advance.
2) Open the [Service Man Menu] screen.
3)

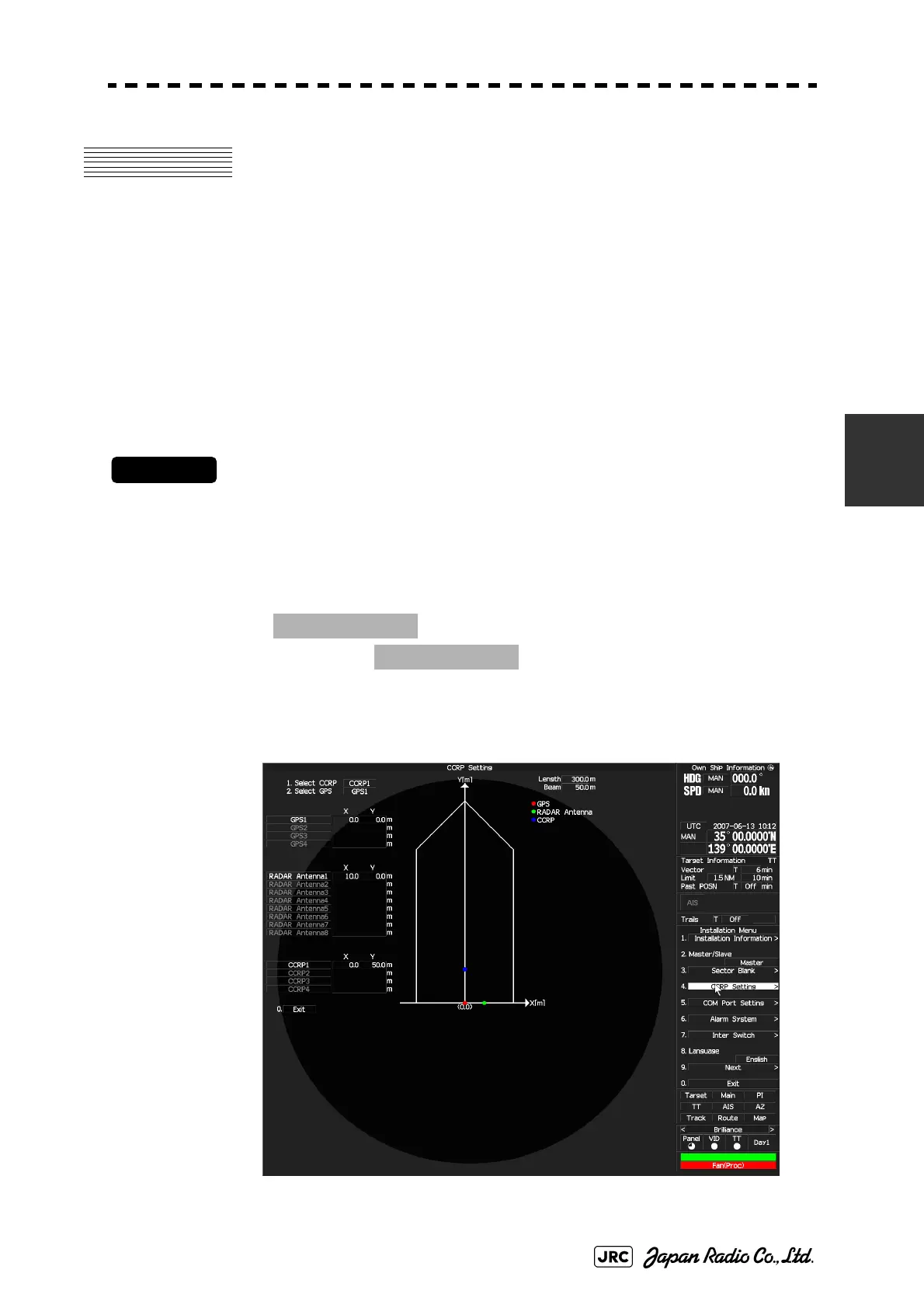

Open the [4.CCRP Setting] screen according to the operation shown below.
Enter the hull length, hull width, GPS antenna position, radar antenna position, and the CCRP
position, press 1.Select CCRP button and 2.Select GPS button located on the upper left on the
screen to select the CCRP position and the GPS antenna position to be used.
4) Press 0.Exit button to finish input.
CCRP:
Up to four locations can be inputted (select only one when in
use)
Radar scanner:
Up to eight scanners can be inputted (automatically selected
according to operation of ISW)
GPS:
Up to four locations can be inputted (select one when in use)
