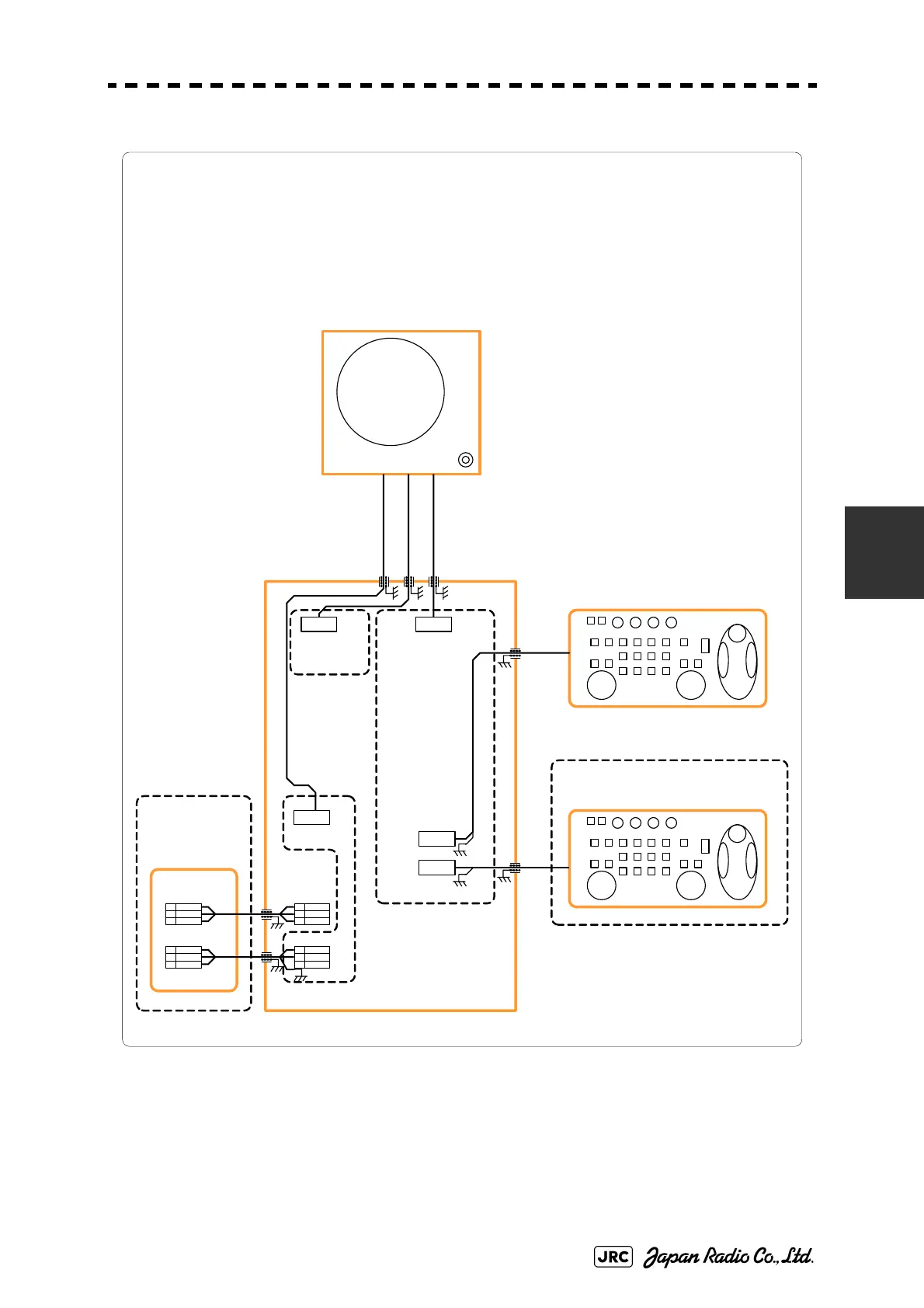

6.3.1.9 Inter-unit connection diagram of NCD-4790T
Fig 6-63: NCD-4790T
DISPLAY UNIT NCD-4790T
MONITOR UNIT
NWZ-173
OPERATION UNIT
NCE-5163
SUB OPERATION UNIT
NCE-5163
1 U
2 V
3 FG
CBD-1684A TB521
1 +
2 ー
3 FG
CBD-1684A TB522
RADAR PROCESS UNIT
NDC-1399-7
AC/DC CONVERTER UNIT
NBA-5135
Option for X-band 10kW and X-band 25kW-HS.
Used with NKE-2103-6,NKE-2103-6HS and NKE-
2254-6H S
1 +
2 ー
3 FG
TB 402
1 U
2 V
3 W
CBD-1661
AC O UT 1
J4311
J4312
CBD-1661
AC OUT 2
Option
Main
Sub
J4406
DVI-D
J4309
DSUB -9P
FEMALE
RADAR PROCESS
CIRCUIT
C DC- 1324
TERMINAL BOARD
C QD-2097
POWER SUPPLY
CB D-1661
NCD-4790T 卓上型レーダー指示機 ユニット間接続図
INTERCONNECTION DIAGRAM OF DISPLAY UNIT TYPE NCD-4790 T(desktop)
JMA-7100 Series RADAR
