JMA-9100/7100 Installation Manual > 5.OPTION UNIT > 5.2 INSTALLATION OF POWER CONTROL UNIT
5－35
5

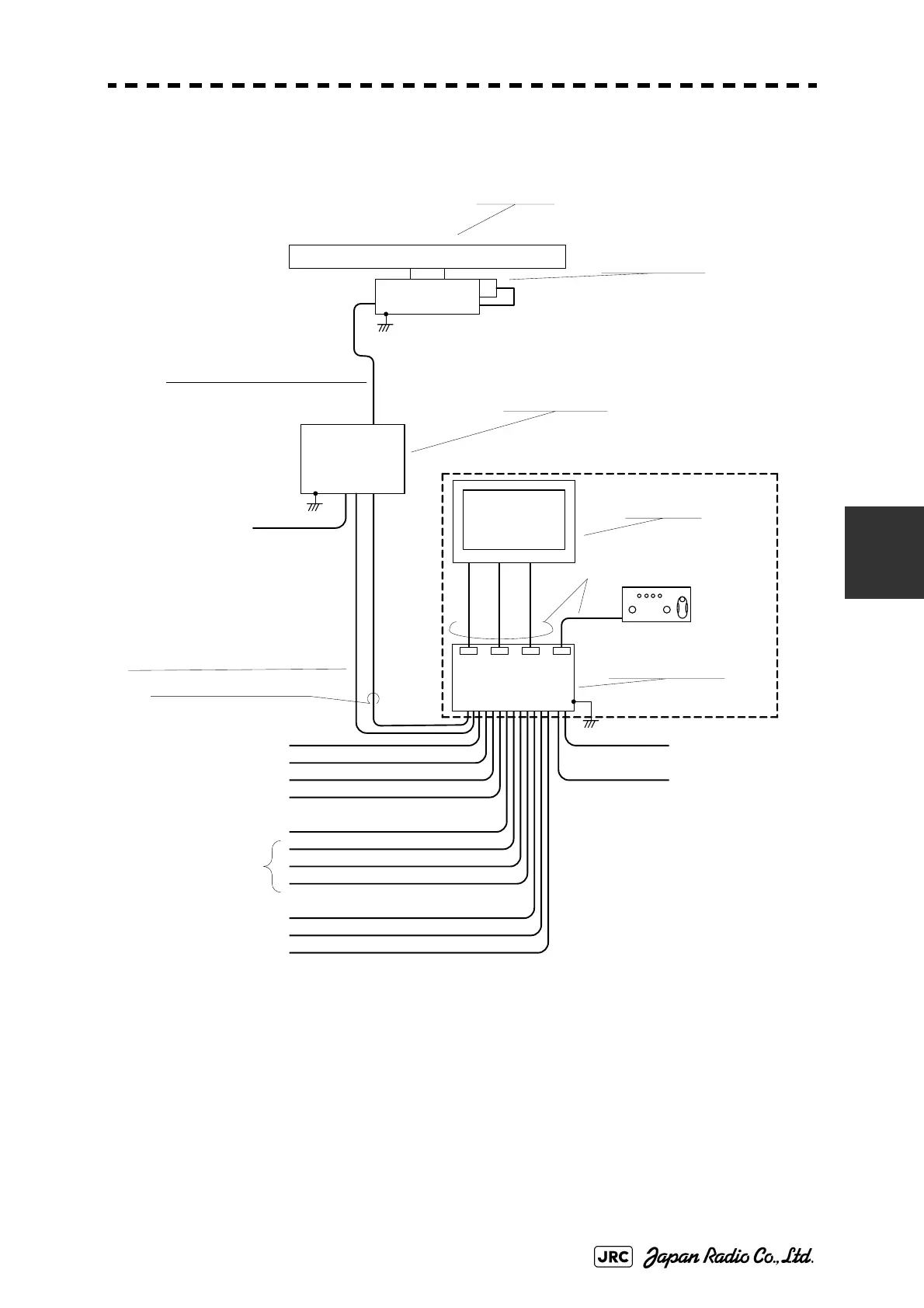

Fig 5-34: JMA-7110-6XAH (w/ NQE-3167) desktop
250V-MPYCYS -7
250V-TTYCS-1
3C-2 V x5 (MAX 30m )
250V-TTYCS-1
18 CORES COMPOSITE CABLE
H-2695111153
MAX 18.0φ (JRC SUPPLY)
250V-TTYCS-4
H-2695110006 (JRC SUPPLY )
H-7ZCNA0483 (JRC SUPPLY)
250V-MPYC -4
250V-TTYCS-4
250V-TTYCS-4
GYRO
LOG
(NMEA 0183)
DGPS
VDR
RADAR
(I NTE R SWI TCH)
ECDIS (JAN- 901M)
ALERM MONITORING SYSTEM
(NEAREST APPROACH)
(POWER FAIL)
CONNING DISPLAY (JAN-701-CON)
AIS
0.6/1kV-DPYCY -6
0.6/1kV-DPYCYS -1.5
SHIP’S MAIN
AC220V ,60 Hz,1φ, 800V A
SHIP’S MAIN
for POWER FAIL ALARM
DC24V(BATTERY ),1W
NOTE: ELIMINATING THE INTERFERENCE ON FREQUENCIES USED FOR MARINE COMMUNICATIONS AND
NAVIGATION DUE TO OPERATION OF THE RADAR.
ALL CABLES OF THE RADAR ARE TO BE RUN AWAY FROM THE CABLES OF RADIO EQUIPMENT.
(ex. RADIOTELEPHONE, COMMUNICATIONS RECEIVER and DIRECTION FINDER. etc..)
ESPECIALLY INTER-WIRING CABLES BETWEEN SCANNER UNIT AND DISPLAY UNIT OF THE RADAR
SHOULD NOT BE RUN PARALLEL WITH THE CABLES OF RADIO EQUIPMENT.
(X-BAND 10kW RADAR)
ＪＭＡ－７１１０－６ＸＡＨ形レーダー総合系統図
GENERAL SYSTEM DIAGRAM OF RADAR TYPE JMA -7110 -6XAH
NKE-2103-6HS
SCANNER UNIT
19 CORES COMPOSITE CABLE
CFQ-6912-** 65m MAX
MAX 14.5φ (JRC SUPPLY)
NJU-85
PERFORMANCE UNIT
NDC-1399-7
RADAR PROCESS UNIT
NWZ-173
MONITOR UNIT
NCE-5163
OPERATION UNIT
H-7ZCRD1338
Power & Control Cable
DVI CABLE CONTROL CABLE POWER CABLE
(JRC SUPPLY ) m ax 5m
NCD-4790T DISPLAY UNIT
NQE-3167
POWER CONTROL
UNIT
14 CORES COMPOSITE CABLE
H-2695110056
MAX 23φ (JRC SUPPLY)
400m MAX
COAXIAL CABLE for VIDEO
RG-10/UY (JRC SUPPLY)
400m MAX
0. 6/1 kV-DPYCY-6
SHIP’S MAIN
AC220 V,60 Hz,1φ, 400V A
注） レーダーの動作が他の無線装置に、雑音妨害を与えることを防止するために、レーダーケーブルを他の無線
装置のケーブルから極力離して敷設して下さい。特に、空中線ケーブルを他の無線装置のケーブルと平行に
敷設しないで下さい。
