PREVENTION OF TERMINAL DAMAGE.

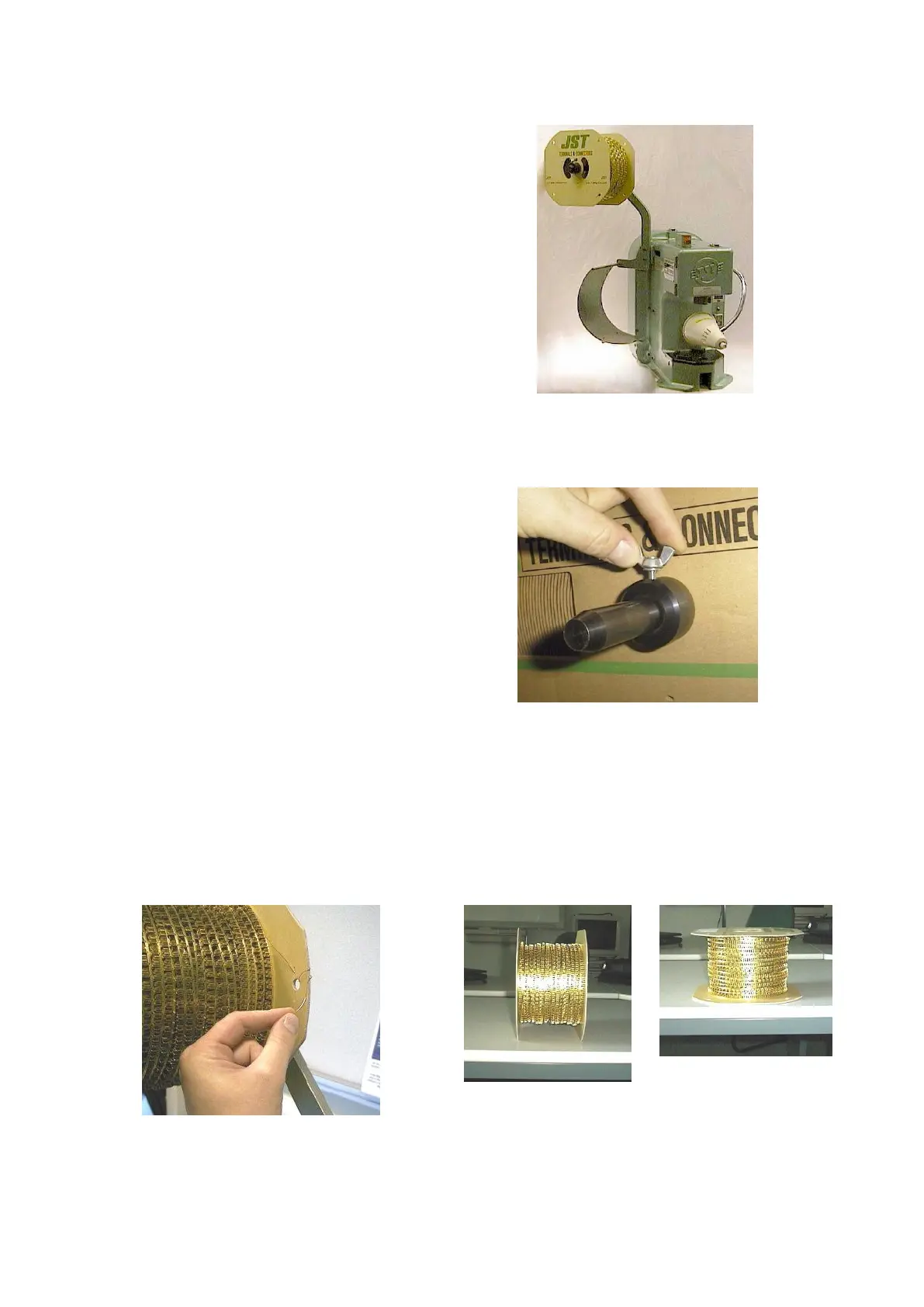

1. Mount reel on reel holder attached to the
side of the press, as shown.
2. Adjust the collar; ensure that the collar is
adjusted so there is a light drag on the reel
prior to untying the reel.
3. Terminals are tied with wire, do not untie
before collar is fitted as the windings will
become loose, always re-tie after each
production run.
4. Make sure the reels are stored up on end in
the original box, do not lay the terminals on their
side as they can drop and get tangled.
