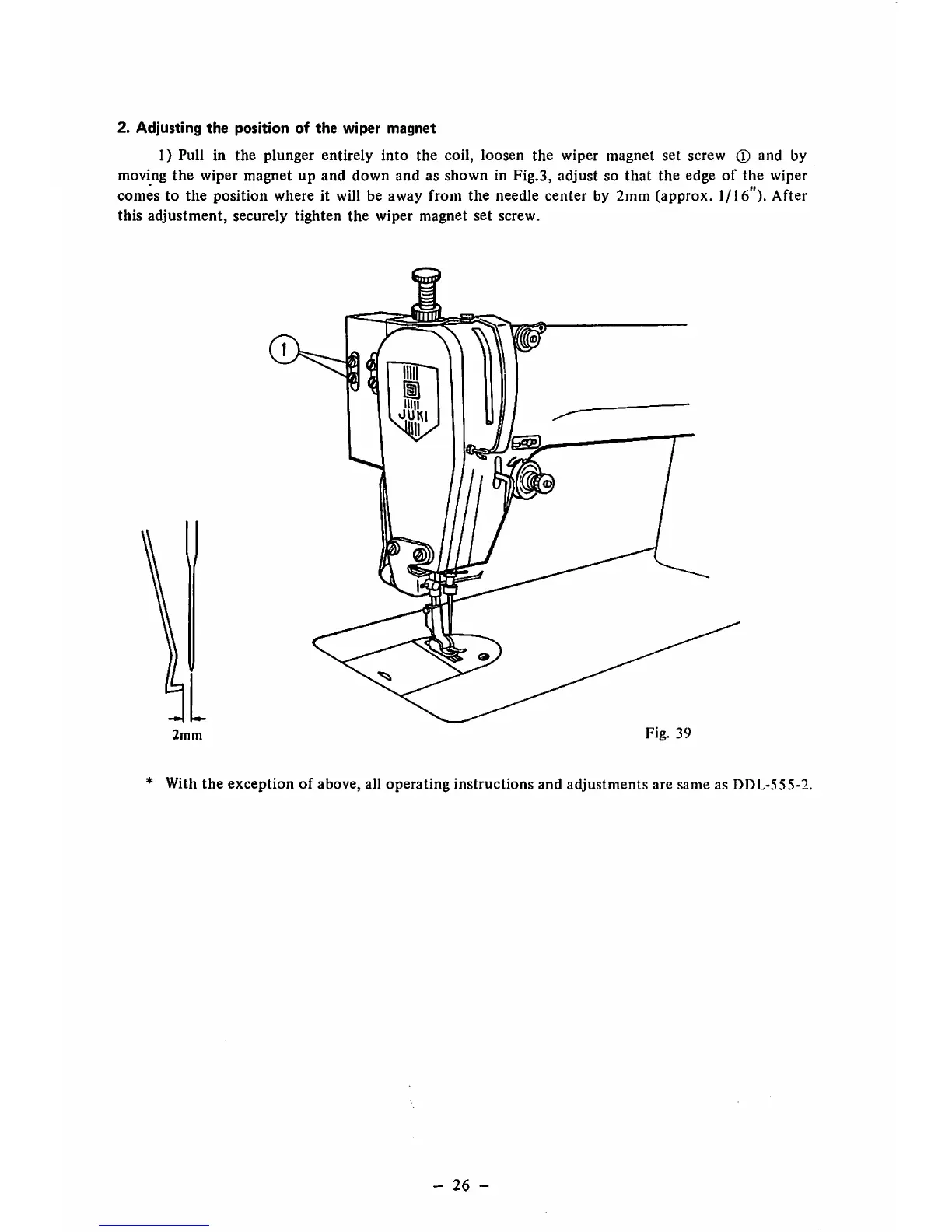

2.
Adjusting
the
position
of
the
wiper
magnet
1)
Pull
in
the
plunger
entirely
into
the
coil,
loosen
the
wiper
magnet
set
screw
0
and
by
moving
the
wiper
magnet
up
and
down
and
as
shown
in
Fig.3,
adjust
so
that
the
edge
of
the
wiper
comes to the position where it
will
be away from the needle center by 2mm (approx. 1/16"). After
this
adjustment,
securely
tighten
the
wiper
magnet
set
screw.
2min
Fig.
39
With
the
exception
of
above, all
operating
instructions
and
adjustments
are same as DDL-555-2.
-
