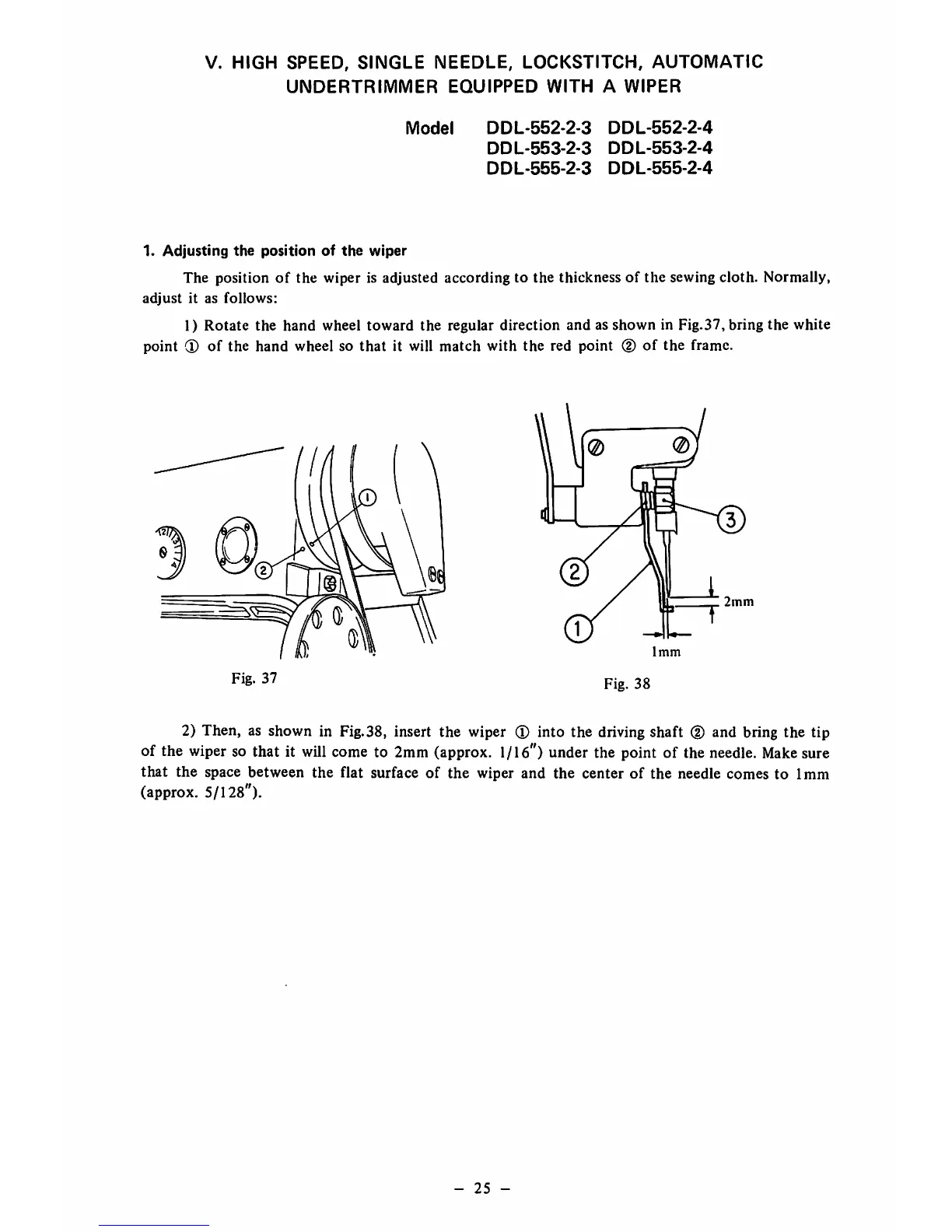

V. HIGH
SPEED,
SINGLE
NEEDLE,
LOCKSTITCH,
AUTOMATIC
UNDERTRIMMER
EQUIPPED
WITH
A
WIPER
Model
DDL-552-2-3
DDL-553-2-3
DDL-555-2-3
DDL-552-2-4
DDL-553-2-4
DDL-555-2-4
1.
Adjusting
the
position
of
the
wiper
The
position
of
the
wiper is adjusted
according
to
the
thickness
of
the
sewing
cloth.
Normally,
adjust
it as
follows:
1)
Rotate
the
hand
wheel
toward
the
regular
direction
and
as
shown
in Fig.37,
bring
the
white
point (D
of
the hand wheel so
that
it will
match
with
the
red point (D
of
the
frame.
z
2inin
1mm
Fig. 37
Fig.
38
2) Then, as shown in Fig.38, insert the wiper ® into the driving shaft (D and bring the tip
of the
wiper
so that it
will
come
to 2mm(approx. 1/16") under the point of the
needle.
Make
sure
that
the
space
between
the
flat surface
of
the
wiper
and
the
center
of
the
needle comes to
1mm
(approx. 5/128").
-
25
-
From the library of: Superior Sewing Machine & Supply LLC
