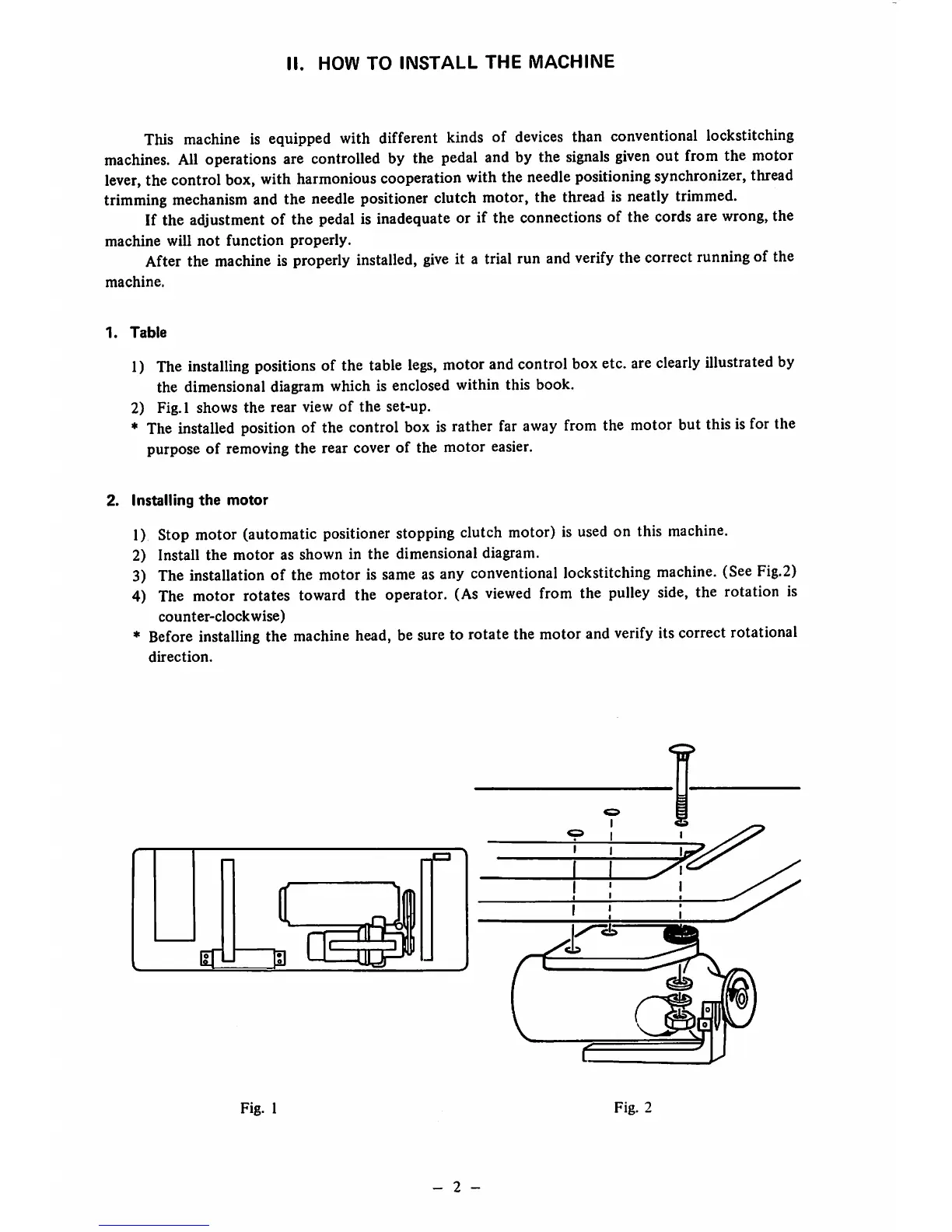

II.
HOW
TO
INSTALL
THE
MACHINE
This
machine
is equipped with different kinds of
devices
than conventional lockstitching
machines.
All operations are controlled by the pedal and by the
signals
given
out from the motor
lever,
the
control
box,
with
harmonious
cooperation
with
the
needle
positioning
synchronizer,
thread
trimming
mechanism
and the
needle
positioner clutch motor, the thread is neatly
trimmed.
If the adjustment of the pedal is inadequate or if the connections of the cords are wrong,the
machine
will
not
function
properly.
After the
machine
is properly installed,
give
it a trial run and
verify
the correctrunning of the
machine.
1.
Table
1)
The
installing
positions
of the
table
legs,
motorandcontrolboxetc. are
clearly
illustrated by
the dimensional diagram which is enclosed within this book.
2)
Fig.l
shows
the
rear view
of
the
set-up.
*
The
installed
position
of the control box is
rather
far
away
from
the
motor
but thisisforthe
purpose of removing the rear cover of the motor easier.
2.
Installing
the
motor
1) Stop motor (automatic positioner stopping clutch motor) is
used
on this
machine.
2) Install the
motor
as shown in the dimensional diagram.
3)
The
installation
of the
motor
is
same
asany
conventional
lockstitching
machine.
(See
Fig.2)
4)
The
motor rotates
toward
the operator.
(As
viewed
from
the
pulley
side,
the rotation is
counter-clockwise)
*
Before
installing
the
machine
head,
be
sure
to rotate the motorand
verify
itscorrect rotational
direction.
I I
a
I !
Fig. 1
Fig. 2
- 2 -
