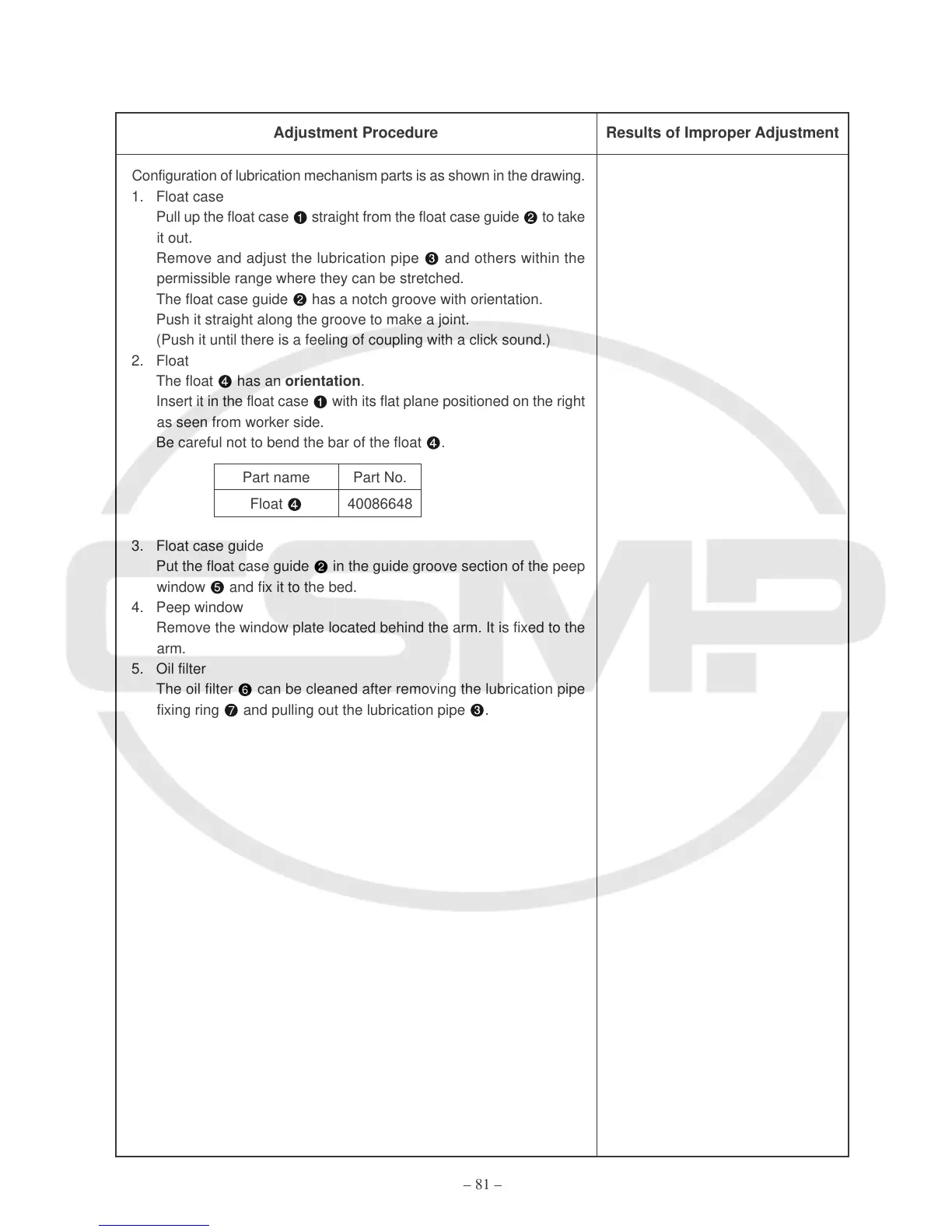

– 81 –
Adjustment Procedure Results of Improper Adjustment
Configuration of lubrication mechanism parts is as shown in the drawing.
1. Float case
Pull up the float case straight from the float case guide to take
it out.
Remove and adjust the lubrication pipe and others within the
permissible range where they can be stretched.
The float case guide has a notch groove with orientation.
Push it straight along the groove to make a joint.
(Push it until there is a feeling of coupling with a click sound.)
2. Float
The float has an orientation.
Insert it in the float case with its flat plane positioned on the right
as seen from worker side.
Be careful not to bend the bar of the float .
3. Float case guide
Put the float case guide in the guide groove section of the peep
window and fix it to the bed.
4. Peep window
Remove the window plate located behind the arm. It is fixed to the
arm.
5. Oil filter
The oil filter can be cleaned after removing the lubrication pipe
fixing ring and pulling out the lubrication pipe .
Part name Part No.
Float 40086648
To Next Page
