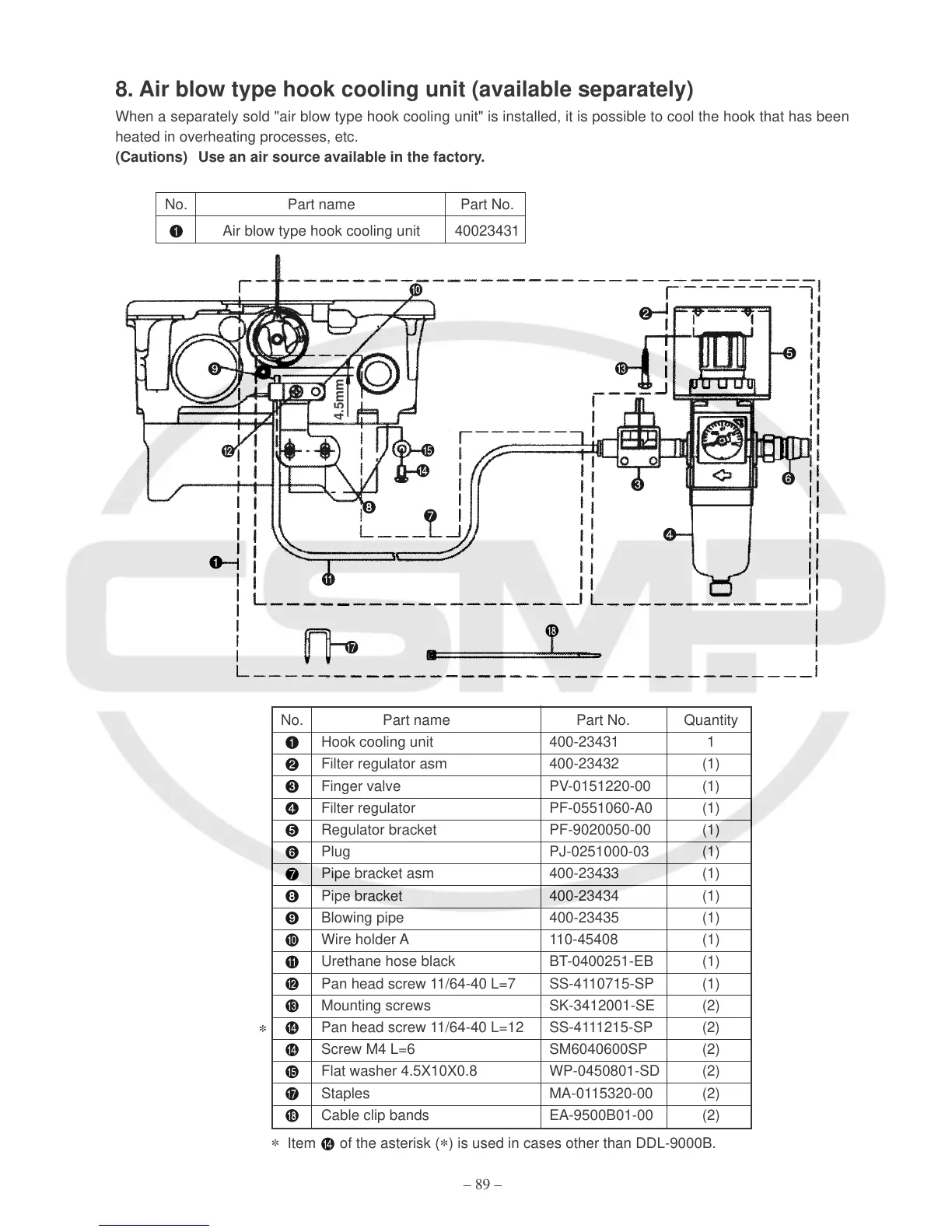

8. Air blow type hook cooling unit (available separately)
When a separately sold "air blow type hook cooling unit" is installed, it is possible to cool the hook that has been
heated in overheating processes, etc.
(Cautions) Use an air source available in the factory.
No. Part name Part No.
Air blow type hook cooling unit 40023431
No. Part name Part No. Quantity
Hook cooling unit 400-23431 1
Filter regulator asm 400-23432 (1)
Finger valve PV-0151220-00 (1)
Filter regulator PF-0551060-A0 (1)
Regulator bracket PF-9020050-00 (1)
Plug PJ-0251000-03 (1)
Pipe bracket asm 400-23433 (1)
Pipe bracket 400-23434 (1)
Blowing pipe 400-23435 (1)
Wire holder A 110-45408 (1)
Urethane hose black BT-0400251-EB (1)
Pan head screw 11/64-40 L=7 SS-4110715-SP (1)
Mounting screws SK-3412001-SE (2)
Pan head screw 11/64-40 L=12 SS-4111215-SP (2)
Screw M4 L=6 SM6040600SP (2)
Flat washer 4.5X10X0.8 WP-0450801-SD (2)
Staples MA-0115320-00 (2)
Cable clip bands EA-9500B01-00 (2)
