JUKI HZL-NX7 Service Manual

– 12 –

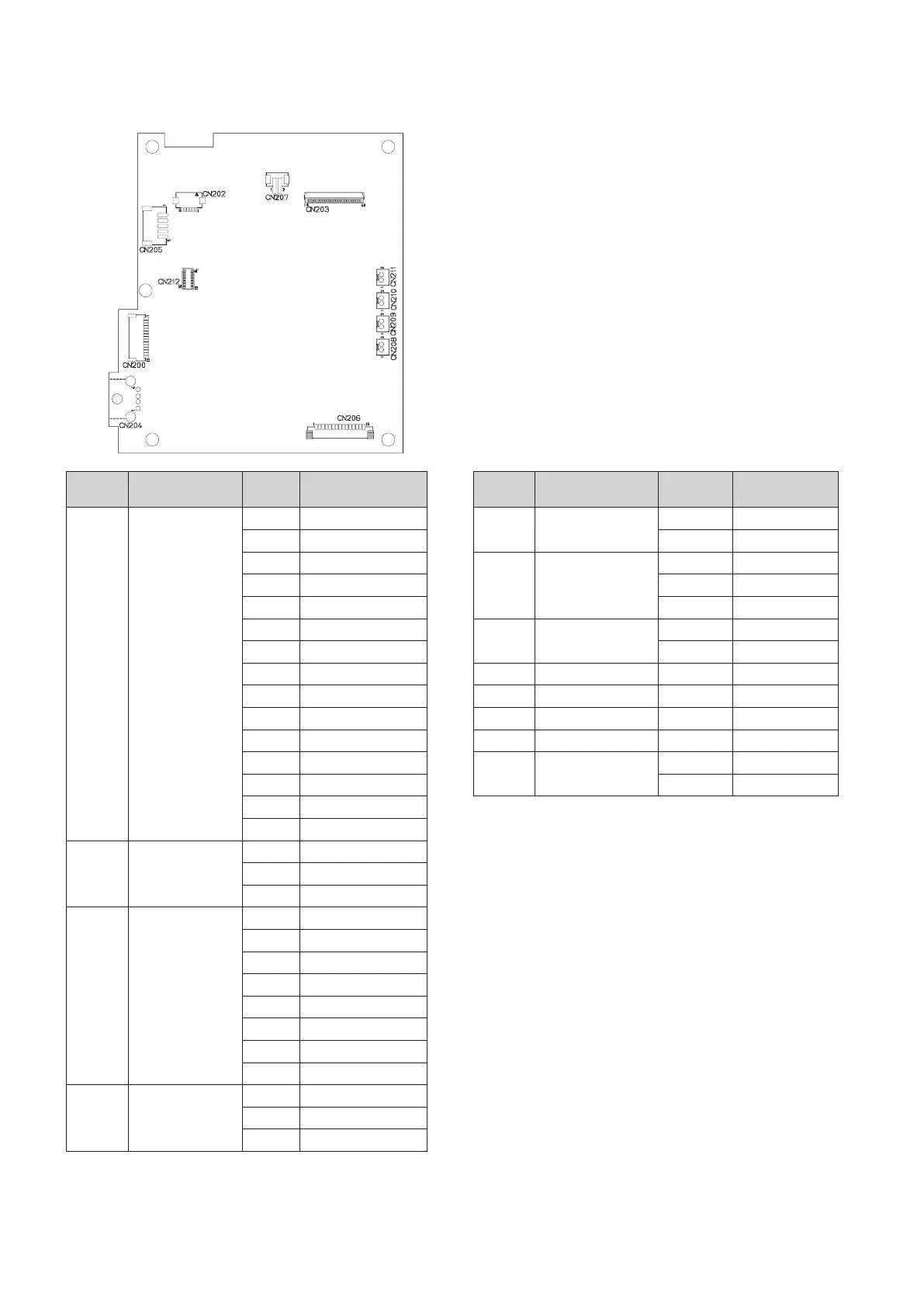

• Panel PCB
Connec-
tor No.
Destination
Terminal
No.
CN200 PanelI/Fcable
(asm.)
1 5V
2 5V
3 GND
4 GND
5 TXD
6 RXD
7 S.STATE
8 UDET
9 Reset
10 5V
11 5V
12 Panel detection signal
13 GND
14 GND
15 NC
CN202 Touch panel 1 3.3V
2 - 5 Touch panel signal
6 GND
CN203 LCD 1 - 4 NC
5 GND
6 NC
7 - 36 LCD signal
37 3.3V
38 GND
39 Backlight(+)
40 Backlight (-)
CN204 USB 1 5V
2 - 3 USB signal
4 GND
Connec-
tor No.
Destination Terminal No.
CN205 Reserve (Unused) 1 5V
5 GND
CN206 Write 10 GND
11 3.3V
12 - 14 GND
CN207 For external power
supply
1 5V
2 GND
CN208 On hand LED PCB 1 1 5V
CN209 On hand LED PCB 2 1 5V
CN210 Under arm LED PCB 1 5V
CN211 Under arm LED PCB 1 5V
CN212 Reserve (Unused) 5,8,22 - 24 3.3V
16,19 GND
CN207
CN203
CN202
CN211
CN210
CN209
CN208
CN206
CN212
CN205
CN200
CN204
