JUKI HZL-NX7 Service Manual

– 32 –
6-20-2 Adjusting the thread trimming switch
Adjustmentprocedure
 1.AdjustsothatthemicroswitchisturnedONwhenaclearanceof0.5mmisprovidedbetweentherearend
ofthemovingknifeandtheendofgrooveinthemechanismbase.Then,tightenthesetscrew.
 2.Checktomakesurethattheaforementionedclearancebecomes0.3mmto1mmorlesswhenthethread
trimmer operates and stops.

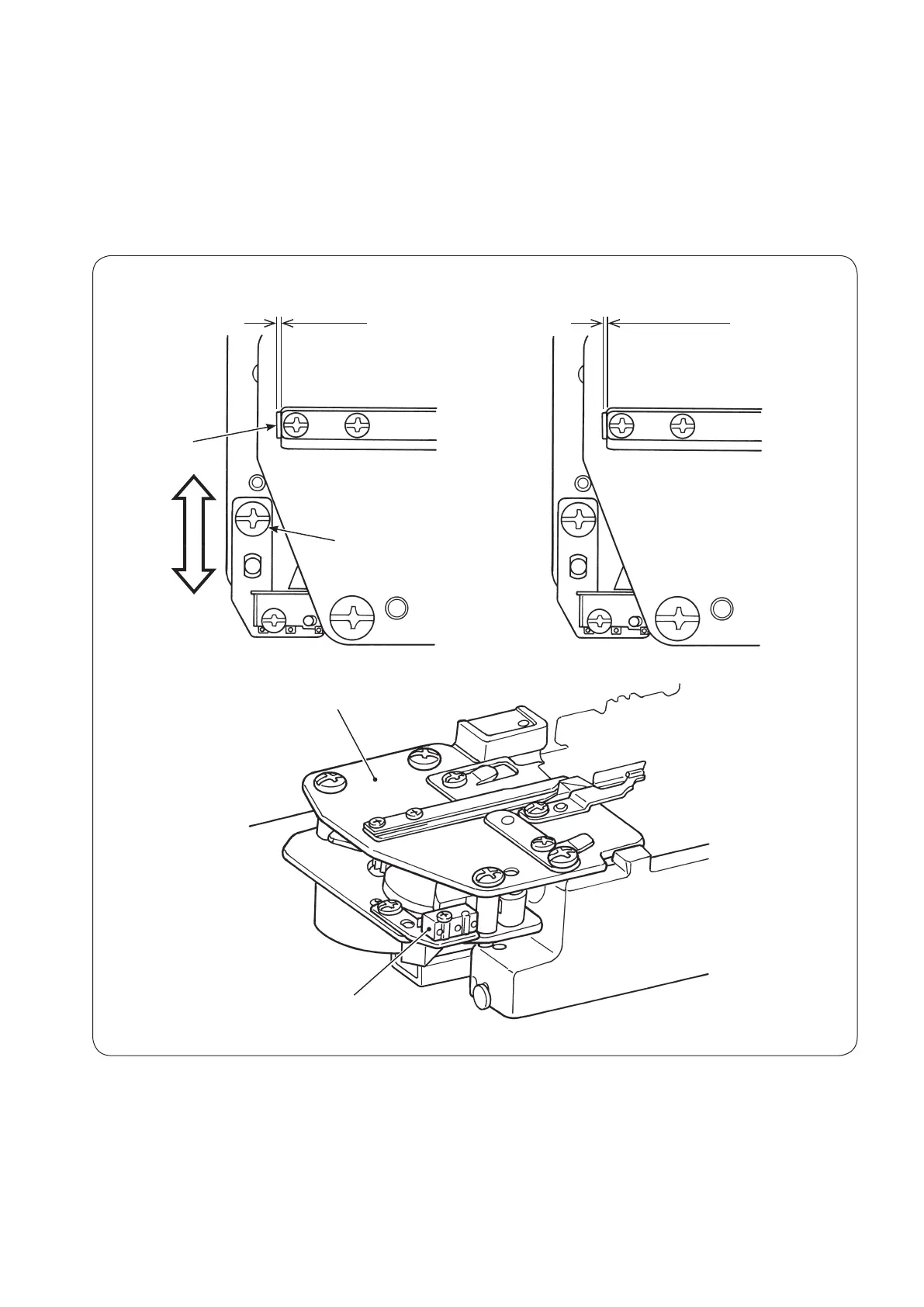

Micro switch
Thread trimmer unit
At the time of adjustment After the thread trimmer has operated
0.5 mm
0.3 to 1 mm
Clearance
Setscrew
