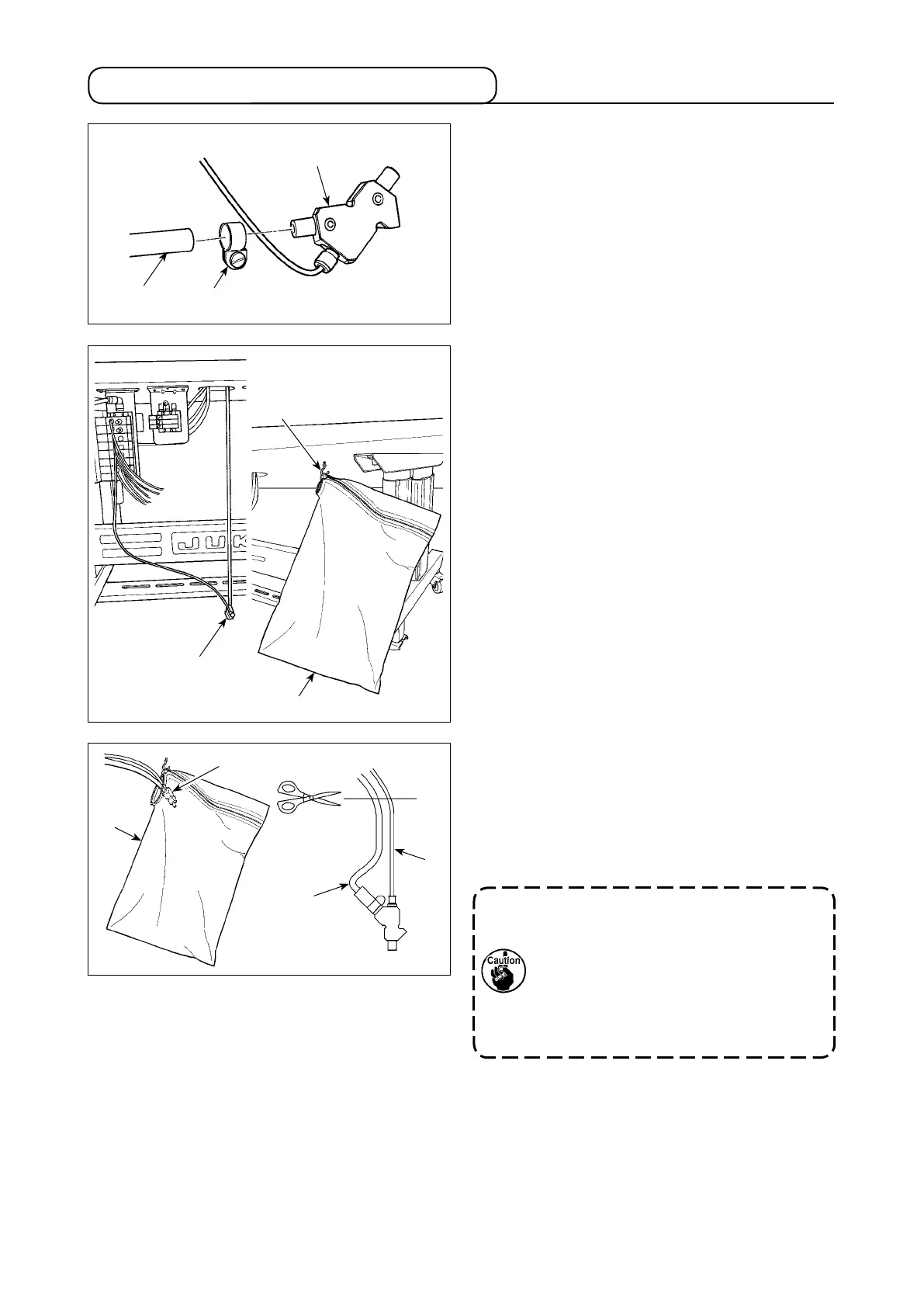

3-19. Installing the cloth chip bag
1) Connect cloth chip suction device ❶ and cloth chip
tube ❷. Fix them with hose band ❻.
2) Install suspension hook ❸ to an easy-to-access
location on the underside of the table.
3) Suspend cloth chip bag ❹ on suspension hook
❸.
4) Open the zipper of cloth chip bag ❹ to put cloth
chip suction device ❶ in it.
5) Place cloth chip suction device ❶ in the top part
of cloth chip bag ❹ and close the zipper.
Adjust the length of cloth chip tube ❷ by cutting it
short at the point immediately below the table.
If cloth chip tube ❷ is excessively long, cloth
chip tube ❷ can be clogged with cloth chips
since cloth chips can interrupt the air ow
from cloth chip suction device ❶.
Be sure to empty the cloth chip bag before
cloth chips in the bag reach the top of cloth
chip suction device ❶.
