– 24 –
@6
Setting of max. number of rotation of the sewing machine head (Function setting No. 96)
This function can set the max. number of rotation of the sewing machine head you desire to use.
Upper limit of the set value varies in accordance with the sewing machine head to be connected.
150 to Max. [rpm] <50 / rpm>
(Caution) This setting is prior to all of max. number of rotation.
@4
Function added to the needle up / down compensating switch (Function setting No. 93)
One stitch operation can be performed only when the needle up / down compensating switch is pressed at the
time of upper stop immediately after turning ON the power switch or upper stop immediately after thread trimming.
0 : Normal (Only needle up / down compensating stitching operation)
1 : One stitch compensating stitching operation (upper stop / upper
stop) is performed only when aforementioned changeover is made.
@3

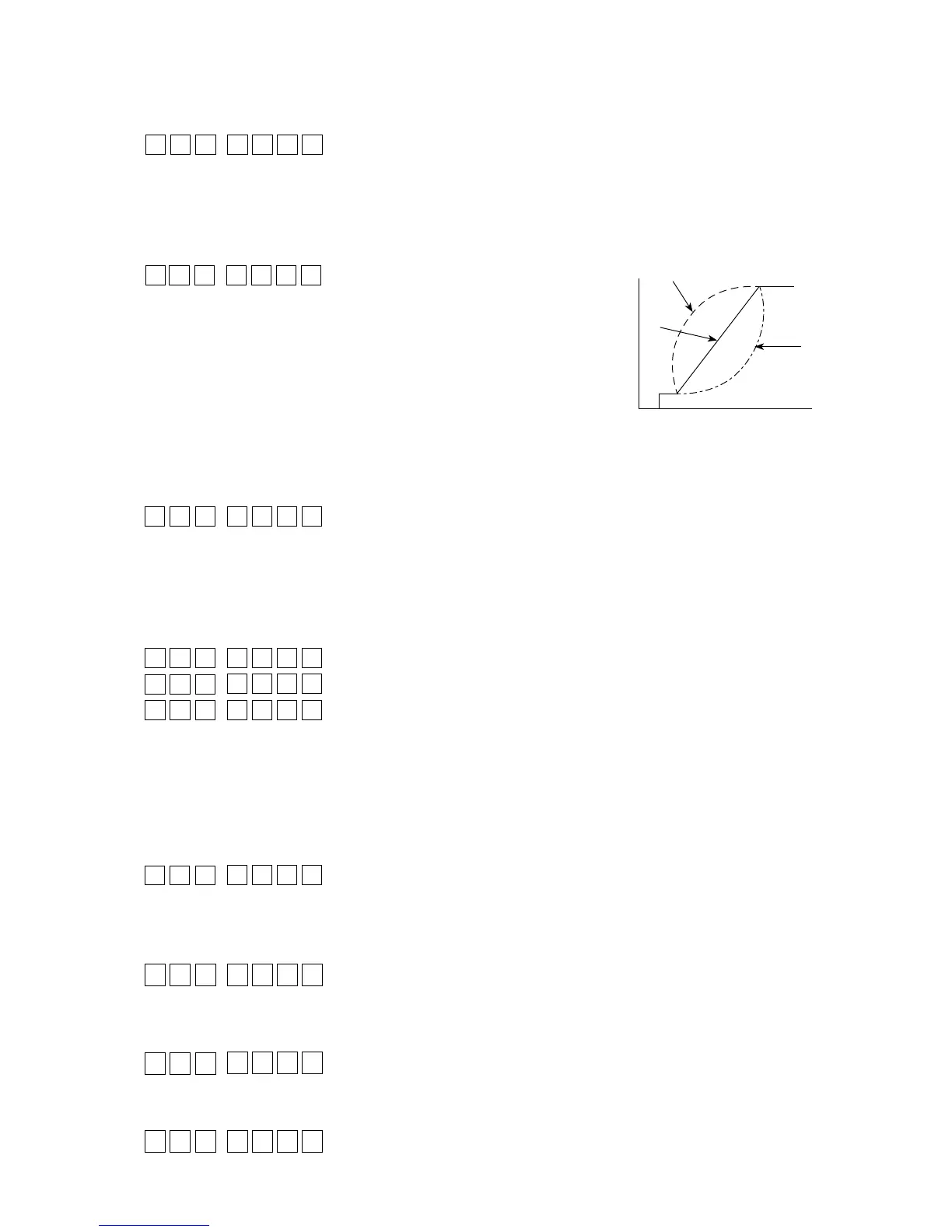

Function of pedal curve selection (Function setting No. 87)
This function can perform the selection of the curve of number of rotation of the sewing machine against
the depressing amount of the pedal.
Change to this function when you feel that inching operation is hard or that pedal response is slow.
0 : Number of rotation of the
sewing machine in terms of
the depressing amount of
the pedal increases linearly.
1 : Reaction to intermediate speed
in terms of the depressing
amount of the pedal is delayed.
2 : Reaction to intermediate speed in
terms of the depressing amount
of the pedal is advanced.
@2
Retry function (Function setting No. 73)
When the retry function is used, if the sewing material is thick and not pierced with needle, this function
makes the needle pierce in the material with ease.
0 : Normal
1 : Retry function is provided.
0
1
2
Number of
rotations
(rpm)
Pedal stroke (mm)
8 7
0
9 6
4 0 0 0
7 3
1
9 3
0
9 5
d L A M
@5
Head selection function (Function setting No. 95)
This function selects the machine head to be used.
The relation between the indication of 7-segment LED and the type is as follows.
(Caution) 1. For the types other than DS, be sure to use this function and use the machine after performing
the setting of machine head.
2. In case of DS type machine head, setting is automatically performed and it is not possible to
manually set.
9 5
d L A d
9 5
d L A H
DDL-9000A-SS/MA/MS
DDL-9000A-DS
DDL-9000A-SH
<Indication> <<Type of head>>
@7
Main shaft reference angle compensation (Function setting No. 120)
Main shaft reference angle is compensated
Setting range
– 35 to 35˚ <1 / ˚>
@8
UP position starting angle compensation (Function setting No. 121)
Angle to detect UP position starting is compensated.
Setting range
– 15 to 15˚ <1 / ˚>
@9
DOWN position starting angle compensation (Function setting No. 122)
Angle to detect DOWN position starting is compensated.
Setting range
– 15 to 15˚ <1 / ˚>
1 2 0
–
＊ ＊
1 2 1
5
1 2 2
＊
