JUKI SC-921 Setup Instructions

– 1-3 –

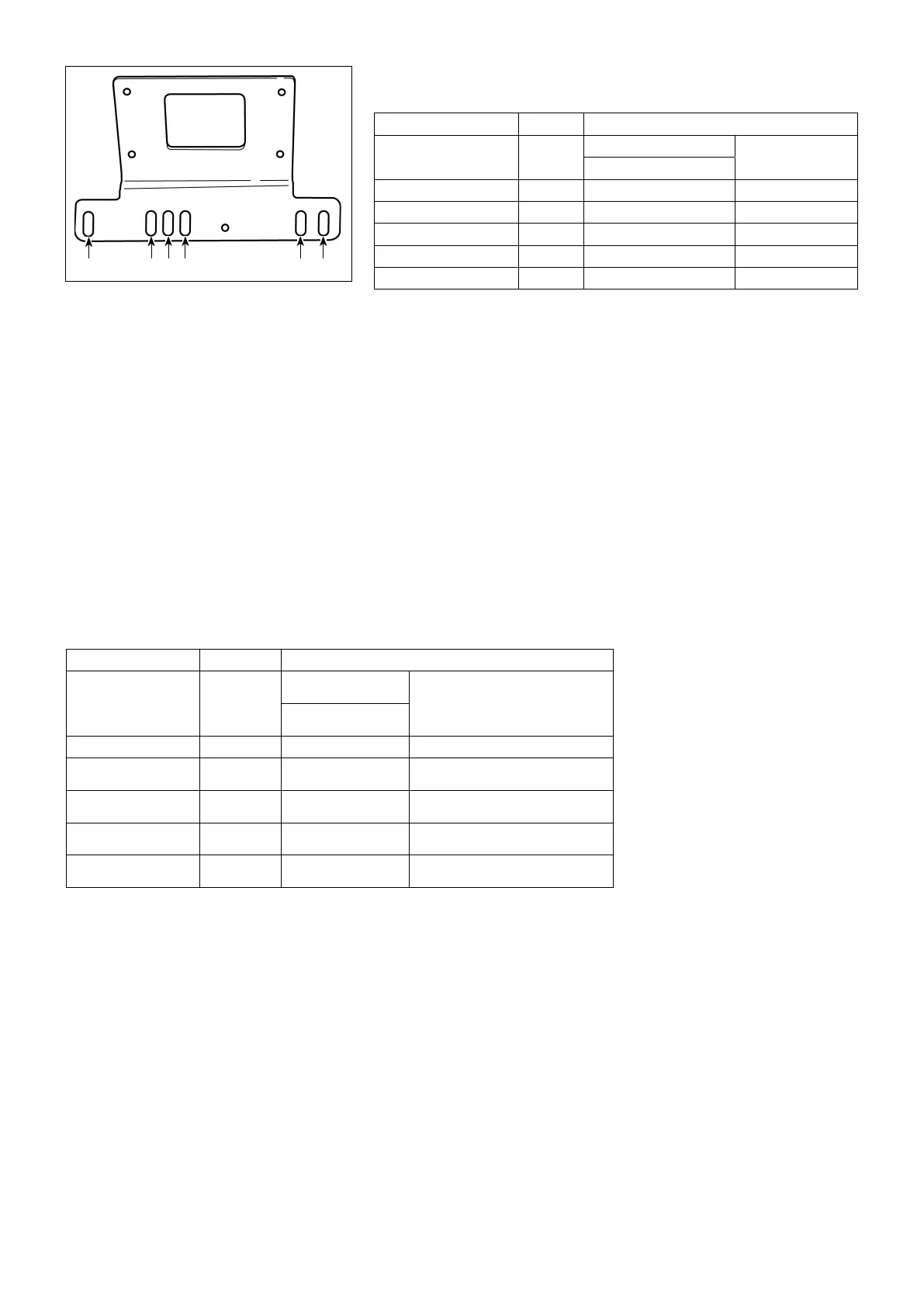

< The relation between the respective machine heads and the positions of installing hole of the
bracketareasdescribedinthetable.>

取付穴 ねじ
DDL-9000B 󰴤-󰴨
AK 付きM5 × 14
窓板ねじ
AK なしM5 × 12
LH-3500A 󰴥-󰴨 M5 × 14 窓板ねじ
DLN-9010 󰴥-󰴨 3/16-28L=12 パネル付属ねじ
DDL-8700 系 󰴦-󰴨 3/16-28L=12 パネル付属ねじ
DDL-5500 系
※1
󰴦-󰴨 3/16-28L=12 パネル付属ねじ
LZ-2280 系
※1
󰴦-󰴨 11/64-40L=7.8 頭部付属ねじ
表1
Table 1
Installing hole Screw
DDL-9000B
󰴤-󰴨
(Provided with AK)
M5 × 14
Side plate setscrew
(Not provided with AK)
M5 × 12
LH-3500A
󰴥-󰴨
M5 × 14 Side plate setscrew
DLN-9010
󰴥-󰴨
3/16-28 L=12
Screw supplied with panel as
accessories
DDL-8700 series
󰴦-󰴨
3/16-28 L=12
Screw supplied with panel as
accessories
DDL-5500 series
*1
󰴦-󰴨
3/16-28 L=12
Screw supplied with panel as
accessories
LZ-2280 series
*1
󰴦-󰴨
11/64-40 L=7.8
Screws supplied with machine
head
※1
DDL-5556、LZ-228* は、パネル取り付け用補助ブラケットを頭部に
付属しています。取り付けにあたっては、頭部側の取扱説明書を確認の上、
セットアップ願います
    
 
   
     
    
    
 
*1
For the DDL-5556 and LZ-228*,
the machine head is supplied
withanauxiliarybracketfor
mounting the control panel as
an accessory. Be sure to install
the bracket while referring to
the instruction manual for the
machine head.
(Caution) 1. Screws to be used for installing the panel differ with the machine head, i.e., screws supplied with
the panel as accessories and the side plate setscrews. Select appropriate screws/setscrews refer-
ring to Table 1.
2. If the screw type is not correct, the tapped hole can be collapsed.
3. If you want to install the panel on the DDL-8700, be aware that the method to install it on the ma-
chine head differs depending on whether or not the machine head is provided with the AK device.
Machine head with the AK device :
    InstallthepanelontheheadbracketsuppliedwiththeAK.(Theauxiliarybracketshouldbe
xedwiththesideplatesetscrews.)
Machine head without the AK device :
Remove the side plate setscrews and install the panel on the side plate using the screws sup-
plied with panel as accessories.
4. If you want to use the panel with the machine head for heavy-weight materials, install it referring to
the "Supplementary Instructions" for the machine head.
󰴤 󰴥 󰴨 󰴩󰴦󰴧
