– 10 –
[In case of using the power switch for LA]

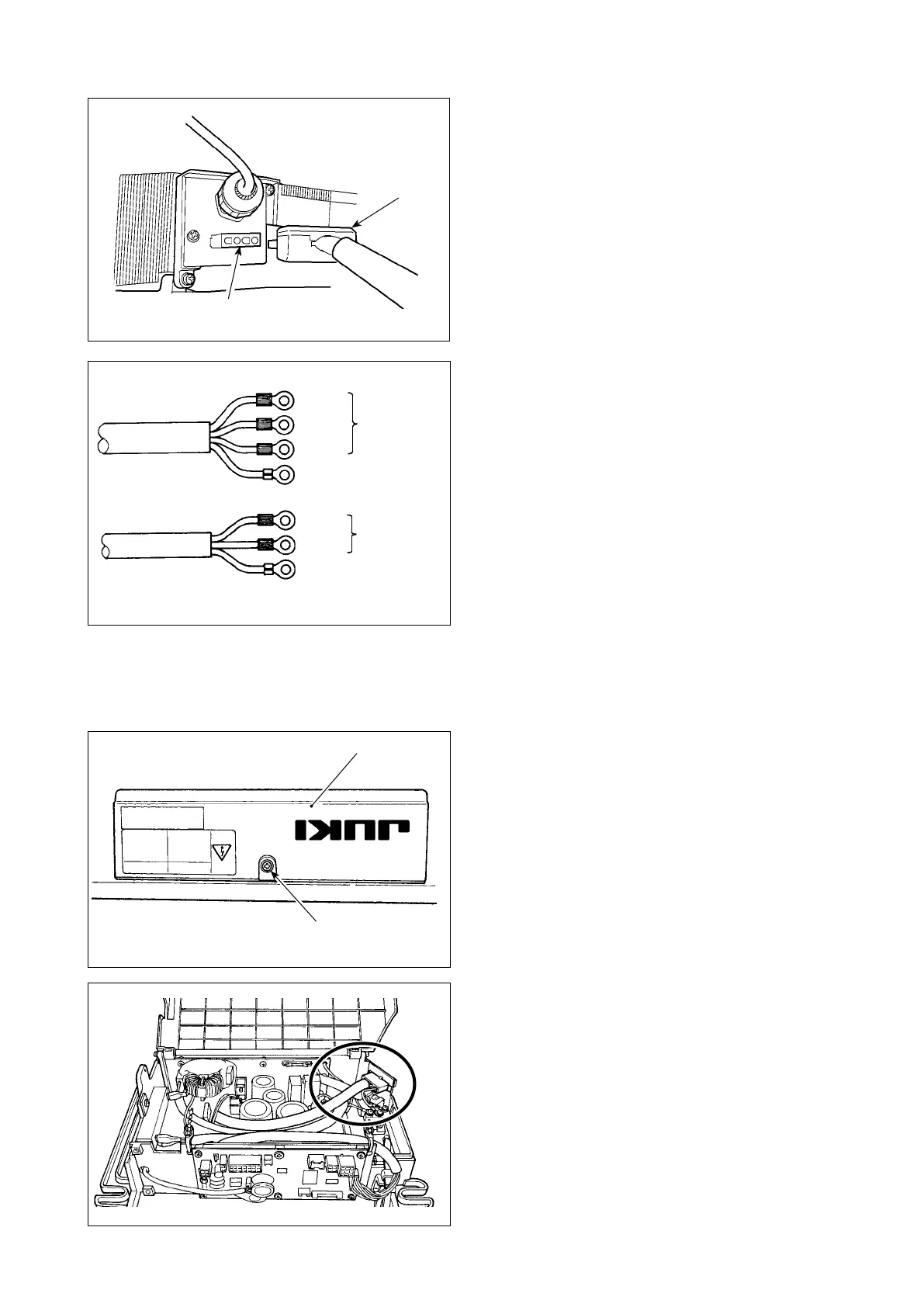

Connect motor output cord
@1
to connector
@2
locat-
ed on the side of the box.
Installing power switch
Connect power supply cord to the power switch.
[JAspecications]
3-phase 220 V : Power supply cords : black,
white, red and green/yellow
(ground wire)
Single phase 120V : Power supply cords : black,
white, and green/yellow (ground
wire)
JA 3ø 220V
AC
200V-240V
Black
Red
White
Green / Yellow
(ground wire)
JA 1ø 120V
AC
100V-120V
Black
White
Green / Yellow
(ground wire)
When the metallic conduit is used, be sure to change over the power cord section following the steps of pro-
cedure described below.
(Caution) Be sure to carry out this procedure before installing the control box on the machine table.
1
Place the control box with its frame side down on
the machine table as illustrated in the sketch.
2
Loosen screw
B
in underside cover
A
to open
the cover.
A
B
3
Change over the cord shown in the red-line circle
following the steps of procedure described below.
@1
@2
To Next Page
