JUKI SC-922 - Changing over the voltage between 100 V and 200 V (Part 3)

– 11 –
ENGLISH
4

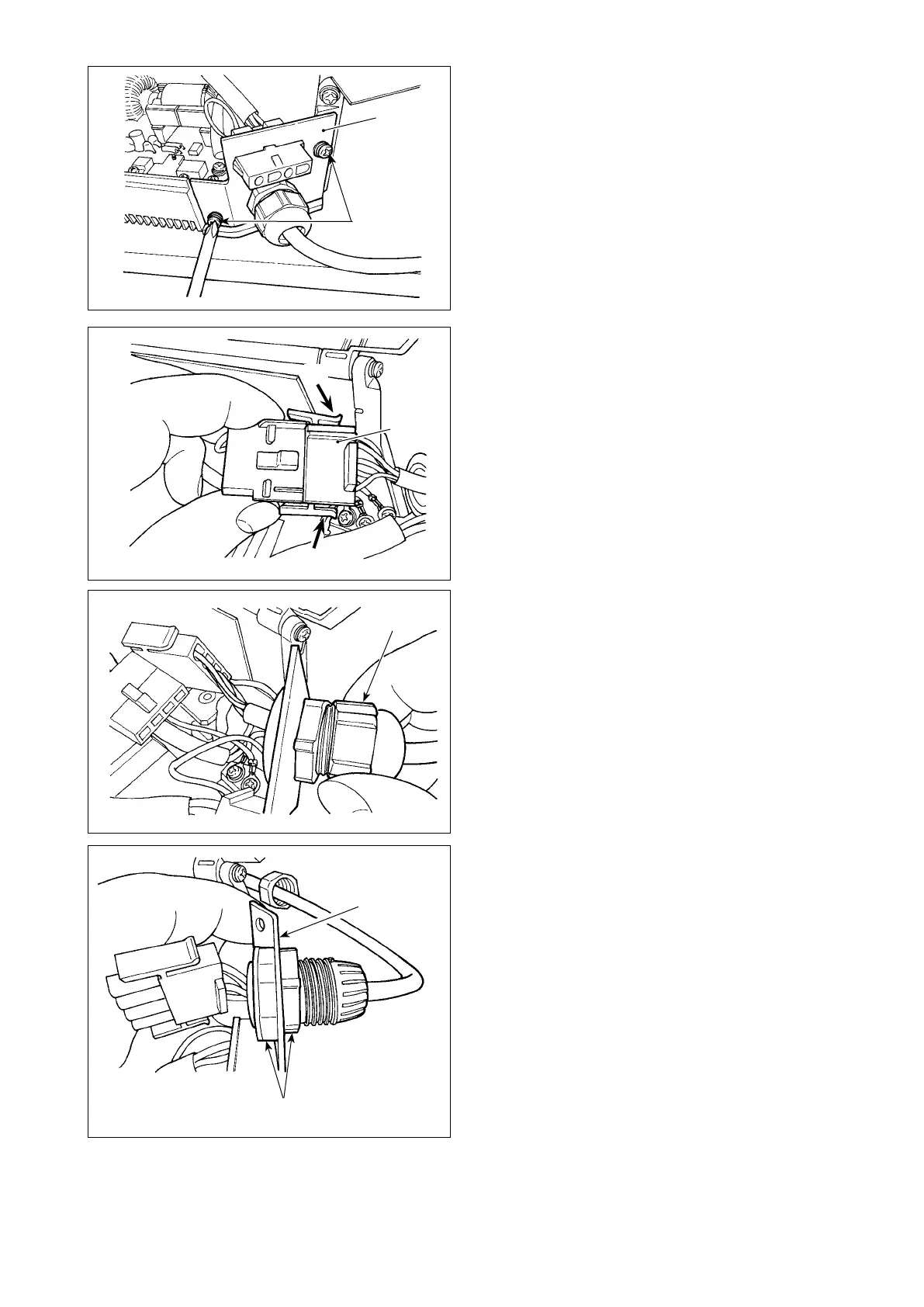

Remove two screws
C
to remove clamping plate
D
from the main body of the control box.
5
Remove connector
E
while holding its locking
section
F
with your ngers.
6
Turn connector
G
to remove the cord locking
section.
7
Loosen nut
H
to remove the connector from
clamping plate
D
.
C
D
E
F
F
G
H
D
