– 12 –
8

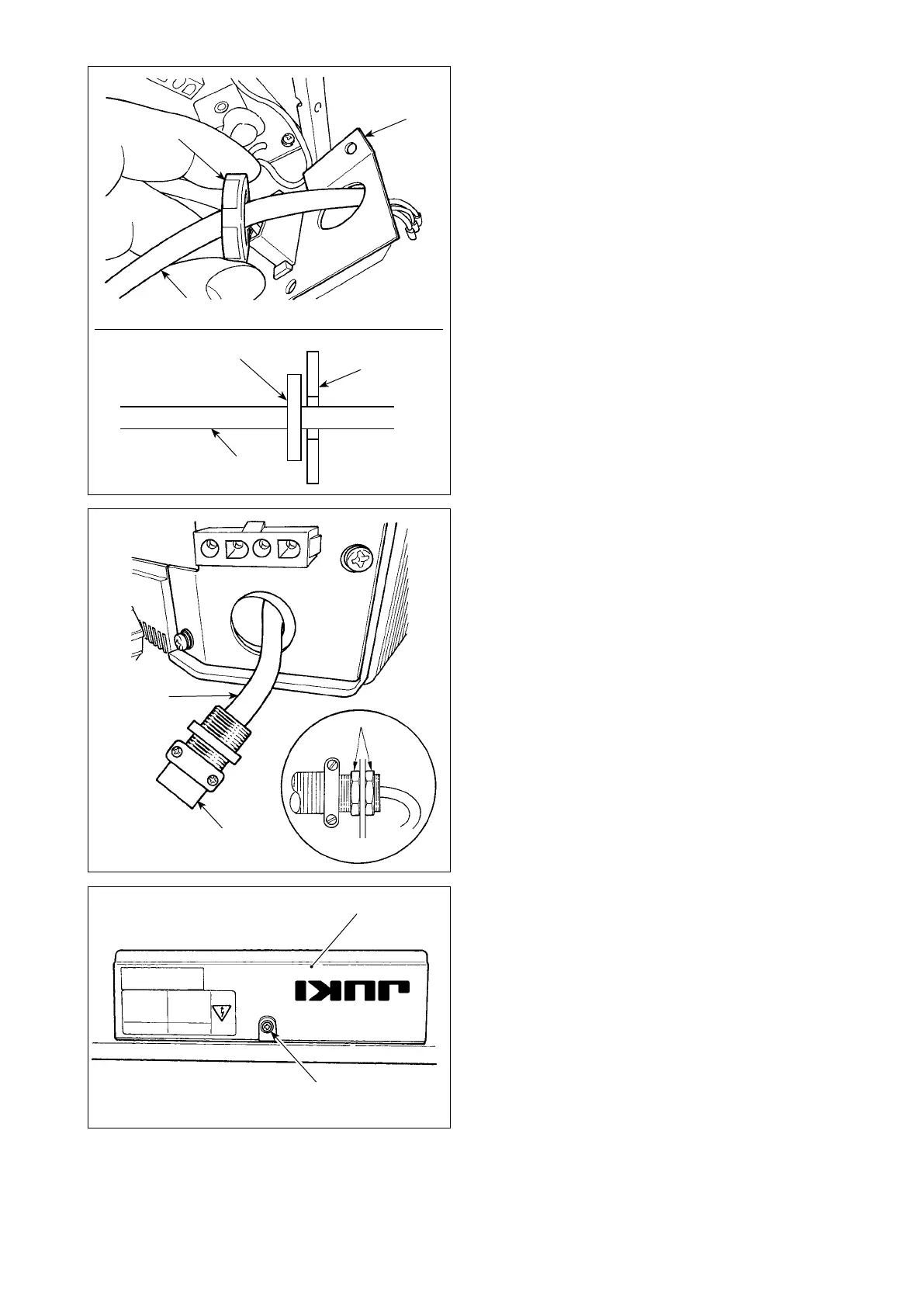

Put locknut
I
on the power cord and draw out
the cord
J
from inside clamping plate
D
.
9
Install clamping plate
D
back to the control box.
!0
Pass power cord
J
through conduit
K
.
!1
Fix conduit
K
with locknuts
I
with clamping
plate
D
placed between the locknuts.
!2
Close underside cover
A
and secure the cover
with screw
B
.
A
B
I
D
J
K
I
I
D
J
J
13
15
Table of Contents
Default Chapter
2
Table of Contents
2
Specifications
3
Set-Up
3
Installing to the Table
3
Installing the Motor Unit
4
Installing the Control Box
4
Installing the Belt
5
Adjusting the Pulley Cover
5
Installation and Adjustment for the Protecting Pin and the Belt Slip-Off Preventing Bracket
6
Connecting the Cords
7
Attaching the Connecting Rod
15
Setting Procedure of the Machine Head
16
Adjusting the Machine Head (Direct-Drive Motor Type Sewing Machine Only)
17
For the Operator
18
Operating Procedure of the Sewing Machine
18
Operation Panel (CP-18)
19
Operating Procedure of the Sewing Pattern
20
Reverse Feed StTchNg Pattern
20
Overlapped StTchNg Pattern
21
One-Touch Setting
22
Production Support Function
24
Setting of Functions of SC-922
27
Function Setting List
29
Detailed Explanation of Selection of Functions
35
Automatic Compensation of Neutral Point of the Pedal Sensor
49
Selection Of The Pedal Specifications
49
Setting of the Auto Lifter Function
50
Selecting Procedure of the Key-Lock Function
51
Initialization of the Setting Data
51
External Input / Output Connector
52
How to Connect the Material Edge Sensor
53
Maintenance
54
Removing the Rear Cover
54
Replacing the Fuse
54
Error Codes
55
Checking Procedure of the Error Code
56
Error Code List
56
