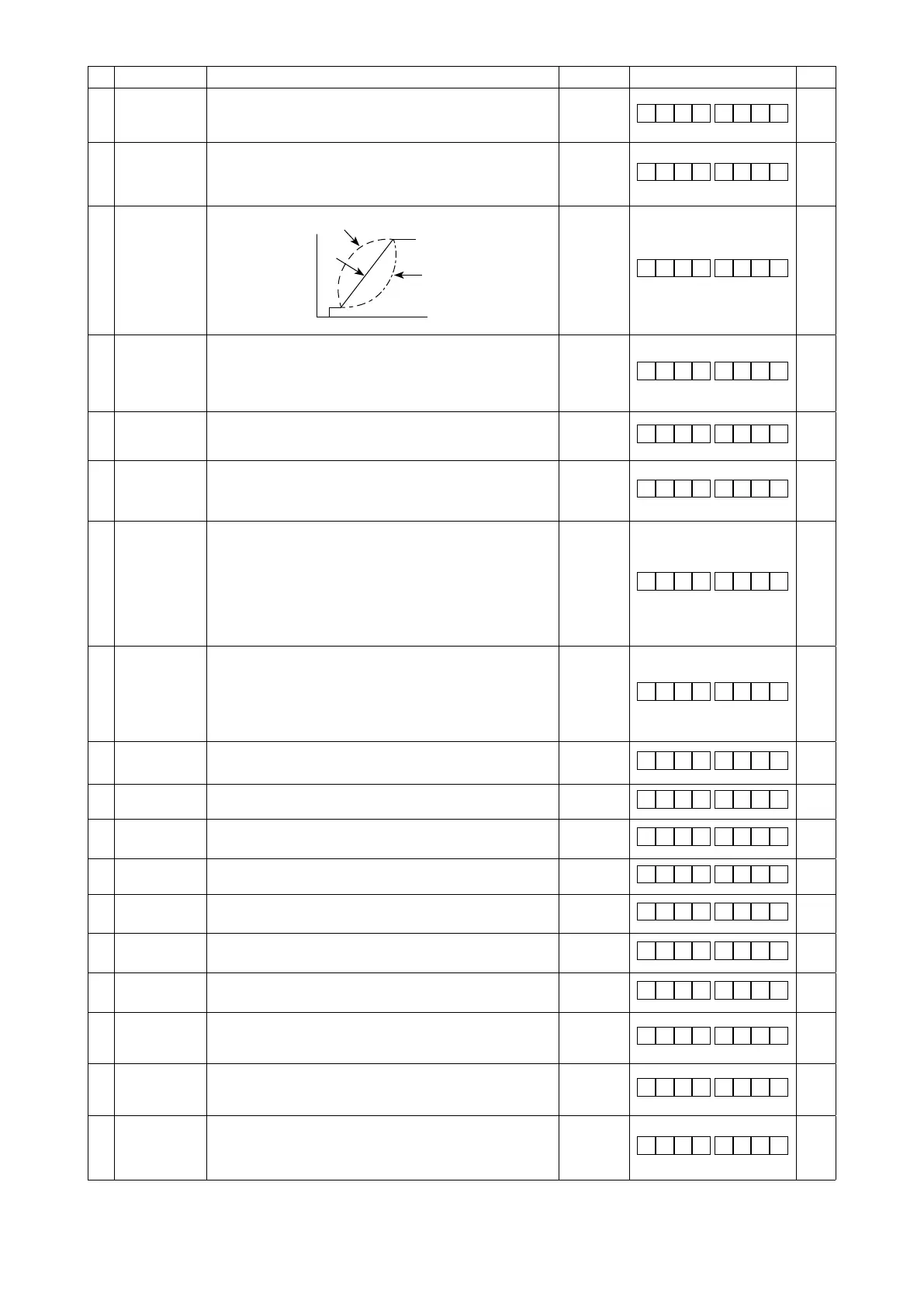

– 30 –
76
One-shot function
One-shot operation up to the material end is specied. (to be
used only with CP-18)
0 : One-shot operation is not performed.
1 : One-shot operation is performed.
0/1
7 6
0
33
*
84
Initial motion
suction time of
presser foot lifting
solenoid
Suction motion time of presser foot lifting solenoid
50 to 500
(ms)
8 4
2 5 0
42
87
Function of pedal
curve selection
Pedal curve is selected. (Improving pedal inching operation)
Number of rotations
Pedal stroke
2
0
1
0
/
1
/
2
8 7
0
42
90 Initial sewing-
machine travel
function
The function for automatically moving the sewing machine to a
specied position immediately after turning the power ON.
0 : The function is disabled
1 : Sewing machine is initially stopped with its needle up
2 : Sewing machine is initially rotated in the reverse direction
and stopped with its needle up
0 to 2
9 0
0
42
91
Function of prohibiting
compensation
operation after turning
handwheel by hand
It is effective in combination with the machine head provided
with tension release function.
0 : Tension release function is ineffective.
1 : Tension release function is effective.
0
/
1
9 1
1
92
Function of
reducing speed
of reverse feed
stitching at the
start of sewing
Function to reduce speed at the time of completion of reverse
feed stitching at the start of sewing.
0 : Speed is not reduced.
1 : Speed is reduced.
0
/
1
9 2
0
42
93
Function added to
needle up/down
compensating
switch
Operation of needle up/down compensating switch is changed
after turning ON the power or thread trimming.
0 : Normal (needle up/down compensating stitching only)
1 :
One stitch compensating stitching is performed only when
aforementioned changeover is made. (Upper stop
/
upper
stop)
2 : Needle-down function operates after thread trimming.
3 : Function of needle-down with operation of 2 plus presser
lowering operation and needle-up with thread trimming
operation is added.
0 to 3
9 3
0
43
94
Continuous +
One-shot nonstop
function
The function that does not stop the sewing machine by com-
bining continuous stitching with one-shot stitching using the
program sewing function which is available in the IP operation
panel.
0 : Normal (The sewing machine stops when a step is com-
pleted.)
1 : The sewing machine does not stop when a step is com-
pleted and proceeds to next step.
0
/
1
9 4
0
43
95
Head selection
function
Machine head to be used is selected.
(When the machine head is changed, each setting item is changed
to the initial value of the machine head.)
9 5
L U 5 1
96
Max. number of
rotation setting
Max. number of rotation of the sewing machine head can be set.
(The MAX value differs by machine head.)
150 to MAX
(sti/min)
9 6
3 0 0 0
43
103
Needle cooler
output OFF
delay time
Delay time from the stop of sewing machine to the output OFF is
specied using the needle cooler output function.
100 to
2000 (ms)
1 0 3
5 0 0
109
LED lamp
dimmer setting
Changes the output voltage of the machine head LED (5 V out-
put in the case 100 % is set)
0 to 100
(%)
1 0 9
1 0 0
120
Main shaft
reference angle
compensation
Main shaft reference angle is compensated.
–60 to 60
(°)
1 2 0
0
43
121
Up position
starting angle
compensation
Angle to detect UP position starting is compensated.
–15 to 15
(°)
1 2 1
0
43
122
DOWN position
starting angle
compensation
Angle to detect DOWN position starting is compensated.
–15 to 15
(°)
1 2 2
0
43
124
Setting of
energy-saving
function during
standby
Setting to reduce the power consumption while the sewing ma-
chine is in standby state
0 : Energy-saving mode is ineffective
1 : Energy-saving mode is effective
0
/
1
1 2 4
0
43
144
Alternate
up/down output
cancelling stitch
number setting
Sets the number of stitches to be sewn before the alternate up/
down output is automatically cancelled
0 : Disabled
1 - 30 stitches
0 to 30to 30
(Stitches)
1 4 4
0
43
146
Alternate
up/down output
selection after
thread trimming
Selects the status of the alternate up/down output to be forcibly
output after thread trimming
0 : Output status is remained
1 : OFF is output
2 : ON is output
0 to 2to 2
1 4 6
0
43
No
Item Description
Setting range
Indication of function setting
Ref. page
* Do not change the set values with asterisk (
*
) mark as they are functions for maintenance. If the standard set value set at the
time of delivery is changed, it is in danger of causing the machine to be broken or the performance to be deteriorated.
If it is necessary to change the set value, please purchase the Engineer’s Manual and follow the instructions.
To Next Page
