– 7 –
ENGLISH
(Caution) Be sure to securely insert the respective connectors after checking the inserting directions
since all connectors have the inserting directions. (When using a type with lock, insert the con-
nectors until they go to the lock.) The sewing machine is not actuated unless the connectors
are inserted properly. In addition, not only the problem of error warning or the like occurs, but
also the sewing machine and the control box are damaged.

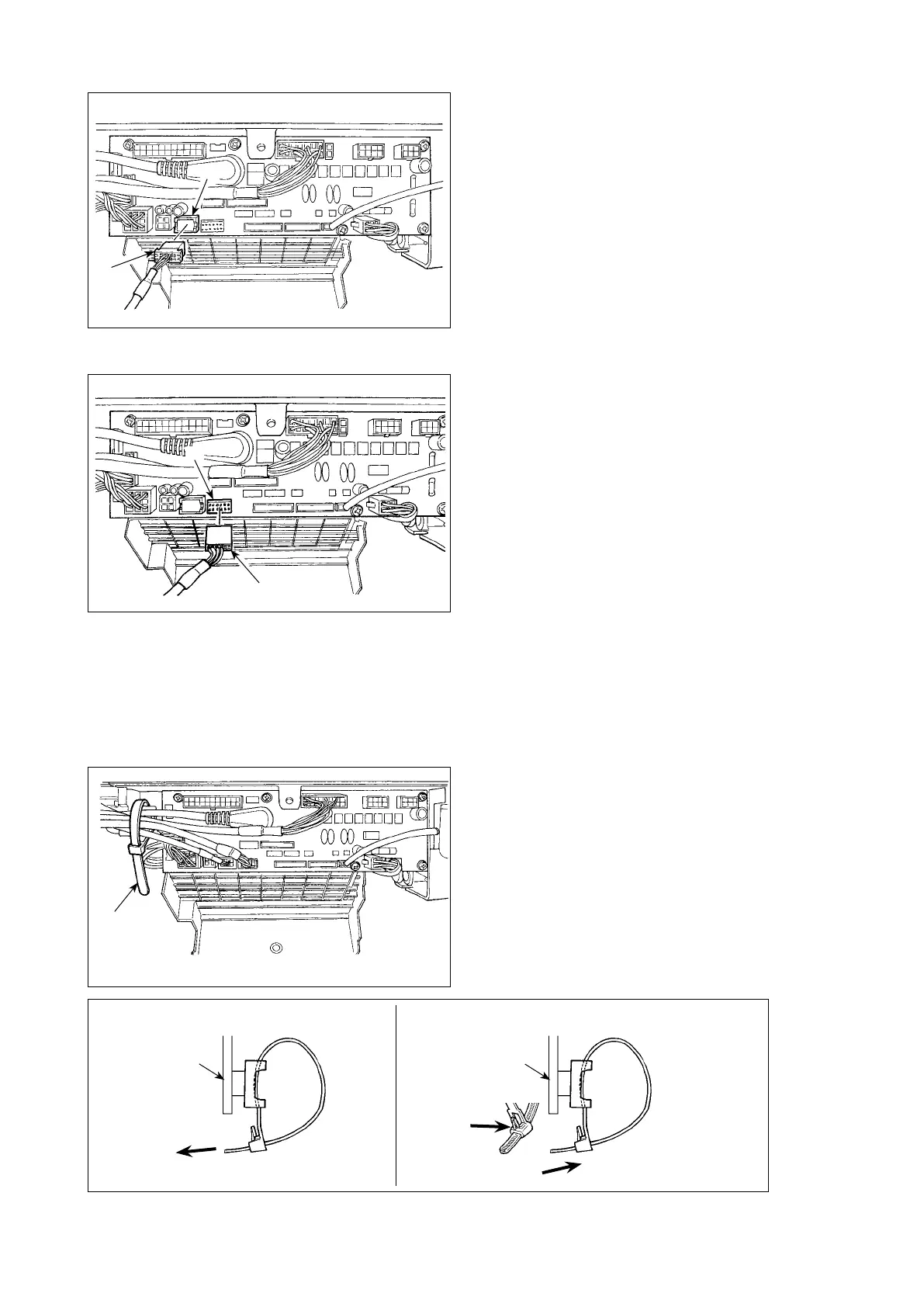

[Connecting the connector for the operation panel]
5) The connector for the operation panel is provided.
Paying attention to the orientation of the connec-
tor
!2
, connect it to connector (CN38)
!3
located
on the circuit board. After connecting, securely
lock the connector.
(Caution) Be sure to turn OFF the power before
connecting the connector.
!2
!3
[ Connection of the pedal of standing-work machine ]
6) To use the pedal unit with the sewing machine
for standing work, insert PK70 connector
!4
into
connector
!5
(CN39: 12P) on the PCB.
(Caution) Be sure to turn OFF the power before
connecting the connector.
!5
!4
7) After inserting the connector, put all cords togeth-
er with cable clip band
!6
located on the side of
the box.
(Caution) 1. Fix the cord clamp and the cable clip
band following the attaching proce-
dure.
2. When removing the connector, re-
move it from the wire saddle and
remove it while pressing the hook of
the cable clip band.
!6
[How to bundle all cords]
Howtoxcableclipband
How to remove cable clip band
P u s h i n g t h e
hook portion,
push the band
to remove it.
Pull
Push
Push the
hook.
Panel
Panel
To Next Page
